YG-1 R7400

B00F8Z3A9A

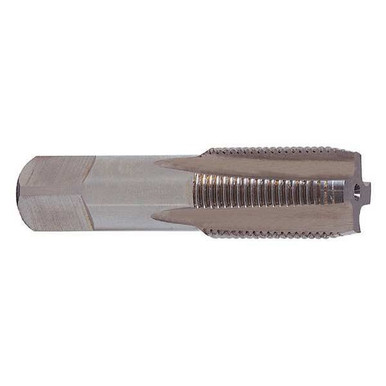

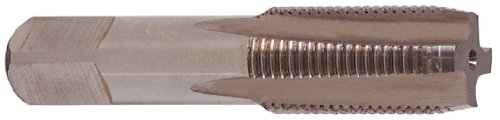

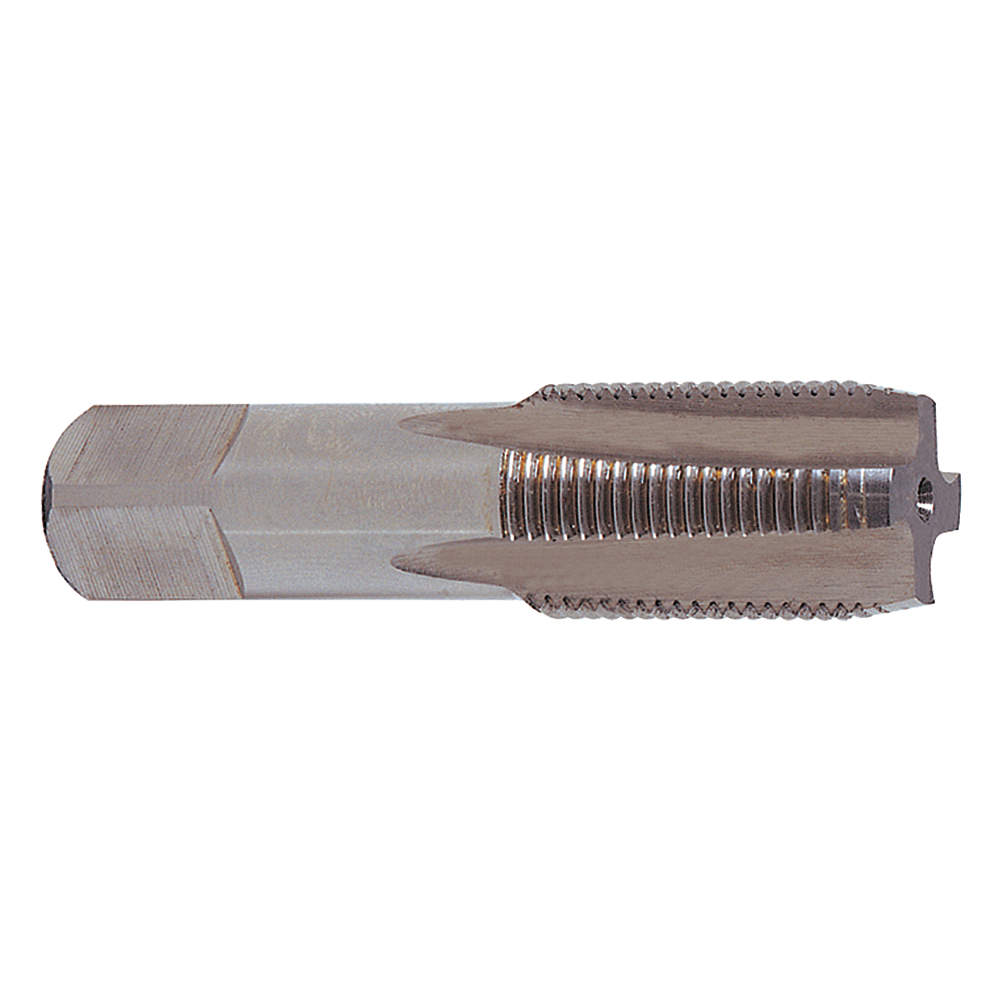

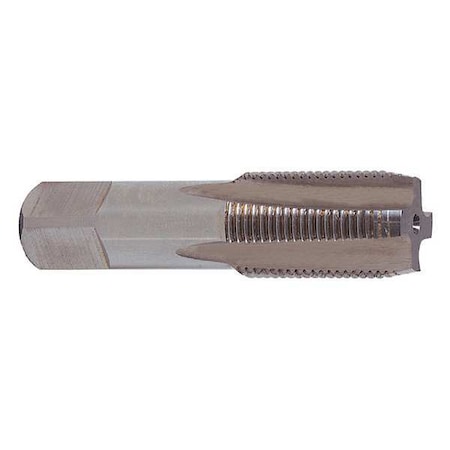

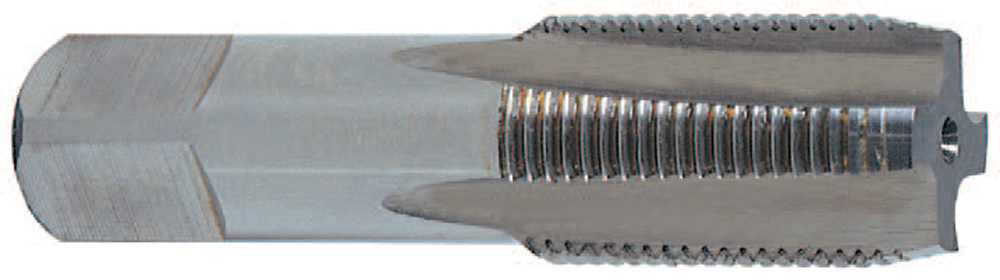

YG-1 R7 Series Vanadium Alloy HSS Straight Flute Taper Pipe Tap, Uncoated (Bright) Finish, Round Shank with Square End, Taper Chamfer, 1/4"-18 Thread Size

YG-1 R7 Series Vanadium Alloy HSS Straight Flute Taper Pipe Tap, Uncoated (Bright) Finish, Round Shank with Square End, Taper Chamfer, 1/4"-18 Thread Sizezoom

Attributes

Key Value
75% Thread Drill Size0.4375 in
Blank Standard311
BrandYg-1 Tool Co
Chamfer Length2P-3P
Chamfer TypeModified Bottoming
Connection (in)0.5625 x 0.421
Connection (mm)14.29 x 10.69
Coolant FedCoolant Through
Current Stock24
Cutting Direction - Mac.Right Hand
Diameter (inch)0.25
Diameter (metric)6.35
Drill Size (inch)0.4375
Drill Size (mm)11.11
Extended NeckYes
FinishBright
Helix Angle0 Degrees, 0
International ShippingNo
ItemPipe Tap
Length/ Diameter2.0 x D
List NumberR7
MaterialHSSE-V3
Material Grade - Machin.R7
Measurement SystemFractional Inch
MpnR7400
Number of Flutes4
Number of Pieces1
OAL (inch)2.44
OAL (metric)62
Overall Length2-7/16"
Package (H)0.75
Package (L)2.75
Package (W)0.75
Pitch18
Pitch Diameter LimitNot Rated
Primary Material Applic.Cast Iron, Steel
Primary Material Applic.K, P
SeriesR7
Shank Dia.0.562"
Shank Length1 1/8 in
Shank TypeSquare
Shk. Dia. (inch)0.5625
Shk. Dia. (metric)14.29
Size1/4 X 18
Size & Pitch43104
SKUZO-G9247165
Spiral DirectionNeutral
Sqr. Lgth. (inch)0.44
Sqr. Lgth. (metric)11.18
Sqr. Size (inch)0.421
Sqr. Size (metric)10.69
StandardsNPTF
SubCategoryMachining/Threading
System of MeasurementInch
Tap ChamferTaper
Tap Dimension TypePipe
Tap FinishBright
Tap GroupingTap
Tap Length StandardANSI
Tap MaterialVanadium High Speed Ste.
Tap Shank StandardANSI
Tap Size1/4"
Tap StylePipe
Tap Thread Size1/4"-18
Tap Thread TypeNPT
Tap TypePipe
Thd. Lgth. (inch)1.06
Thd. Lgth. (metric)26.9
Thread DirectionRight Hand
Thread Length1-1/16"
Thread SeriesNPTF
Thread Size1/4"-18
Thread StandardNPTF
Threads per Inch18
Trade NameYG Pipe Taps
Useable Length (in)1.06
Useable Length (mm)26.92
Weight0.124

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomZoroG924716520.151In StockYg-1 Tool Co0.120.15 @ 1
thumbzoomSuncoast ToolsR740023.1612Y.G-1 TOOL CO.0.12523.16 @ 1
thumbzoomsimsupply.comZO-G924716527.69124Yg-1 Tool Co27.69 @ 1
thumbzoomsustainablesupply.comC140345129.211In StockYG-1 Tool0.129.21 @ 1
thumbzoomRaptor SuppliesAG3QWX41.50955251In StockYG-1 TOOL COMPANY41.5095525 @ 1
