brand:
manufacturer:
Description:

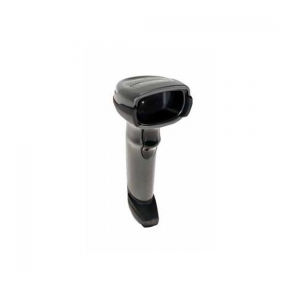

Symbol DS4308-SR - barcode scanner, Barcode & Handheld Scanners, Printers, Scanners & Print Supplies, DS4308-SR00007PZWW
Weight:
0.3564
Weight:
2.0 LB
Preferred Price:
457.38
Price:
457.38
Min Simple Price:
258.41
Absolute Min Price:
366.94
Min Price:
366.94
Dimensions:
[1.0, 1.0, 1.0]
qty:
21
simpleSku:
jI4NTg:::DS4308-SR00007PZWW
sku:
jI4NTg::VX:DS4308-SR00007PZWW@y0
condition:
11
seller:
PCNation
amzMan:
zebra
HazMat:
False
DropShip:
True
Attributes
| Key ^ | Value |
|---|---|
| 1D | UPC/EAN, UPC/EAN with supplementals, Bookland EAN, ISSN, UCC Coupon Extended Code, Code 128, GS1-128, ISBT 128, Code 39, Code 39 Full ASCII, Trioptic Code 39, Code 32, Code 93, Code 11, Matrix 2 of 5, Interleaved 2 of 5, Discrete 2 of 5, Codabar, MSI, Chinese 2 of 5, GS1 DataBar variants, Korean 3 of 5, ISBT Concat |
| 2D | PDF417, MicroPDF417, Composite Codes, TLC-39, Data Matrix, Maxicode, QR Code, MicroQR, Aztec, Han Xin |
| Ambient Light Immunity | mmune to normal indoor lighting up to 1600 Lux; immune to sunlight up to 86,000 Lux |
| Barcode Dimension | 1D, 2D |
| Brand Name | Zebra |
| Code Type | 2D |
| Color | Twilight Black |
| Connectivity | USB, RS-232, Keyboard Wedge, RS-485 (IBM 46xx) |
| Connectivity Technology | Cable |
| Dimensions | 6.48 in. H x 3.86 in. L x 2.64 in. W 16.5 cm H x 9.8 cm L x 6.7 cm W) |
| Drop Specification | Withstands multiple 6 ft./1.83 m drops to concrete |
| Durability | General Purpose |
| Environmental | Compliant with RoHS directive 2011/65/EU |

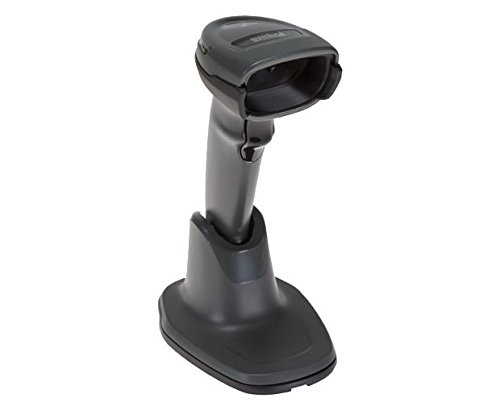

| Features/Includes | Presentation Stand |
| Form Factor | Corded |
| Geographical Availability | World Wide |
| Height | 6.5 |
| Humidity | 5% to 95%, non-condensing |
| Image Sensor Type, Scanner Type | Imager |
| Imager Field of View | 0 - 360? ? 65? or greater ? 60? or greater |
| Interfaces Supported | USB, RS232, Keyboard Wedge, RS485 (IBM 46xx) , SSI The scanner supports the following protocols over USB: HID Keyboard (default mode), SNAPI, IBM SurePOS (Yellowstone) (IBM Handheld, IBM Tabletop, OPOS), USB CDC, SSI over USB CDC, Toshiba TEC The scanner supports the following protocols over RS232: Standard, Wincor Nixdorf, ICL, Fujitsu, Olivetti, Omron and CUTE |
| Length | 3.9 |
| Light Source | Aiming pattern: 617 nm LED Illumination: 660 nm LEDs |
| Manufacturer | Zebra Technologies Corporation |
| Manufacturer Part Number, MFG Part Number | DS4308-SR00007PZWW |
| Manufacturer Website Address | http://www.zebra.com |
| Minimum Resolution | SR: Code 39 4 mil, UPC 60% 7.8 mil, PDF417 5 mil, Datamatrix 7.5 mil HD: Code 39 3 mil, UPC 60% 7.8 mil, PDF417 4 mil, Datamatrix 5 mil |
| Motion Tolerances | Up to 30 in. / 76.2 cm per second |
| null | null |
| Operating Temp. | 32? F to 122? F/0? C to 50? C |
| Postal | Australian Post, US PLANET, Royal Mail 4 State Customer, US POSTNET, KIX Code (Dutch), UK Postal, Japan Post, UPU 4 State Postal FICS (Post US4), USPS 4 State Postal (Post US3), Canadian Post (Postbar) |
| Power | 5 VDC ? 10% at 360 mA (RMS typical) |
| Print Contrast | 20% minimum reflective difference |
| Product Family | DS3408-SR |
| Product Model | DS4308-SR |
| Product Name | DS4308-SR Handheld Barcode Scanner |
| Product Type | Handheld Barcode Scanner, Barcode Scanner |
| Scanner Range | Short Range |
| Storage Temp. | -40? F to 158? F/-40? C to 70? C |
| Weight (Approximate) | 5.71 oz |
| Weight (w/o cable) | 5.71 oz. / 162 g |
| Width | 2.6 |
| ZebraDS4308-SR_HD_DLSpecSheet.pdf | https://www.advanced-automationinc.com/content/product_downloads/zebra/ZebraDS4308-SR_HD_DLSpecSheet.pdf |
All Prices
| Img | Seller | Supplier SKU | Requested Price ^ | Calc MOQ Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|---|---|---|---|---|---|---|---|---|---|
 | PCNation | VS3908 | 258.41 | 258.41 | 1 | In Stock | ZEBRA | 2.0 | 258.41 @ Qty: 1+ | |
 | advanced-automationinc.com | DS4308-SR00007PZWW | 288.73 | 288.73 | 1 | In Stock | Zebra | 288.73 @ Qty: 1+ | ||
| CDW | 3875637 | 311.0 | 311.0 | 1 | In Stock | Zebra Enterprise | 311.0 @ Qty: 1+ | |||
 | usmegastore.com | DS4308-SR00007PZWW | 437.08 | 437.08 | 1 | In Stock | Zebra | 0.356875 | 437.08 @ Qty: 1+ |
