Zilog Z86E0812PSG1866

B07347HGZK

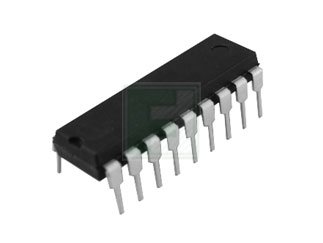

ZILOG Z86E0812PSG1866 Z86E08 Series 125 B RAM 12 MHz CMOS Z8 OTP Microcontroller - DIP-18 - 5 item(s)

ZILOG Z86E0812PSG1866 Z86E08 Series 125 B RAM 12 MHz CMOS Z8 OTP Microcontroller - DIP-18 - 5 item(s)zoom

Attributes

Key Value
A/D Bit SizeNo ADC
Alternate Part No.692-Z86E0812PSG1866
BrandZilog
Connectivity-
CoreZ8
Core ProcessorZ8
Core Size8-Bit
Data Bus Width8 bit
Data Converters-
Data RAM Size125 B
Data ROM Size2 kB
Data ROM TypeOTP
EEPROM Size-
ManufacturerZilog
Manufacturer Part No.Z86E0812PSG1866
Maximum Clock Frequency12 MHz
Maximum Operating Tempe.+ 70 C
MfrZilog
Minimum Operating Tempe.0 C
Mounting StyleThrough Hole
Mounting TypeThrough Hole
Number of I/O14
Number of I/Os14 I/O
Number of Timers2 Timer
On-Chip ADCNo
Operating Supply Voltage4.5 V to 5.5 V
Operating Temperature0?C ~ 70?C (TA)
Oscillator TypeInternal
Package / Case18-DIP (0.300", 7.62mm)
Package/CasePDIP-18
PackagingTube
Part StatusActive
PeripheralsPOR, WDT
Processor SeriesZ86E08x
Product Category8-bit Microcontrollers .
Program Memory Size2KB (2K x 8), 2 kB
Program Memory TypeOTP
RAM Size125 x 8
SeriesZ86E0812
Speed12MHz
Supply Voltage - Max5.5 V
Supply Voltage - Min4.5 V
Voltage - Supply (Vcc/V.4.5V ~ 5.5V

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
HotendaH23079092.363618207Zilog2.3636 @ 50
Bristol ElectronicsZ86E0812PSG18662.912150ZILOG2.912 @ 50
RS Delivers169-82243.10682050Zilog3.1068 @ 50
swatee.comZ86E0812PSG18664.2611014ZiLOG4.26 @ 50
