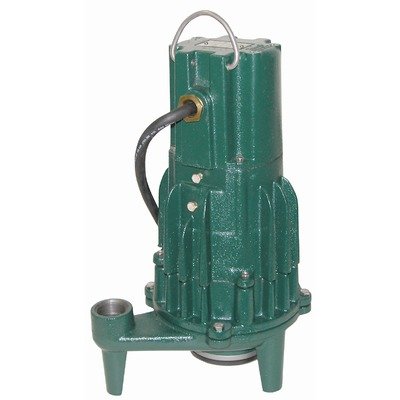

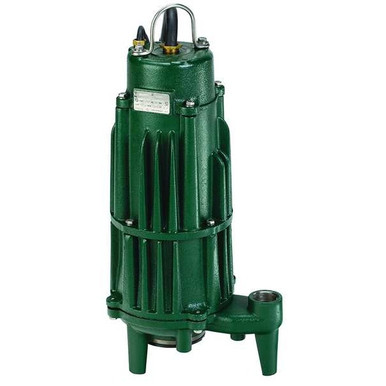

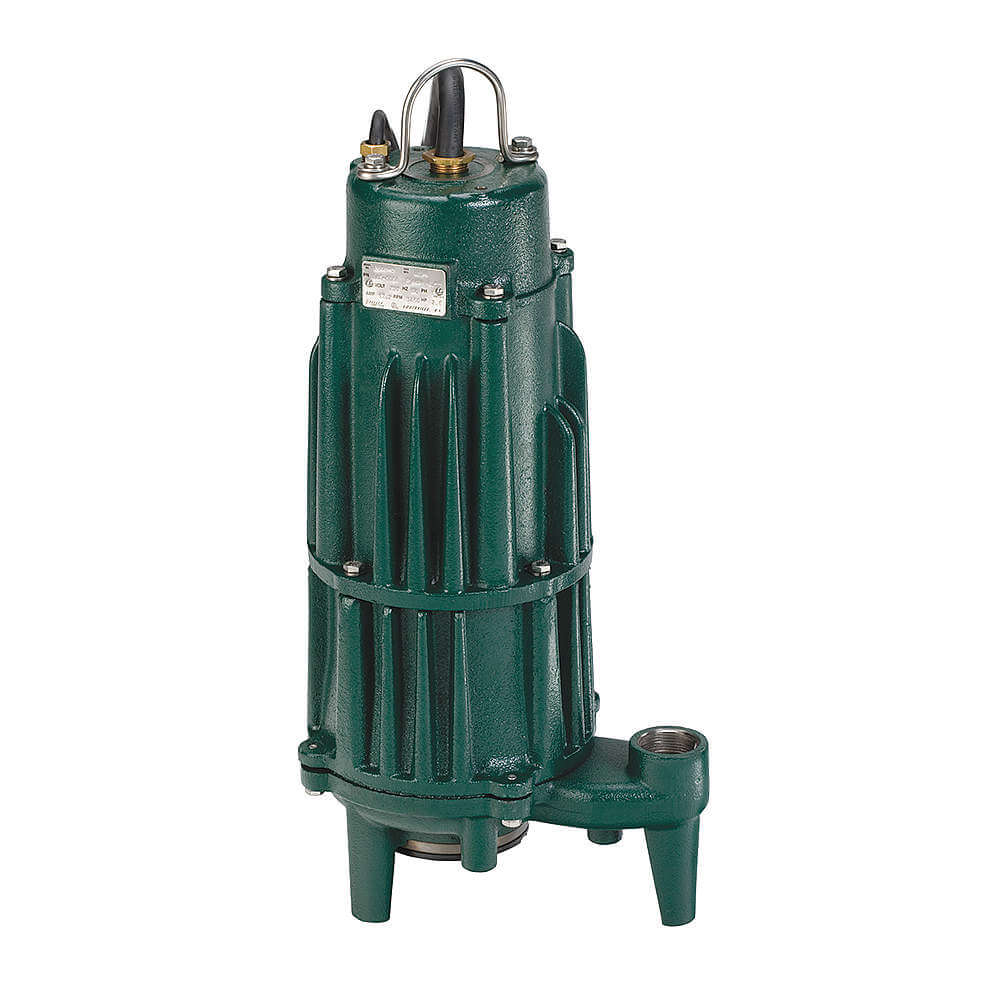

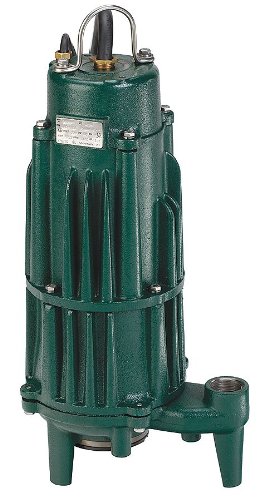

Zoeller 820-0004

B007ICU65M

Non-automatic Pump

Non-automatic Pumpzoom

Attributes

Key Value
Agency ComplianceUL, CSA
AMP13.7
Amps14 A
Base MaterialCast Iron
Body Dia.11 5/8 in
Body MaterialCast Iron
BrandZoeller
Built-In GrinderYes
CoatingEpoxy
CollectionShark?
ColorGreen
Color Finish CategoryGreens
Color Finish NameGreen
Cord Length20 ft
Cord Length - Pumps20 ft.
Current Stock9
Date First AvailableJune 15, 2009
Diameter11-5/8", 11-5/8 in
Discharge1-1/4 in, 1 1/4 in FNPT
Discharge ConfigurationVertical
Discharge Dia.1 1/4 in
Duty CycleIntermittent
End Connection 1NPT
End ConnectionsNPT
Fitting Size 11-1/4 in
Fitting Sizes1-1/4 in
Flow Rate46 gpm
Flow Rate @ 10 Ft. of H.46 gpm
Flow Rate @ 15 Ft. of H.46 gpm
Flow Rate @ 20 Ft. of H.46 gpm
Flow Rate @ 40 Ft. of H.46 gpm
Flow Rate @ 60 Ft. of H.43 gpm
GTIN053514068141
HandleYes
Height18-5/8 in, 18-5/8"", 11.
Horsepower2 hp
HP2 hp
Hz60
IAPMO Listed -No
ImpellerEngineered Plastic
Impeller MaterialEngineered Plastic
IncludesDisc, Stainless Steel C.
International ShippingNo
ItemGrinder Pump
Item Dimensions LxWxH14.9 x 11.8 x 21.2 inch.
Item Weight88 Pounds
Lead TimeExpected to ship in 1-2.
Length14.75, 11-5/8", 11-5/8 .
ManufacturerZoeller
Manufacturers Warranty .1 yr
MaterialCast Iron, Polypropylen.
Max. Head107.0 ft, 107 ft
Max. Liquid Temp.130 Degrees F, 130 Deg.
Maximum Feet of Head107
Maximum Temperature130
Min. Sump Pit Dia.24 in
Motor TypeCSCR
Mpn820-0004
Overall Height18 5/8 in
Overall Length11 5/8 in
PhaseSingle Phase
Phase - Pumps1
Product Dimensions14.9 x 11.8 x 21.2 inch.
Product with faster shi.true
Prop 65WARNING: Cancer and Rep.
Pump Application -Sump
Pump Body MaterialDuctile Iron
Pump HP2
Pump Motor TypeCapacitor Start/Capacit.
Rated Voltage230V AC
RPM3450, 3,450 RPM
Shaft SealCarbon/Ceramic
Shaft Seal Material - P.Carbon, Ceramic
Shippingundefined (Fixed Shippi.
SKUZO-G1396665
SubCategoryPumps
Switch ActuationNo Switch Included
Switch Electrical Conne.No Switch Included
Thermal ProtectionYes
UPC053514290252
VA Cat 60 Hz200
Voltage - Pumps240VAC
Volts120V
Weight88 lb
Width21.25
