Description:

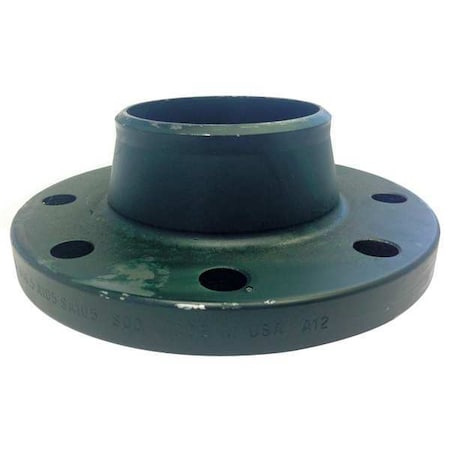

Weld Neck Flange, Raised Face, 3 in Nominal Pipe Size, Flanged x Weld Neck, 2 11/16 in Overall Length, Carbon Steel, Class Class 150, 285 psi Maximum Operating Pressure, -20 Degrees to 100 Degrees F
Attributes
| Key ^ | Value |
|---|---|
| Basic Pipe Fitting Material | Metal |
| Basic Pipe Fitting Shape, Fitting Shape, Specific Pipe Fitting Shape | Flange |
| Class, Fitting Schedule/Class, Pipe Fitting Schedule/Class | Class 150 |
| Compliance | A105 |
| Connection Surface | Raised Face |
| Fitting Connection Type, Pipe Fitting Connection Type | Circumferential Weld at Neck |
| Flange Type | Weld Neck Flange |
| Item | Weldneck Raise Face |
| Max. Pressure | 285 psi |
| Nominal Pipe Size | 3 in |
| Overall Length | 2 11/16 in |
| Pipe Fitting Material | Carbon Steel |
| Pipe Size (Fittings), Pipe Size - Pipe Fitting | 3" |
| Pressure Level | Medium Pressure (300-999 psi) |
| Specific Fitting Shape | Weld Neck Raise Face Flange |
| Standards | ASME B16.5 |
| Surface Shape | Raised Face Weld Neck Flange |
| Temp. Range | -20 Degrees to 100 Degrees F |
