- mpnP12RX-PRP040D-12
- brandname: Zoro Select
- manufacturername: Zoro Select

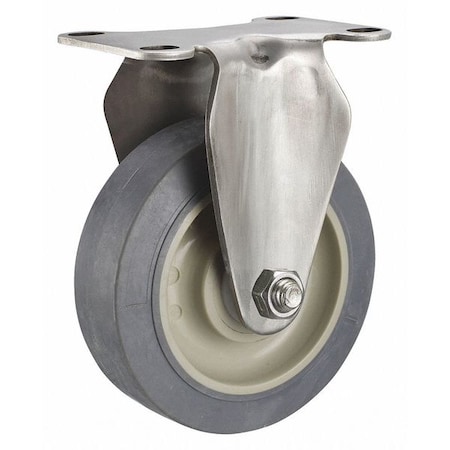

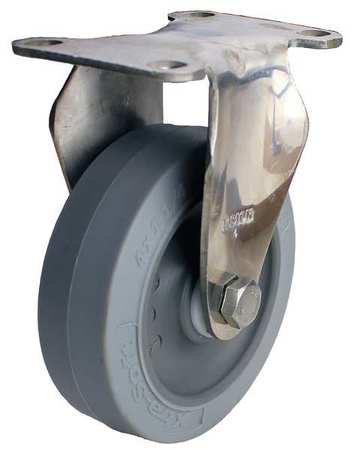

Rigid Plate Caster, TPR, 4 in., 300 lb.
- Brand: GRAINGER APPROVED
- PartNumber: 04XS04051RGN
- PackageQuantity: 1
- Manufacturer: GRAINGER APPROVED
- Label: GRAINGER APPROVED
Attributes
| Key | Value |
|---|
| Application | Retail, Industrial, Com. |
| Caster Brake Included | No |
| Caster Brake Type | No Brake Included |
| Caster Break Type | No Brake Included |
| Caster Core Material | Polypropylene |
| Caster Frame Material | Stainless Steel |
| Caster Load Rating Range | Light Duty |
| Caster Max. Temp. | 180 Degrees F |
| Caster Min. Temp. | -45 Degrees F |
| Caster Mounting Type | Plate |
| Caster Plate Hole Patte. | C |
| Caster Plate Size | 2-1/2 in x 3-5/8 in |
| Caster Plate Thickness | 0.138 in |
| Caster Product Group | Rigid Caster |
| Caster Sub-Type | Rigid |
| Caster Swivel Lock Type | No Lock Included |
| Caster Temp. Range | -4 Degrees To 140 Degre. |
| Caster Temp. Range Avai. | Yes |
| Caster Wheel Bearings | Delrin |
| Caster Wheel Shape | Standard |
| Caster Wheel/Tread Mate. | Thermoplastic Rubber |
| Core Color | Gray |
| Core Colour | Beige |
| Country of Origin (subj. | China |
| Durometer | 70 Shore A |
| ESD Conductive | No |
| Extended Lead | No |
| Features | Corrosion Resistant, Fl. |
| Frame Finish | Stainless Steel, Polish. |
| Frame Material | Stainless Steel |
| Includes | Complete Caster |
| Includes Thread Guards | No |
| Inside Bolt Hole Spacing | 1-3/4 in x 2-13/16 in |
| Item | Rigid Plate Caster, Cor. |
| Load Capacity | 300 lb |
| Load Rating | 300 lb |
| Load Rating Range | - |
| Mounting Bolt Dia. | 5/16 in |
| Mounting Height | 5 1/8 in |
| Mounting Plate Bolt Hol. | C |
| Mounting Plate Size | 2 1/2 in x 3 5/8 in |
| Non-Marking | Yes |
| Number of Mounting Holes | 4 |
| Number of Wheels | 1 |
| Outside Bolt Hole Spaci. | 1-3/4 in x 3-1/16 in |
| Overall Height | 5-1/8 in |
| Plate Caster Bolt Hole . | C |
| Plate Size | 2-1/2" x 3-5/8" |
| Plate Thickness | 1/8" |
| Replacement Wheel | Mfr. No. P-PRP-040x013/. |
| Resistant To | High Chemical Resistanc. |
| Series | P12X Series |
| Standards | RoHS, ICWM, NSF, ICWM, . |
| Swivel Lock Type | No Lock Included |
| System of Measurement | Inch |
| Thread Guards | No |
| Tread | Standard |
| Tread Color | Gray |
| Tread Shape | Standard |
| Wheel Bearing Type | Delrin |
| Wheel Color | Gray |
| Wheel Core Material | Polypropylene, Plastic |
| Wheel Dia. | 4 in |
| Wheel Width | 1-1/4 in, 1 1/4 in |
| Wheel/Tread Color | Gray |
| Wheel/Tread Colour | Gray |
| Wheel/Tread Hardness | 85-95 Shore A, 90 Shore. |
| Wheel/Tread Hardness Ra. | Firm |
| Wheel/Tread Material | Polypropylene |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | Zoro | G4573091 | 20.1 | 1 | 47 | | Zoro Select | 1.1 | 20.1 @ 1 |
| grainger.ca | WWG33J062 | 30.76691634 | 1 | In Stock | | GRAINGER APPROVED | 1.1 | 30.76691634 @ 1 |
