- mpnP12S-PB040D-P2-WB
- brandname: Zoro Select
- manufacturername: Zoro Select

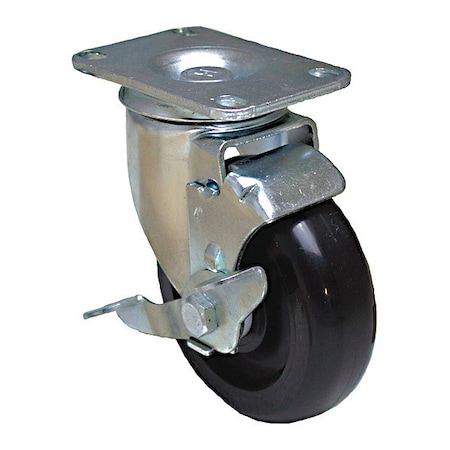

Swivel 275 lb NSF-Listed Sanitary Plate Caster Polypropylene,4 in Wheel Dia. GIS-P12S-PB040D-P2-WB
- Brand: GRAINGER APPROVED
- PartNumber: P12S-PB040D-P2-WB
- Model: GIS-P12S-PB040D-P2-WB
- Color: Black
- PackageQuantity: 1
- Manufacturer: GRAINGER APPROVED
- Label: GRAINGER APPROVED
Attributes
| Key | Value |
|---|
| Application | Retail, Industrial, Com. |
| Caster Brake Included | Yes |
| Caster Brake Type | Side Pedal Brake |
| Caster Break Type | Strap Type Brake |
| Caster Core Material | Polypropylene |
| Caster Frame Material | Steel |
| Caster Load Rating Range | Light Duty |
| Caster Mounting Type | Plate |
| Caster Plate Hole Patte. | C |
| Caster Plate Size | 3-1/8 in x 4-1/8 in |
| Caster Plate Thickness | 0.118 in |
| Caster Product Group | Swivel Caster With Brake |
| Caster Raceway | Double Ball |
| Caster Sub-Type | Swivel |
| Caster Swivel Lock Type | No Lock Included |
| Caster Temp. Range | -20 Degrees To 180 Degr. |
| Caster Temp. Range Avai. | Yes |
| Caster Wheel Bearings | Delrin |
| Caster Wheel Shape | Standard |
| Caster Wheel/Tread Mate. | Polypropylene |
| Core Color | Black |
| Core Colour | Black |
| Country of Origin (subj. | China |
| Durometer | 65 Shore D |
| ESD Conductive | No |
| Extended Lead | No |
| Features | Push/Pull Force Reducti. |
| Frame Finish | Zinc Plated |
| Includes | Strap Type Brake, Compl. |
| Includes Thread Guards | No |
| Inside Bolt Hole Spacing | 2-3/8 in x 3-3/8 in |
| Item | Swivel Plate Caster Wit. |
| Load Capacity | 275 lb |
| Load Rating | 275 lb |
| Load Rating Range | - |
| Mounting Bolt Dia. | 5/16 in |
| Mounting Height | 5 1/8 in |
| Mounting Plate Bolt Hol. | C |
| Mounting Plate Size | 3 1/8 in x 4 1/8 in |
| Non-Marking | Yes |
| Number of Mounting Holes | 4 |
| Number of Wheels | 1 |
| Operating Temperature R. | -15 Degrees to 160 Deg. |
| Outside Bolt Hole Spaci. | 2-3/8 in x 3-1/2 in |
| Overall Height | 5-1/8 in |
| Plate Caster Bolt Hole . | C |
| Replacement Wheel | Mfr. No. P-PB-040x013/0. |
| Resistant To | High Chemical Resistanc. |
| Series | P12 Series |
| Standards | RoHS, ICWM, NSF, ICWM, . |
| Swivel Construction | Kingpin |
| Swivel Lock Type | No Lock Included |
| Swivel Raceway Type | Double Ball |
| Swivel Radius | 3-1/4 in, 4 3/8 in |
| System of Measurement | Inch |
| Thread Guards | No |
| Tread | Standard |
| Tread Color | Black |
| Tread Shape | Standard |
| Wheel Bearing Type | Delrin |
| Wheel Color | Black |
| Wheel Core Material | Polypropylene, Plastic |
| Wheel Dia. | 4 in |
| Wheel Width | 1-1/4 in, 1 1/4 in |
| Wheel/Tread Color | Black |
| Wheel/Tread Colour | Black |
| Wheel/Tread Hardness | 65 Shore D, 60-70 Shore. |
| Wheel/Tread Hardness Ra. | Hard |
| Wheel/Tread Material | Polypropylene |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | Zoro | G6667451 | 8.67 | 1 | 3 | | Zoro Select | 2.03 | 8.67 @ 2 |
| grainger.ca | WWG483N47 | 14.68305538 | 1 | 2 | | GRAINGER APPROVED | 2.03 | 14.68305538 @ 2 |
