- mpnP12S-PRP030B-SG1-WB-EL
- brandname: Zoro Select
- manufacturername: Zoro Select

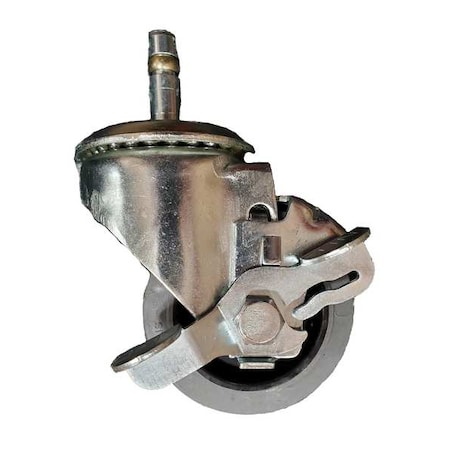

Stem Caster, Load Rating 200 lb, 4-1/8" H
- Model: P12S-PRP030B-SG1-WB-EL
- Manufacturer: ZORO SELECT
Attributes
| Key | Value |
|---|
| Application | Retail, Industrial, Com. |
| Caster Brake Included | Yes |
| Caster Brake Type | Side Pedal Brake |
| Caster Break Type | Strap Type Brake |
| Caster Core Material | Polypropylene |
| Caster Frame Material | Steel |
| Caster Load Rating Range | Light Duty |
| Caster Mounting Type | Grip Ring Stem |
| Caster Product Group | Swivel Caster With Brake |
| Caster Raceway | Double Ball |
| Caster Stem Size | 7/16 in x 1-7/16 in |
| Caster Stem Type | Friction Ring, Friction. |
| Caster Sub-Type | Swivel |
| Caster Swivel Lock Type | No Lock Included |
| Caster Temp. Range | -4 Degrees To 140 Degre. |
| Caster Temp. Range Avai. | Yes |
| Caster Wheel Bearings | Annular Ball |
| Caster Wheel Shape | Standard |
| Caster Wheel/Tread Mate. | Thermoplastic Rubber |
| Core Color | Gray |
| Core Colour | Beige |
| Country of Origin (subj. | China |
| ESD Conductive | Yes |
| Extended Lead | No |
| Features | Electrically Conductive. |
| Frame Finish | Zinc Plated |
| Includes | Strap Type Brake, Elect. |
| Includes Thread Guards | No |
| Item | General Purpose Frictio. |
| Load Capacity | 200 lb |
| Load Rating | 200 lb |
| Load Rating Range | - |
| Mounting Height | 4 1/8 in |
| Non-Marking | Yes |
| Number of Wheels | 1 |
| Operating Temperature R. | -20 Degrees to 180 Deg. |
| Overall Height | 4-1/8 in, 4 1/8 in |
| Replacement Wheel | Mfr. No. P-PRP-030x013/. |
| Resistant To | High Chemical Resistanc. |
| Series | P12 Series |
| Standards | RoHS, ICWM, NSF, DIN EN. |
| Stem Dia. | 7/16 in |
| Stem Length | 1 7/16 in, 1-7/16 in |
| Swivel Lock Type | No Lock Included |
| Swivel Raceway Type | Double Ball |
| Swivel Radius | 2-13/16 in |
| System of Measurement | Inch |
| Tread | Standard |
| Tread Color | Gray |
| Tread Shape | Standard |
| Wheel Bearing Type | Precision Ball |
| Wheel Color | Gray |
| Wheel Core Material | Polypropylene, Plastic |
| Wheel Dia. | 3 in |
| Wheel Width | 1-1/4 in, 1 1/4 in |
| Wheel/Tread Color | Gray |
| Wheel/Tread Colour | Gray |
| Wheel/Tread Hardness | 85-95 Shore A |
| Wheel/Tread Material | Rubber |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
| Zoro | G1626099 | 17.8 | 1 | 7 | | Zoro Select | 1.9 | 17.8 @ 1 |
| grainger.ca | WWG490W35 | 31.81933504 | 1 | In Stock | | GRAINGER APPROVED | 1.9 | 31.81933504 @ 1 |
