GRAINGER APPROVED P13S-UP040D-14-SB

B09M77Q17B

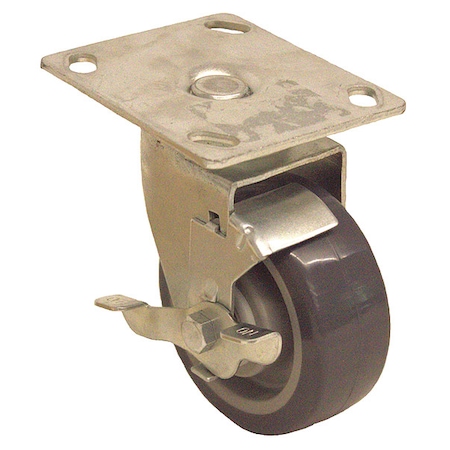

Swivel, 350 lb, Standard Plate Caster, Polyurethane,4 in Wheel Dia. GIS-P13S-UP040D-14-SB

Swivel, 350 lb, Standard Plate Caster, Polyurethane,4 in Wheel Dia. GIS-P13S-UP040D-14-SBzoom

Attributes

Key Value
ApplicationFood Service, Food Proc.
Caster Brake IncludedYes
Caster Brake TypeSide Pedal Brake
Caster Break TypePinch Style
Caster Core MaterialPolypropylene
Caster Frame MaterialSteel
Caster Load Rating RangeLight-Medium Duty
Caster Max. Temp.160 Degrees F
Caster Min. Temp.-15 Degrees F
Caster Mounting TypePlate
Caster Plate Hole Patte.B
Caster Plate Size4 in x 4-1/2 in
Caster Plate Thickness0.157 in
Caster Product GroupSwivel Caster With Brake
Caster RacewayDouble Ball
Caster Sub-TypeSwivel
Caster Swivel Lock TypeNo Lock Included
Caster Temp. Range-15 Degrees To 160 Degr.
Caster Temp. Range Avai.Yes
Caster Wheel BearingsDelrin
Caster Wheel ShapeStandard
Caster Wheel/Tread Mate.Polyurethane
Core ColorGray
Country of Origin (subj.China
Durometer95 Shore A
ESD ConductiveNo
Extended LeadNo
FeaturesFloor Protective, Noise.
Frame FinishZinc Plated
IncludesPinch Type Brake
Includes Thread GuardsNo
Inside Bolt Hole Spacing3 in x 3 in
ItemSwivel Plate Caster Wit.
Load Capacity350 lb
Load Rating350 lb
Load Rating Range-
Mounting Bolt Dia.5/16 in
Mounting Height5 5/16 in
Mounting Plate Bolt Hol.B
Mounting Plate Size4 in x 4 1/2 in
Non-MarkingYes
Number of Mounting Holes4
Number of Wheels1
Operating Temperature R.-15 Degrees to 160 Deg.
Outside Bolt Hole Spaci.2-5/8 in x 3-5/8 in
Overall Height5-5/16 in
Resistant ToHigh Chemical Resistanc.
SeriesP13 Series
StandardsRoHS, ICWM
Swivel ConstructionKingpin
Swivel Lock TypeNo Lock Included
Swivel Raceway TypeDouble Ball
Swivel Radius3-5/16 in
System of MeasurementInch
Thread GuardsNo
TreadStandard
Tread ColorGray
Tread ShapeStandard
Wheel Bearing TypeDelrin
Wheel ColorGray
Wheel Core MaterialPolypropylene
Wheel Dia.4 in
Wheel Width1-7/16 in
Wheel/Tread ColorGray
Wheel/Tread Hardness50-60 Shore D
Wheel/Tread Hardness Ra.Hard
Wheel/Tread MaterialPolyurethane

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomZoroG120396215.01163Zoro Select2.6315.0 @ 1
