- mpnT/R+KEG
- brandname: 3-M
- manufacturername: 3-M

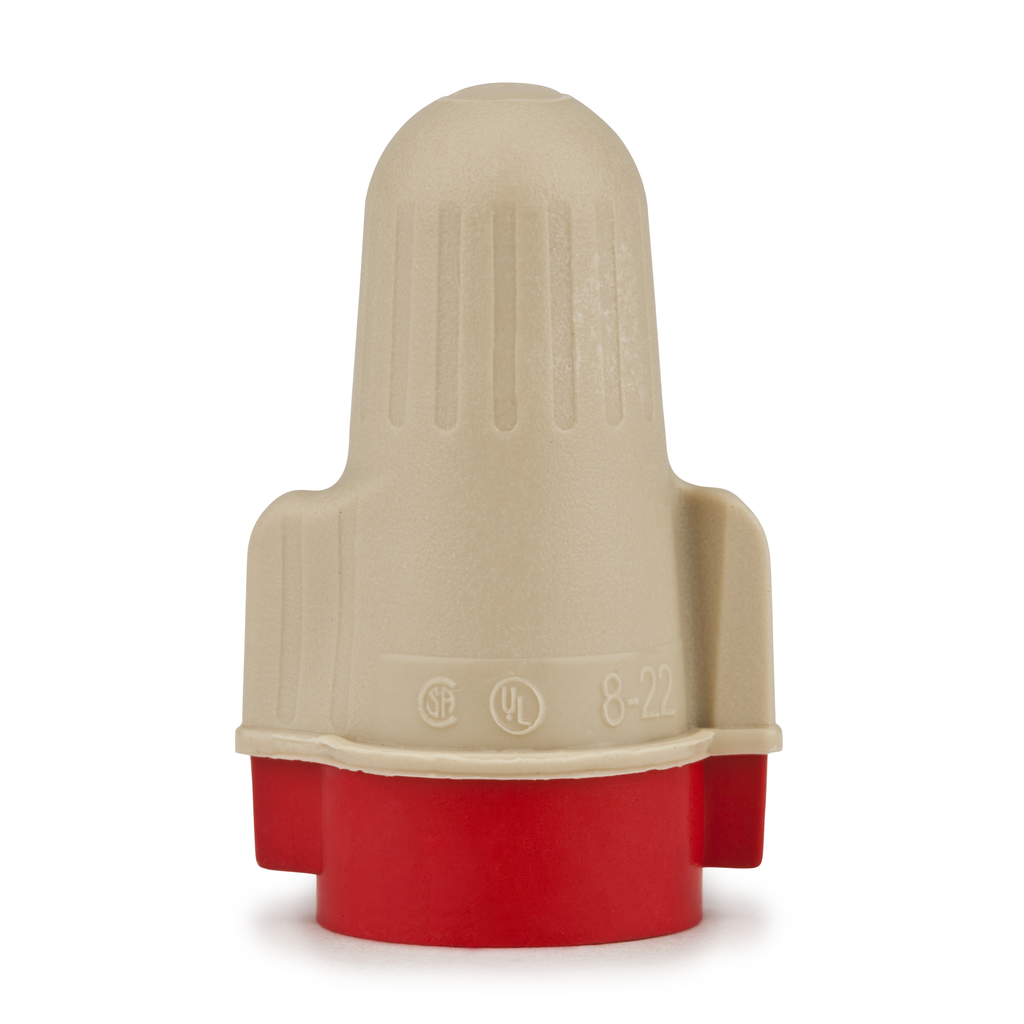

3M T/R+Keg Spring Conn 25000/Keg - Package Qty 25000
- Brand: 3M
- PartNumber: T/R+KEG
- Manufacturer: 3M
- Label: 3M
Attributes
| Key | Value |
|---|
| 3M Number | T/R+KEG |
| Allowable Gauge Range | 22 - 10 |
| Base Product Number | T/R |
| Brand | 3M |
| Brand Name | 3M |
| Category | Electrical Insulating T. |
| Color | Tan, Red, Red / Tan, Ta. |
| Color Family | Multi |
| Conductor Size | 22-8 AWG |
| Connection Type | Wire |
| Connector Style | Twist On |
| Connector Type | Wire Connector |
| Country Of Origin | United States of America |
| Country of Origin | US - United States, USA. |
| Country of Origin (subj. | United States |
| Dual color coded | one connector does the . |
| ECCN | EAR99 |
| Energy Star Flag | No |
| Environmental Conditions | V2 Flammability Rated P. |
| Family | 3M? Performance Plus Wi. |
| Features | Copper Wire Only, Flame. |
| Finish | No |
| Flame Retardant | Yes |
| GTIN | 00051128544563 |
| Height | 1.17 in. |
| Insulation | Fully Insulated |
| Insulation Material | Flame Retardant Polypro. |
| Item Name | Twist-On Wire Connector |
| Made In America | Yes |
| Manufacturer | 3M |
| Manufacturer Name | 3M |
| Manufacturer Part Number | T/R+KEG |
| Manufacturing Origin | USA |
| Material | Polypropylene, Corrosio. |
| Maximum Conductor Size . | 8 AWG |
| Maximum Conductor Size . | 10 |
| Maximum Insulation Oute. | 3.7 mm |
| Maximum Insulation Outs. | 0.145 in |
| Maximum Operating Tempe. | 221 ?F |
| Maximum Operating Tempe. | 105.0 Degree |
| Maximum Operating Tempe. | 221.0 Degree |
| Maximum Recommended Vol. | 600.0 V |
| Maximum Voltage Rating | 600 V |
| Maximum Wire Size | 8 AWG |
| Mfr | 3M |
| Minimum Conductor Leg D. | 22 AWG |
| Minimum Conductor Size . | 22 AWG |
| Minimum Conductor Size . | .34 mm? |
| Minimum Wire Size | 22 AWG |
| Number of Wire Entries | Varies by Wire Size |
| Package | Bulk |
| Package Quantity | 25000 per box, 25000/Keg |
| Packaging | Keg, 25000 per Package |
| Part Status | Active |
| Product Color | Red |
| Product Type | Connector |
| RoHS EU Comments | RoHS 2011/65/EU complia. |
| RoHS Flag | Yes |
| Series | Performance Plus? |
| Specifications Met | UL Listed |
| Standards | UL Listed, CSA Certifie. |
| Stud Size | No |
| Sub Brand | Performance Plus? |
| Temperature Rating | 221 deg F (105 deg C) |
| Terminal Type | Wire Nut, Wing |
| Termination | Twist On |
| Type | Wire, Wire Connector, T. |
| Units per Case | 25000.0 |
| UNSPSC | 39121445, 31201502 |
| UPC | 05112854456, 0511285445. |
| Use With | Copper Conductor |
| Voltage Rating | 600 V, 600 Volt |
| Width | 0.76 in. |
| Wire Connector Type | Twist-on Wire Connectors |
| Wire Gauge | 8-22 AWG |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
| Digi-Key | 5129432 | 0.14092 | 2500 | 25000 | | 3M | | 0.14092 @ 25000 |
| Monarch Electric | 150172 | 0.15 | 1 | 25000 | | 3M | | 0.15 @ 25000 |
 | mayerelectric.com | MMMTR+KEG | 0.15 | 1 | 25000 | | 3M | | 0.15 @ 25000 |
 | Platt.com | 0561105 | 0.17 | 1 | 25000 | | 3M | | 0.17 @ 25000 |
| Newark | 44P9556 | 0.232 | 25000 | 25000 | | 3M | | 0.232 @ 25000 |
| Onlinecomponents.com | T/R+KEG | 0.27 | 6250 | 25000 | | 3M | | 0.27 @ 25000 |
| Graybar | 22071843 | 171.7296 | 25000 | 25000 | | 3M | | 171.7296 @ 25000 |
| Dale-Electric | T/R+KEG | 3237.5 | 1 | 25000 | | 3M | | 3237.5 @ 25000 |
 | rshughes.com | 051128-54456 | 3250.0 | 25000 | 25000 | | 3M | | 3250.0 @ 25000 |
 | gordonelectricsupply.com | T/R+KEG | 3352.25 | 1 | 25000 | 455 | 3-M | | 3352.25 @ 25000 |
 | Zoro | G304257053 | 4065.02 | 1 | 25000 | | 3M | | 4065.02 @ 25000 |
