Advance Ballast 71A5570-001D

B0019H1JZ8

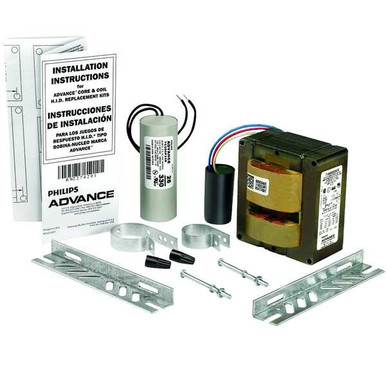

Advance 71A5570-001D - 150/175 Watt - Metal Halide Ballast - ANSI M57/M107- Includes Dry Capacitor and Bracket Kit

Advance 71A5570-001D - 150/175 Watt - Metal Halide Ballast - ANSI M57/M107- Includes Dry Capacitor and Bracket Kitzoom

Attributes

Key Value
ANSI CodeM57/M107
Ballast ItemHID Ballast Kit
Ballast Lamp TypeMetal Halide
Ballast Max. Lamp Watts175
Ballast Start TypeProbe
Ballast TypeCWA, Magnetic
Ballast Voltage120/208/240/277
BrandAdvance
Current Stock57
Dimension A2 7/16 in
Dimension B3 15/16 in
Figure NumberH1
Footnotes6
For Use WithMetal Halide HID Bulbs
Height2 7/8 in, 2.8 in.
IncludesCapacitor, Coil, Core, .
Input Watts210 W
Insulation ClassH
International ShippingNo
ItemHID Ballast Kit
Length3.95 in., 3 15/16 in
Length (Straight Wirewa.3 15/16 in
Lighting TechnologyMetal Halide
Min. Starting Temp.-20 Degrees F
MountingHardware Included
Mpn71A5570-001D
MPN (Part No.)71A5570-001D
Number of Lamps1
OperatesMH150 or MH175
Operating Amps @ 208V1.04
Operating Amps @ 240V0.9
Power Factor90%
Ratings and Certificati.CSA/Indoor/UL
SKUZO-G2391724
Start MethodProbe Start
Start Temp. (Max)221 Deg. F
Start Temp. (Min)-22 Deg. F
SubCategoryLighting
TypeMetal Halide
UPC781087096574, 781087096.
Voltage120/208/240/277
Warranty2 Years
Wattage175 Watt
Weight6.8 lb.
Width3 11/16 in, 3.7 in.

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomZoroG239172474.891457Advance7.5574.89 @ 1
thumbzoomsimsupply.comZO-G239172488.74157Advance88.74 @ 1
