AVAGO TECHNOLOGIES HCPL-0723-000E

B00DK897EO

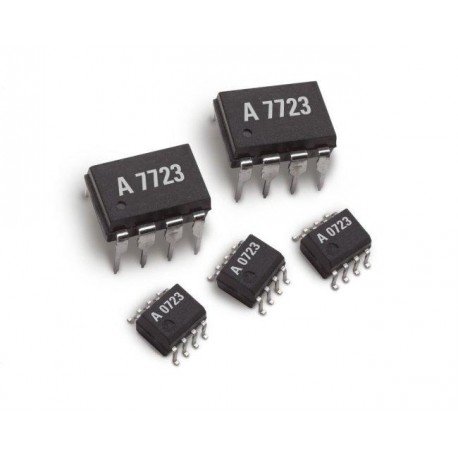

AVAGO TECHNOLOGIES HCPL-0723-000E OPTOCOUPLER, LOGIC GATE, 3750VRMS (1 piece)

AVAGO TECHNOLOGIES HCPL-0723-000E OPTOCOUPLER, LOGIC GATE, 3750VRMS (1 piece)zoom

Attributes

Key Value
Alternate Part No.630-HCPL-0723-000E
Base Product NumberHCPL-0723
BrandAvago Technologies
CategoryIsolators
Common Mode Transient I.10kV/?s
Current - DC Forward (I.-
Current - Output / Chan.10 mA
Data Rate50 MBd, 50MBd
Fall Time6 ns
Input TypeLogic
Inputs - Side 1/Side 21/0
Isolation Voltage3750 Vrms
ManufacturerAvago Technologies
Manufacturer Part No.HCPL-0723-000E
Maximum Continuous Outp.10 mA
Maximum Operating Tempe.+ 85 C
Maximum Power Dissipati.150 mW
MfrBroadcom Limited
Minimum Operating Tempe.- 40 C
Mounting TypeSurface Mount
Number of Channels1
Number of Channels per .1 Channel
Operating Temperature-40?C ~ 85?C
Output DevicePhoto IC
Output TypePush-Pull, Totem Pole
PackageTube
Package / Case8-SOIC (0.154", 3.90mm .
Package/CaseSOIC-8
PackagingTube
Product CategoryHigh Speed Optocouplers
Product StatusActive
Propagation Delay tpLH .22ns, 22ns
Rise / Fall Time (Typ)8ns, 6ns
Rise Time8 ns
Series-
Supplier Device Package8-SO Tall
Voltage - Forward (Vf) .-
Voltage - Isolation3750Vrms
Voltage - Supply4.5V ~ 5.5V

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomRadwellHCPL-0723-000E4.96134AVAGO TECHNOLOGIES US INC4.96 @ 1
HotendaH27343747.141In StockAvago Technologies US, Inc.7.14 @ 1
thumbzoomNewark31K69478.112422BROADCOM8.1 @ 1
Digi-Key8252769.6611332Broadcom Limited9.66 @ 1
thumbzoomswatee.comHCPL-0723-000E12.43126Avago Technologies12.43 @ 1
AmazonTPB00DK897EO16.561In Stock2Avago Technologies16.56 @ 1
