Baldor Electric Motors IDM3584T-5

B00BC7GS92

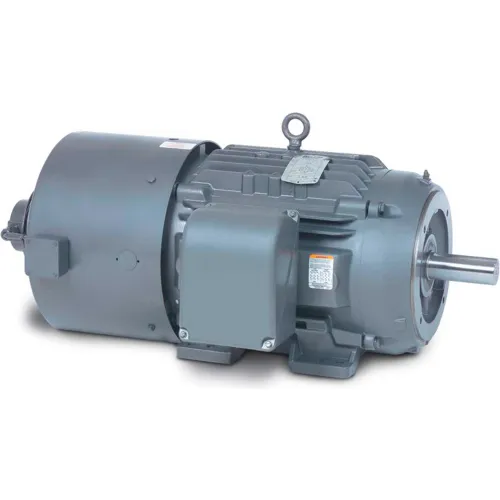

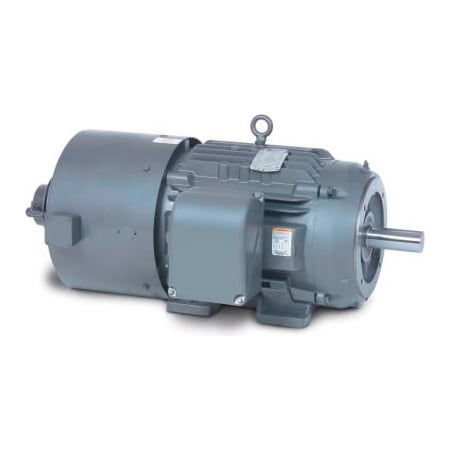

Baldor IDM3584T-5 1.5HP 1750RPM 3PH 60HZ 145TC 0528M TEBC

Baldor IDM3584T-5 1.5HP 1750RPM 3PH 60HZ 145TC 0528M TEBCzoom

Attributes

Key Value
Amps1.7
ApplicationVariable Speed AC
BearingsBall
Comments60 Hz
CompositionAluminum
ConstructionAluminum
Drive End Flange TypeC-Face
Duty CycleContinuous
Efficiency88.5%
Efficiency %88.5 %
EnclosureTotally Enclosed Blower.
Enclosure MaterialIron
Enclosure TypeTEBC (Totally Enclosed .
Estimated Weight70.00
Family NameVariable Speed AC Family
Family SeriesBaldor Motors
FL Amps1.7
FL Efficiency88.5
Frame145TC
Frame Type145TC
Frequency60 Hz
Gross Weight63 lbs
Hertz60
Horsepower1-1/2 hp
Horsepower Rating1.5 HP
HP1.5, 1-1/2
Hz60
Insulation ClassH
Inverter DutyYes
Item NumberIDM3584T-5
ManufacturerBaldor, Baldor Reliance
Manufacturer Model #05E535W830G1
Manufacturer Part NumberIDM3584T-5
Maximum Ambient Tempera.40? C
MountingFoot Mount, C-Face/Rigid
Mounting TypeFoot Mount, Footed / Fl.
NEMA Frame145TC
Net Weight63 lbs
Nominal Voltage575 VAC, 600 VAC
Number of Speeds1
Overall Length19.02"
Part NumberIDM3584T-5
Phase3, 3 Phase
Product TypeGeneral Purpose, Three .
RotationReversible
RPM1760 RPM, 1760, 1700 - .
SeriesVS Master Series
Service Factor1, 1.00
Shaft Diameter0.875"
Ship Weight70 lbs.
Special FeaturesEncoder Ready ; Inverte.
Speed (RPM)1760
Supply Voltage575 VAC
UPC Code781568184387
Voltage575V, 575
Voltage (AC)575 VAC
Volts575
