- mpnVENM3581T
- brandname: Baldor
- manufacturername: Baldor

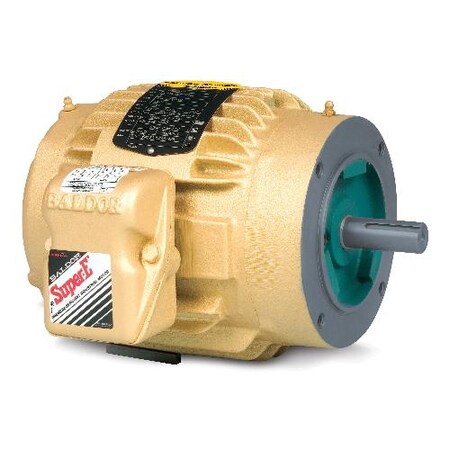

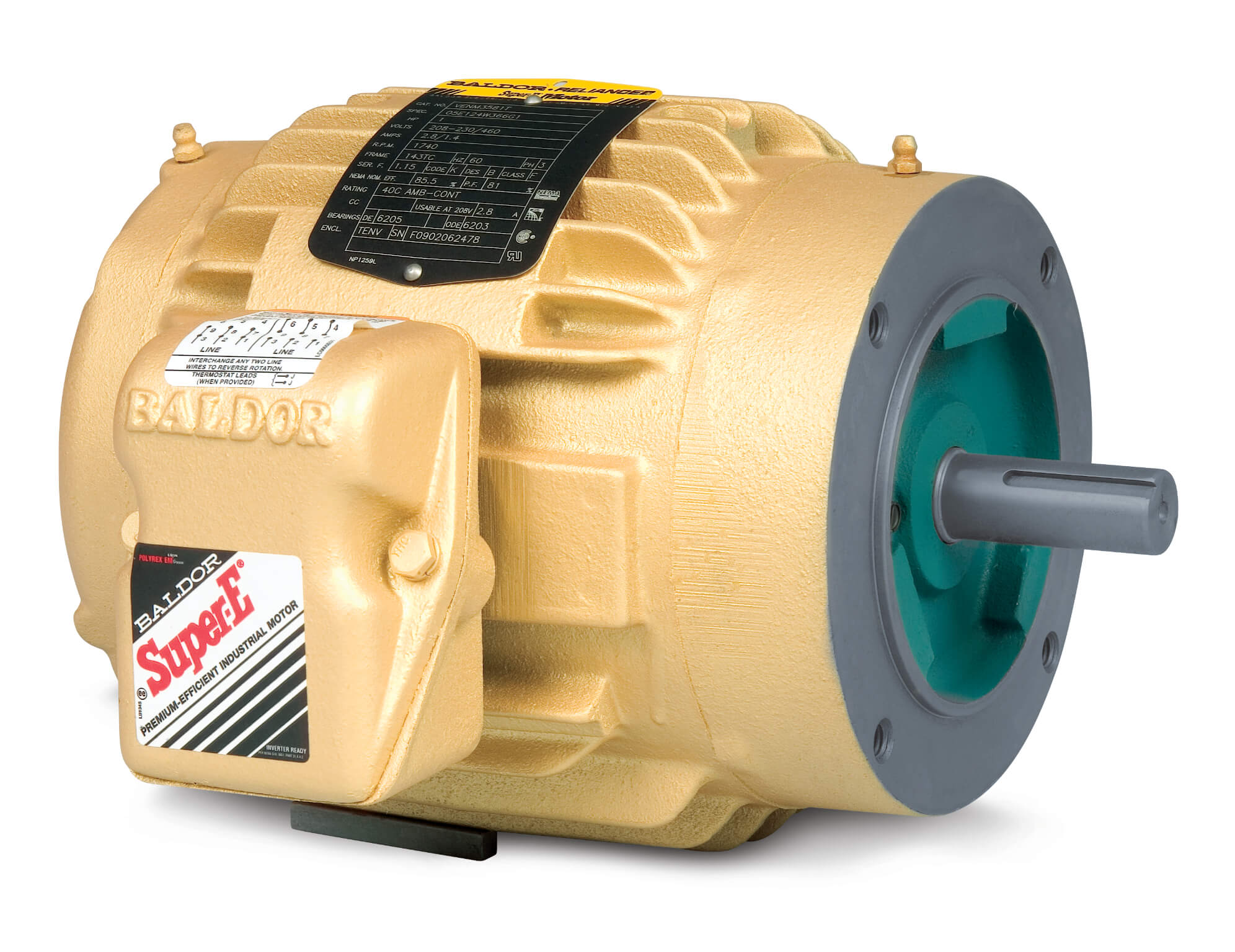

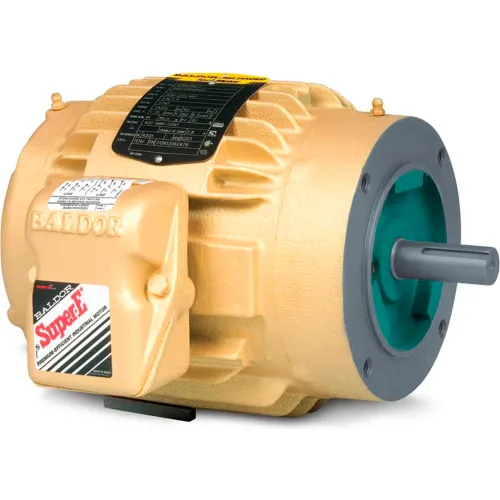

Baldor VENM3581T 1HP1745RPM3PH60HZ143TC0524MTE NVF1
- Brand: Baldor Electric Motors
- PartNumber: VENM3581T
Attributes
| Key | Value |
|---|
| Amps | 1.45/2.9/3 |
| Application | General Purpose |
| Bearing Type | Ball |
| Bearings | Ball |
| Composition | Cast Iron |
| Construction | Cast Iron |
| Drive End Flange Type | C-Face |
| Duty Cycle | Continuous |
| Efficiency | 85.5% |
| Efficiency % | 85.5 % |
| Enclosure | Totally Enclosed Non-Ve. |
| Enclosure Material | Iron |
| Enclosure Type | TENV (Totally Enclosed . |
| Estimated Weight | 56.00 |
| Family Name | Three Phase Enclosed Fa. |
| Family Series | Baldor Motors, VM Series |
| FL Amps | 3-2.9/1.45 |
| FL Efficiency | 85.5 |
| Frame | 143TC |
| Gross Weight | 58 lbs |
| Hertz | 60 |
| Horsepower | 1 hp |
| HP | 1 |
| Hz | 60 |
| Insulation Class | F |
| Inverter Duty | No |
| Item Number | VENM3581T |
| Manufacturer | Baldor, Baldor Reliance |
| Manufacturer Model # | 05E124X129G1 |
| Manufacturer Part Number | VENM3581T |
| Maximum Ambient Tempera. | 40? C |
| Mounting | C-Face, Footless |
| Mounting Type | C-Face Footless, Footle. |
| NEMA Frame | 143TC |
| Net Weight | 58 lbs |
| Nominal Voltage | 208 VAC, 240 VAC, 415 V. |
| Number of Speeds | 1 |
| Overall Length | 11.36", 11.36 " |
| Overload Protection | None |
| Part Number | VENM3581T |
| Phase | 3, 3 Phase |
| Product Series | VM |
| Product Type | General Purpose, Three . |
| Rotation | Reversible |
| RPM | 1745, 1745 RPM, 1700 - . |
| Series | GE3 Series |
| Service Factor | 1.15 |
| Shaft Diameter | 0.875" |
| Ship Weight | 56 lbs. |
| Speed (RPM) | 1745 |
| UPC Code | 781568503331 |
| Voltage | 208V, 230V, 460V, 230/4. |
| Voltage (AC) | 208-230 VAC, 460 VAC |
| Volts | 230/460 |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | emotorpro.com | VENM3581T | 915.7 | 1 | In Stock | | Baldor | 56.0 | 915.7 @ 1 |
| factorysupplyoutlet.com | BP76NN | 1010.69 | 1 | In Stock | | Baldor-Reliance | | 1010.69 @ 1 |
 | Galco | VENM3581T-BLDR | 1013.23 | 1 | In Stock | | Baldor | 58.0 | 1013.23 @ 1 |
 | Walker Industrial | VENM3581T | 1013.23 | 1 | In Stock | | Baldor | | 1013.23 @ 1 |
 | Global Industrial | WBB391121 | 1015.0 | 1 | In Stock | | Baldor-Reliance | | 1015.0 @ 1 |
| motorsandcontrol.com | VENM3581T | 1055.44 | 1 | In Stock | | Baldor Reliance | 56.0 | 1055.44 @ 1 |
| us.rs-online.com | 71944479 | 1170.87 | 1 | In Stock | | Baldor-Reliance | | 1170.87 @ 1 |
 | pumpproducts.com | VENM3581T | 1199.0 | 1 | In Stock | | Baldor | | 1199.0 @ 1 |
 | Zoro | G3303497 | 1218.75 | 1 | In Stock | 15 | Baldor-Reliance | | 1218.75 @ 1 |
| kirbyrisk.com | 3132405 | 1328.54 | 1 | In Stock | | Baldor | | 1328.54 @ 1 |
| motionindustries.com | 03933060 | 1461.93 | 1 | In Stock | | Baldor-Reliance | | 1461.93 @ 1 |
 | Raptor Supplies | AJ6YVW | 3017.8617885 | 1 | In Stock | | BALDOR MOTOR | | 3017.8617885 @ 1 |
