- mpnYAD4CM6E14
- brandname: BURNDY
- manufacturername: BURNDY

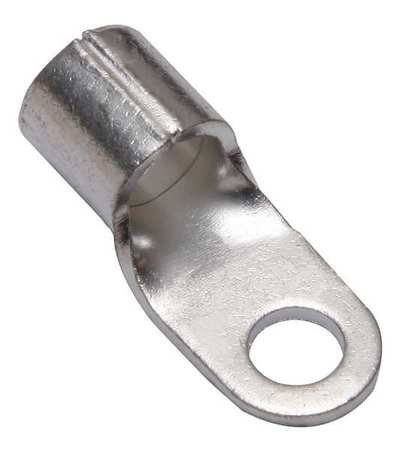

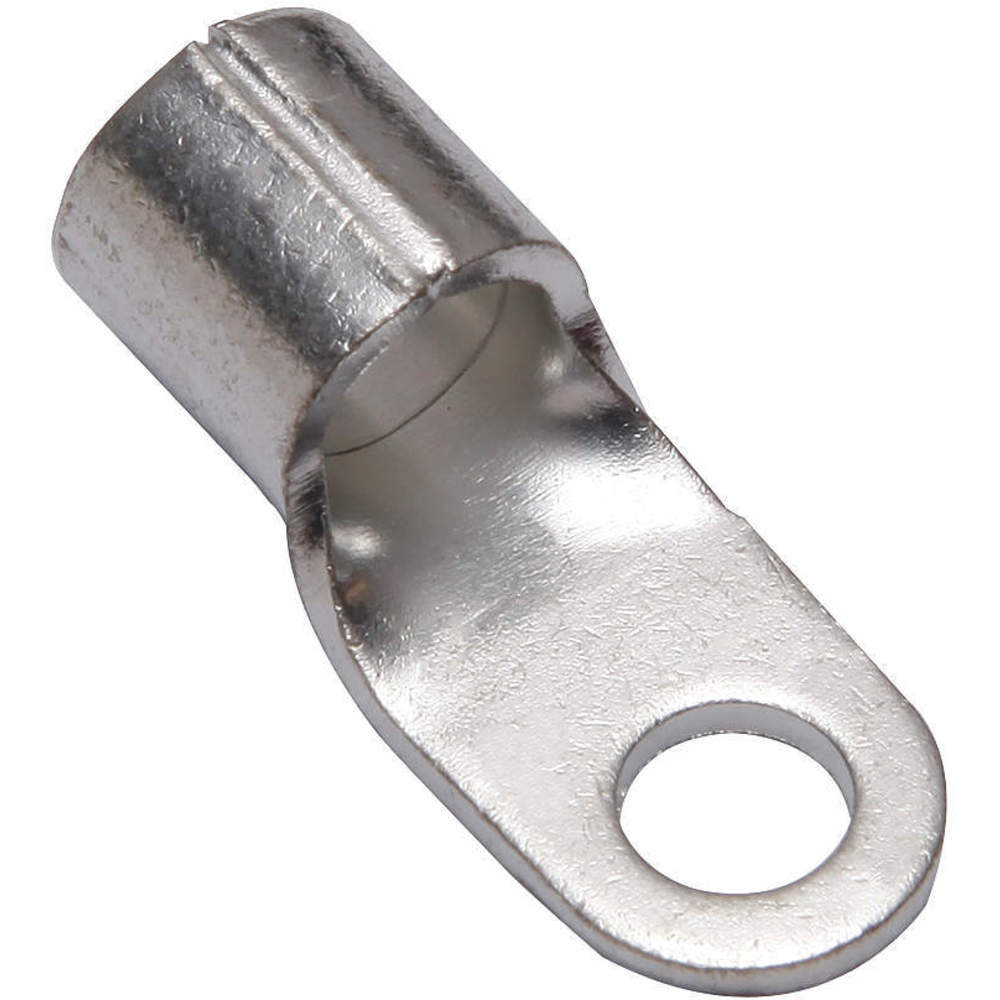

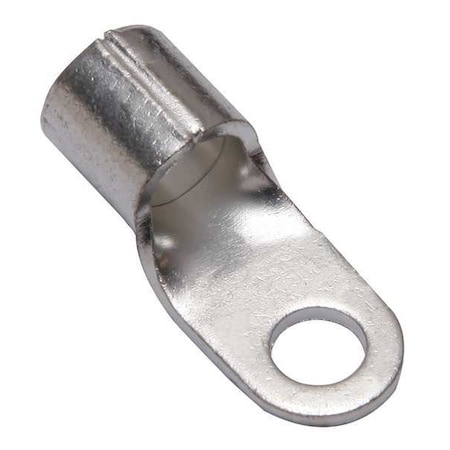

One Hole Lug Compress Conct, 4 AWG, PK5
- Brand: Burndy
- PartNumber: YAD4CM6E14
- Model: YAD4CM6E14
- PackageQuantity: 1
- Binding: Misc.
- Manufacturer: BURNDY
- Label: BURNDY
Attributes
| Key | Value |
|---|
| Application | The YAD uninsulated OEM. |
| Barrel Length | 0.43 in |
| Barrel Outside Diameter | 0.41 in |
| Barrel Size | Long |
| Barrel Style | Brazed |
| Brand | Burndy |
| Cable Size | 4 AWG |
| Certification - CSA App. | No |
| Certification - cULus | No |
| Certification - UL Reco. | No |
| Color | Silver |
| Color Code | None |
| Combo for Heat Shrink | None / Non-Insulated |
| Compatible Grainger Par. | 22P219, 22P221 |
| Compatible with Product. | Code, Flex Cable |
| Compatible with Series | PAT4PC834, PAT750, PAT8. |
| Conductor - Copper Str . | 4 AWG |
| Conductor Size | 4 AWG |
| Connection Material | Tin Plater Copper |
| Connector Type | Terminal, YAD |
| Contact Finish | Tin |
| Contact Material | Copper |
| Country of Origin | TW - Taiwan |
| Current Stock | 197 |
| Die Code | 1017 |
| Dimension - B Length in. | 0.43 in |
| Dimension - Bolt Size f. | 2023-01-04 |
| Dimension - Hole Size i. | 0.26 in, 0.21 in 0.26 in |
| Dimension - L Length Ov. | 31 mm |
| Dimension - Length Over. | 1.22 in |
| Dimension - Outside Dia. | 0.41 in |
| Dimension - Pad Width i. | 0.47 in |
| Dimension - Strip Lengt. | 1 to 2, 1/2 |
| Dimension - Stud Size i. | 1/4, 1/4 #10 |
| ECCN | EAR99 |
| Family Series | Burndy Terminals |
| Feature - Barrel Type | Long |
| Finish | Tin-Plated |
| For Wire Size | 4 AWG |
| For Wire Sizes | 4 AWG to 4 AWG |
| Gross Weight | 0.0009 lbs |
| Hole Center to End | 0.980" |
| Hole Diameter | 0.26 in |
| Hole Spacing | 0.45 in |
| Industry Standard(s) | UL467 |
| Insulation | None |
| Insulation Color | Bare |
| Insulation Coverage | None |
| Insulation Material | None |
| Insulation Type | Non-Insulated, Bare |
| International Shipping | No |
| Item | Uninsulated Compression. |
| Item Number | YAD4CM6E14 |
| Item Type | 3B |
| Lead Time | Expected to ship in 1-2. |
| Length | 1.22" |
| Lug Wire Size | 4 AWG |
| Manufacturer | Burndy |
| Manufacturer Part Number | YAD4CM6E14 |
| Material | Copper, Electrolytic Co. |
| Material/Composition | Copper |
| Max Conductor Range | 4 AWG |
| Max. Temp. | 302 Degrees F |
| Max. Voltage | 600 V |
| Maximum Operating Tempe. | 302 Degrees F |
| Maximum Voltage | 600 V |
| Maximum Wire Size | 4 AWG |
| Min Conductor Range | 4 AWG |
| Minimum Operating Tempe. | 302 Degrees F |
| Minimum Wire Size | 4 AWG |
| Mpn | YAD4CM6E14 |
| Net Weight | 0 lbs |
| Number of Holes | 1 |
| Overall Length | 1.220", 1.22 in |
| Peep Hole | No |
| Physical Attribute - To. | Ring |
| Plate Material | Tin |
| Plated | Y |
| Plating Type | Tin |
| Ring Width Ranges | 0.26 - 0.50 inches |
| RoHS Compliant | Yes |
| Seam | Brazed |
| Seam Style | Brazed |
| SKU | ZO-G6210635 |
| Special Features | Durable Long Lasting Co. |
| Standards | UL 467 |
| Standards - RoHS Compli. | NC |
| Strip Length | 1/2 in |
| Stud Size | 1/4 in, 1/4", 1/4 in., . |
| SubCategory | Electrical |
| Terminal Shape | Ring Tongue |
| Termination | Crimp Termination Only |
| Termination Style | Crimp |
| Tongue Length | 0.79 in |
| Tongue Style | Ring |
| Tongue Thickness | 0.06 in |
| Tongue Width | 0.47 in |
| Tongue Width - Wire Con. | 0.47 in |
| Trade Name | HYLUG? |
| Type | Ring Tongue |
| UL Listed | No |
| UNSPSC | 39121405 |
| UPC | 781810668641 |
| Use With | Copper |
| Voltage - Maximum | 600 V |
| Width | 0.47" |
| Wire Range | 4 AWG |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | Megadepot | YAD4CM6E14 | 2.05 | 1 | 5 | | Burndy | | 2.05 @ 5 |
 | usmegastore.com | YAD4CM6E14 | 2.05 | 1 | 5 | | Burndy | | 2.05 @ 5 |
| Graybar | 97215138 | 2.4976 | 1 | 5 | | Burndy | | 2.4976 @ 5 |
 | Galco | YAD4CM6E14-BURN | 2.79 | 100 | 5 | | Burndy | 0.0009 | 2.79 @ 100 |
| grainger.ca | WWG30XT30 | 12.89757262 | 1 | 5 | | BURNDY | 0.09 | 12.89757262 @ 5 |
 | Zoro | G6210635 | 14.15 | 1 | 346 | | Burndy | 0.09 | 14.15 @ 5 |
 | simsupply.com | ZO-G6210635 | 19.21 | 1 | 197 | | Burndy | | 19.21 @ 5 |
 | Raptor Supplies | AF9ZTL | 19.4754105 | 1 | 5 | | BURNDY | | 19.4754105 @ 5 |
