A. O. Smith B121

B006H3ZSJW

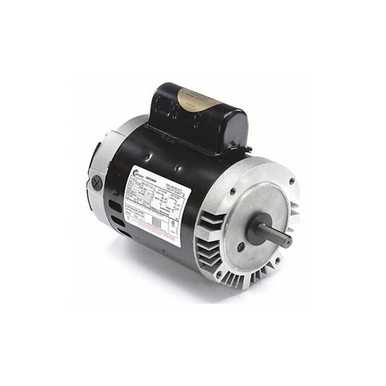

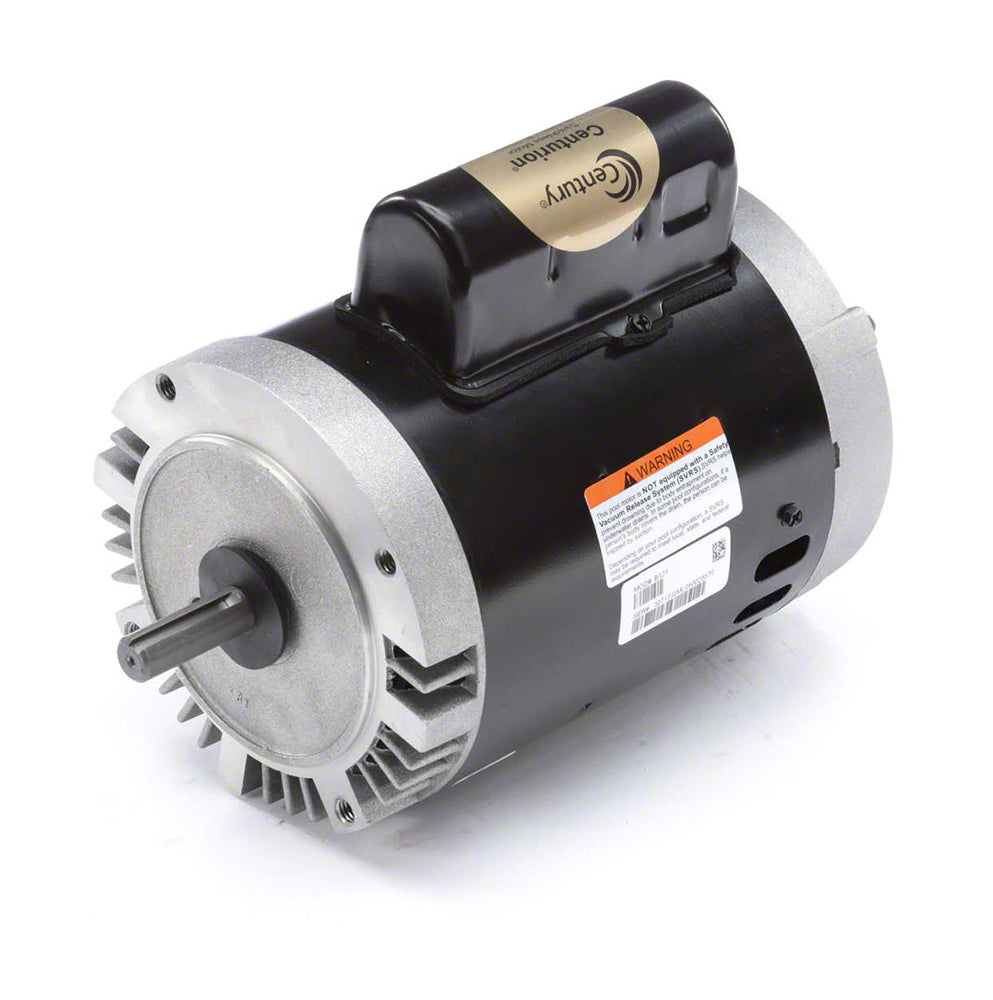

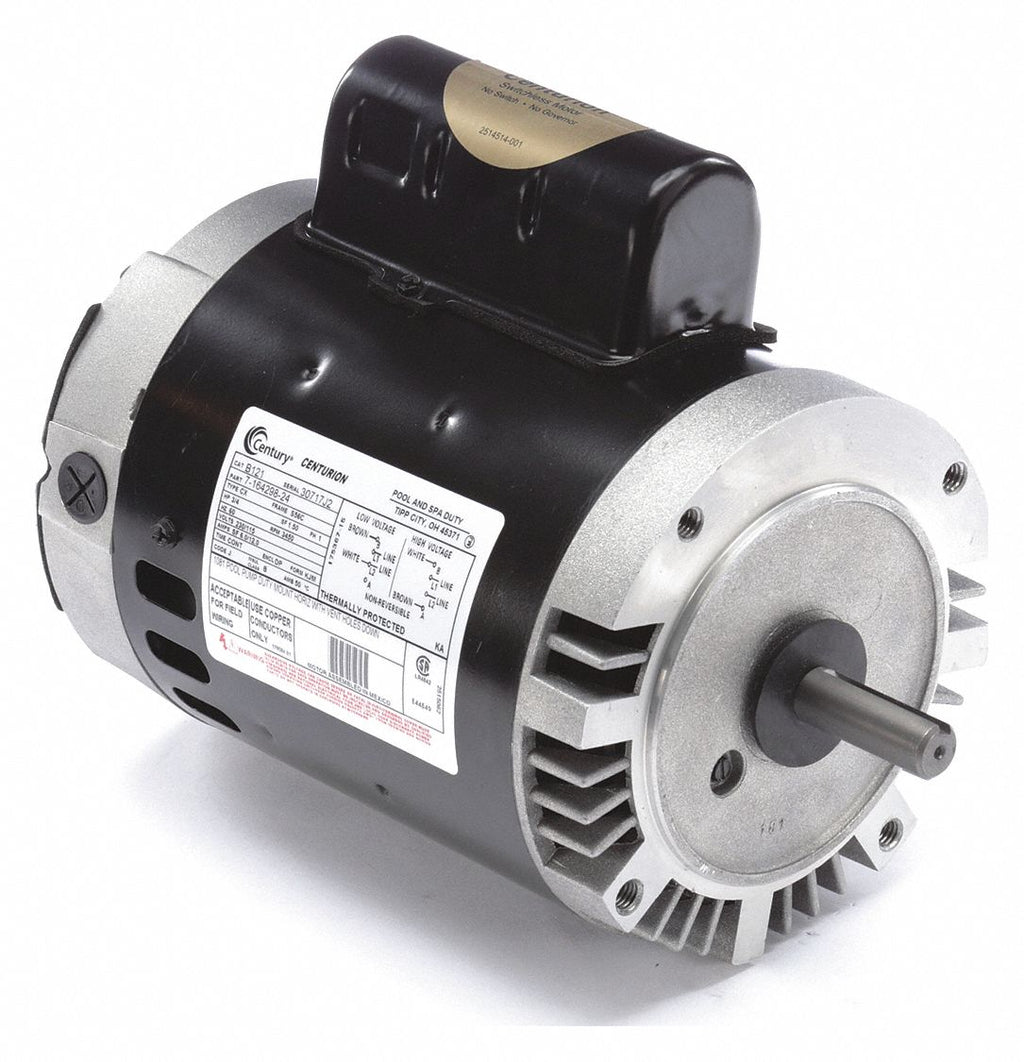

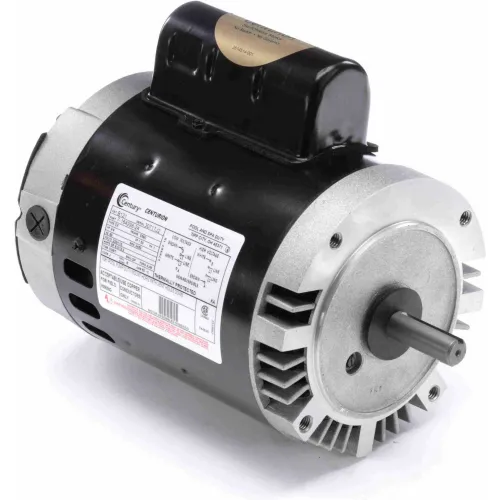

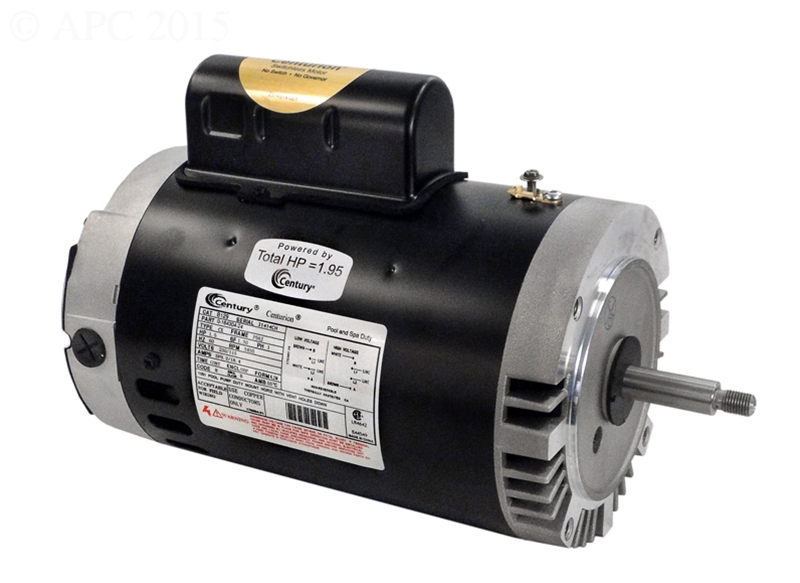

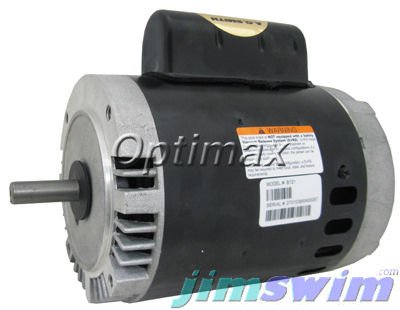

A. O. Smith B121 Motor, 56C Keyed Full .75 Hp

A. O. Smith B121 Motor, 56C Keyed Full .75 Hpzoom

Attributes

Key Value
<span style="color#ff0000;">We cannot shi.
Amps6/12
B121 is listed in Centu.A.O. Smith K48K2N100, E.
Banned StatesThis product is banned .
BearingsBall
Body Dia.6.5 in, 6.5"
BrandCentury
CapacitorIncluded
ColorBlack
Cross Reference #356401
Current Stock9
Duty CycleContinuous
Enclosure TypeODP (Open Dripproof)
FinishBlack
Frame56C
Full Load Amps6.0/12.0, 12.0/6.0
Height11 in
HP3/4
Hz60
Ins. ClassB
Insulation ClassB
International ShippingNo
ItemPool Pump Motor, Pool a.
Lead TimeExpected to ship in 1-2.
Length Less Shaft9 3/8 in, 9 3/8"
ManufacturerCentury Motors
Max. Ambient Temp.50 Degrees C
Max. SF Amps12.0
Maximum Ambient Tempera.50? C
Motor ApplicationPump
Motor BearingsBall
Motor DesignPermanent Split Capacit.
Motor Diameter6-1/2"
Motor Efficiency GroupStandard Efficient
Motor Enclosure DesignOpen Dripproof
Motor Frame MaterialSteel
Motor Mounting TypeFace
Motor Service Factor1.5, 1.50
Motor Shaft DesignKeyed
Motor Shaft RotationCCWSE
Motor Sub ApplicationPool and Spa Pump
Motor Thermal ProtectionAuto
MountingC-Face
MpnB121
Nameplate RPM3,450
No. of Speeds1
Number of Speeds1
Overall Length11 7/16 in, 11 7/16"
Package Quantity1
Phase1, Single
Poolweb Item #B121
Product CategoryPump Motors
Product TypePSC (Permanent Split Ca.
RotationCCW Pump End
RPM3450
RPM Range3,001 - 3,600, 3,001-3,.
Service Factor (SF)1.50
Shaft Dia.5/8 in, 5/8"
Shaft Dia. (In.)5/8
Shaft Diameter5/8" Keyed
Shaft Length2-1/16", 2 1/16 in
Shaft MaterialAISI 1215 Steel
Ship Weight24 lbs.
Shipping Weight35.0 lb
SKUZO-G1298857
StandardsUL Recognized (E44549/E.
Stator TypePermanent Split Capacit.
SubCategoryMotors/Ac Motors
Thermal ProtectionAutomatic
UPC0786674011824
Usable @ 200VNo
Usable @ 208VNo
Voltage220-240V, 115/230V AC, .
Voltage Compatibility115, 120, 230, 240, 115.
Volts115/230
Weight24 lb

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomemotorpro.comB121254.081In StockCentury24.0254.08 @ 1
thumbzoomsustainablesupply.comC1564488259.71In StockCentury22.9259.7 @ 1
thumbzoomgetpoolparts.comB121260.141In StockCentury Motors260.14 @ 1
thumbzoompoolweb.comB121270.091In StockCentury Motors35.0270.09 @ 1
thumbzoomVoomi SupplyB121273.781In StockCentury Motors273.78 @ 1
thumbzoommidwestapplianceparts.comB121-AO-P273.861In StockAO Smith273.86 @ 1
thumbzoomsimsupply.comZO-G1298857279.3719Century279.37 @ 1
thumbzoomNational Supply NetworkB2776449281.771In StockAO SMITH281.77 @ 1
thumbzoomGlobal IndustrialWBB2776449299.951In StockCentury299.95 @ 1
hottubworks.com620034318.991In StockCentury A.O. Smith318.99 @ 1
lesliespool.com620034319.991In StockCentury A.O. Smith319.99 @ 1
grainger.caAOSB121321.430445161In StockCENTURY22.9321.43044516 @ 1
thumbzoomZoroG504935720407.991In StockA.O. Smith407.99 @ 1
thumbzoomRaptor SuppliesAE6AAX441.78901651In StockCENTURY441.7890165 @ 1
