A. O. Smith B124

mpnB124
brandname: Century
manufacturername: Century

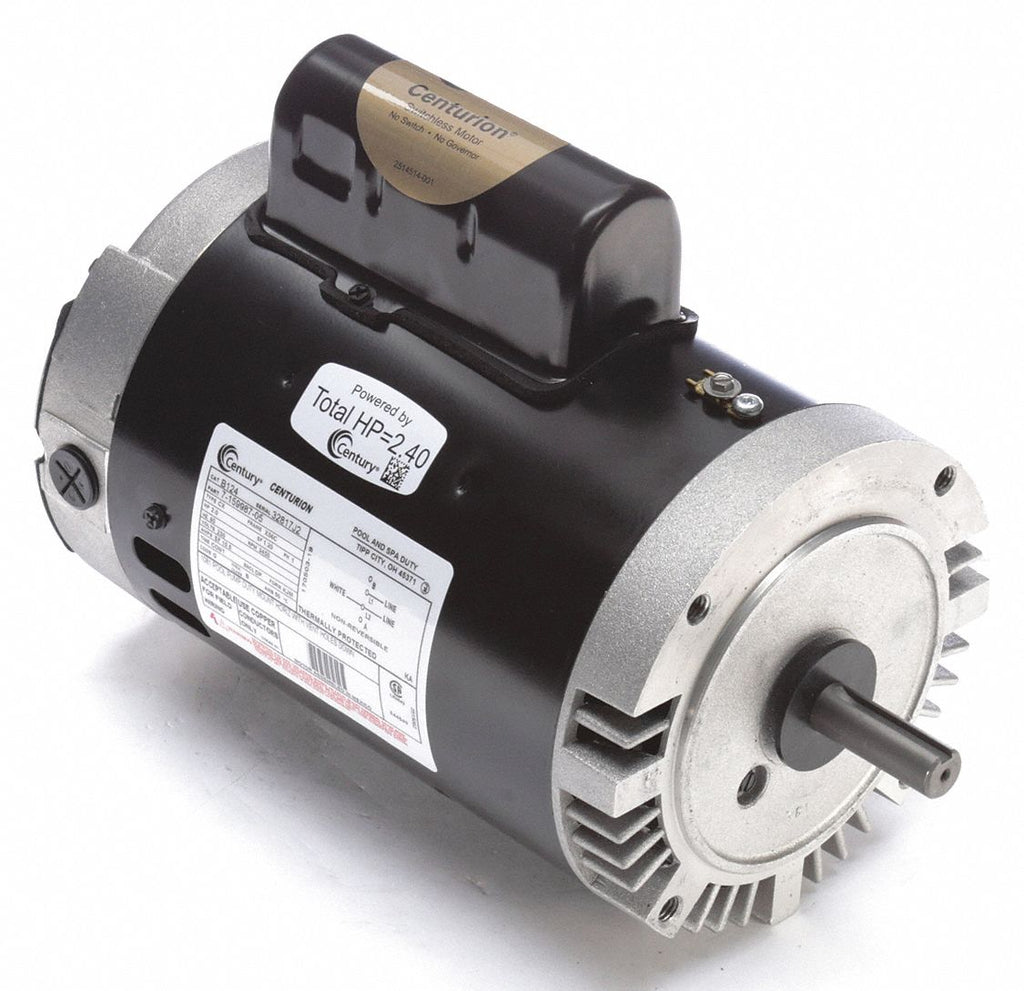

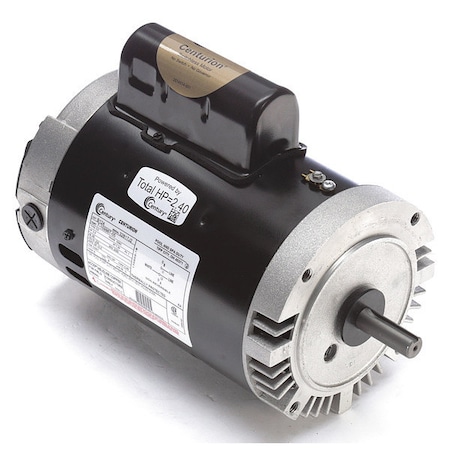

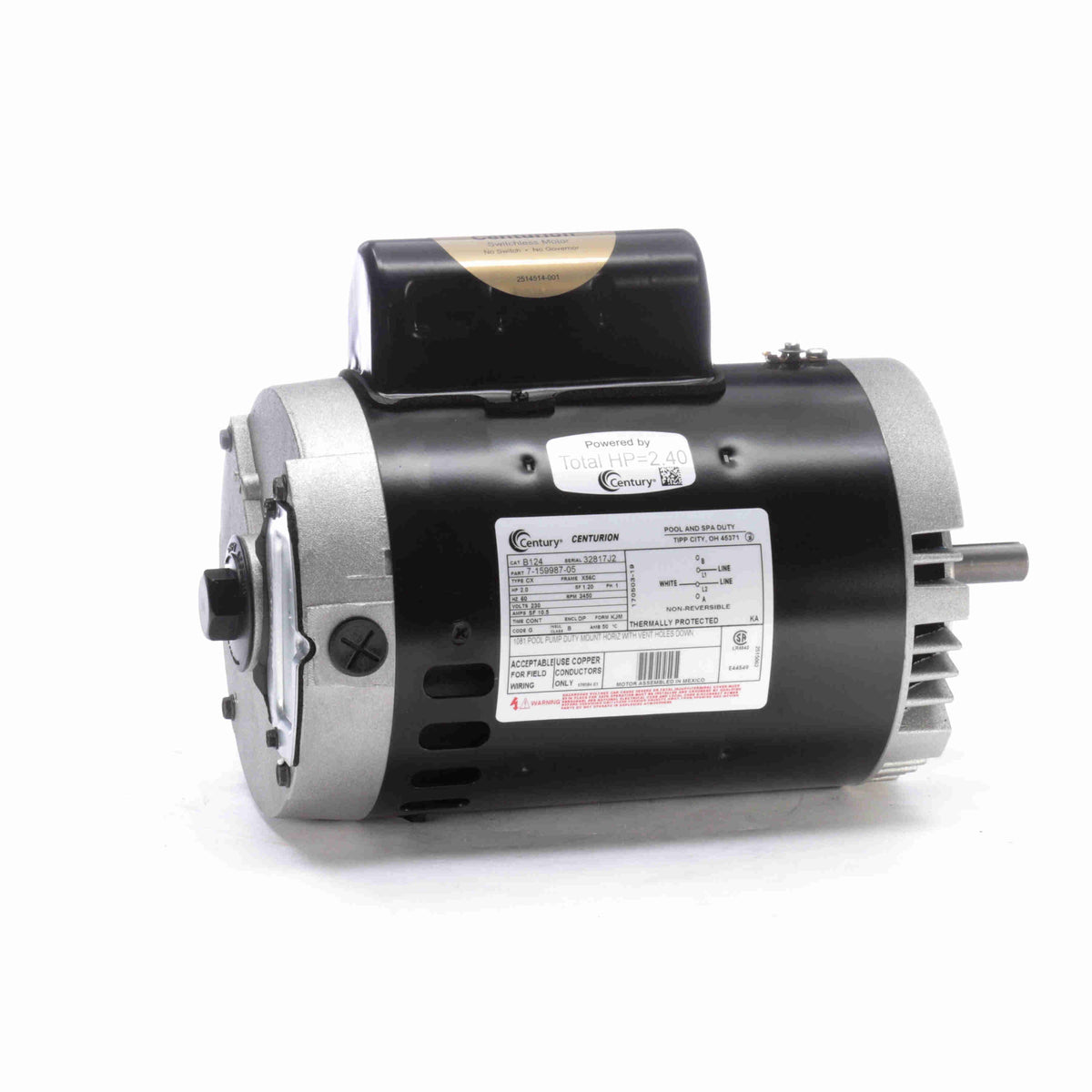

AO Smith Corp Keyed Full Rated 2 Horsepower 230 Volts B124

AO Smith Corp Keyed Full Rated 2 Horsepower 230 Volts B124

zoom

Brand: A. O. Smith
PartNumber: B124
PackageQuantity: 1
Binding: Misc.
Manufacturer: A.O. Smith
Label: A.O. Smith

Attributes

Key	Value
<span style="color	#ff0000;">We cannot shi.
Ambient Temperature	50 Degrees C
Amps	10.5
B124 is listed in Centu.	Franklin 14317, Century.
Bearings	Ball
Body Dia.	6.5 in
Capacitor	Included
Country of Origin (subj.	Mexico
Cross Reference #	356404
Duty Cycle	Continuous
Enclosure Type	ODP (Open Dripproof)
Finish	Black
Frame	56C
Full Load Amps	10.5
Height	11 in
HP	2
Hz	60
Ins. Class	B
Insulation Class	B
Item	Pool Pump Motor
Length Less Shaft	10 1/2 in
Manufacturer	Century Motors
Max. Ambient Temp.	50 Degrees C
Max. SF Amps	10.5
Maximum Ambient Tempera.	50? C
Motor Application	Pump
Motor Bearings	Ball
Motor Design	Permanent Split Capacit.
Motor Diameter	6-1/2"
Motor Efficiency Group	Standard Efficient
Motor Enclosure Design	Open Dripproof
Motor Flange Material	Aluminum
Motor Frame Material	Steel
Motor Mounting Type	Face
Motor Service Factor	1.2
Motor Shaft Design	Keyed
Motor Shaft Rotation	CCWSE
Motor Sub Application	Pool and Spa Pump
Motor Thermal Protection	Auto
Mounting	C-Face
Nameplate RPM	3,450
No. of Speeds	1
Number of Speeds	1
Overall Length	12 9/16 in
Phase	1, Single
Poolweb Item #	B124
Product Category	Pump Motors
Product Type	PSC (Permanent Split Ca.
Rotation	CCW Pump End
RPM	3450
RPM Range	3,001-3,600
Service Factor (SF)	1.20
Shaft	Keyed
Shaft Dia.	5/8 in
Shaft Diameter	5/8" Keyed
Shaft Length	2 1/16 in
Shaft Material	AISI 1215 Steel
Ship Weight	32 lbs.
Shipping Weight	35.0 lb
Standards	CSA (LR43341/LR94643), .
Thermal Protection	Automatic
Usable @ 200V	No
Usable @ 208V	No
Voltage	220-240V, 230V AC
Voltage Compatibility	115/200-230V AC, 115/20.
Volts	230
Weight	32 lb

All Prices

Img	Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Weight	Preferred Tier
	patrickssupply.com	B124	340.93	1	In Stock		CENTURY		340.93 @ 1
	ktool.net	B124	397.24	1	In Stock		Century		397.24 @ 1
	AmazonTP	B004UHEY60	408.81	1	In Stock	5	A.O. Smith		408.81 @ 1
	AmazonUNK	B004UHEY60	408.81	1	In Stock		A.O. Smith		408.81 @ 1
	cshincorporated.com	UB124	409.12	1	In Stock		AO Smith / Century	33.0	409.12 @ 1
	poolweb.com	B124	444.05	1	In Stock		Century Motors	35.0	444.05 @ 1
	emotorpro.com	B124	455.55	1	In Stock		Century	32.0	455.55 @ 1
	Zoro	G3446931	468.69	2	In Stock	26	Century	31.0	468.69 @ 2
	sustainablesupply.com	C1530293	480.53	1	In Stock		Century	31.0	480.53 @ 1
	Voomi Supply	B124	493.47	1	In Stock		Century Motors		493.47 @ 1
	midwestapplianceparts.com	B124-AO-P	502.41	1	In Stock		AO Smith		502.41 @ 1
	Raptor Supplies	AE6ABA	803.37465	1	In Stock		CENTURY		803.37465 @ 1
