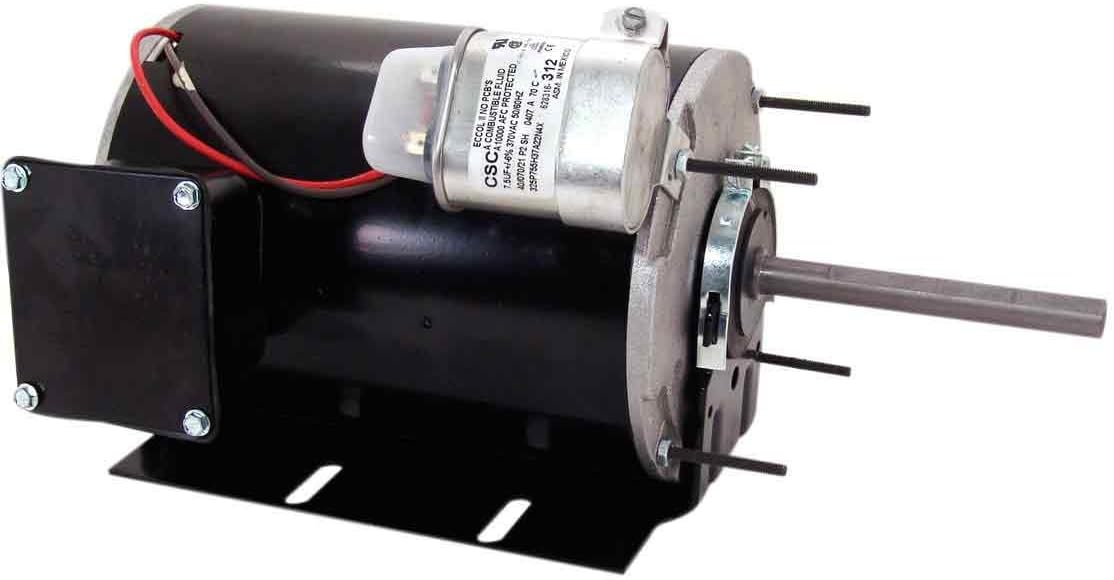

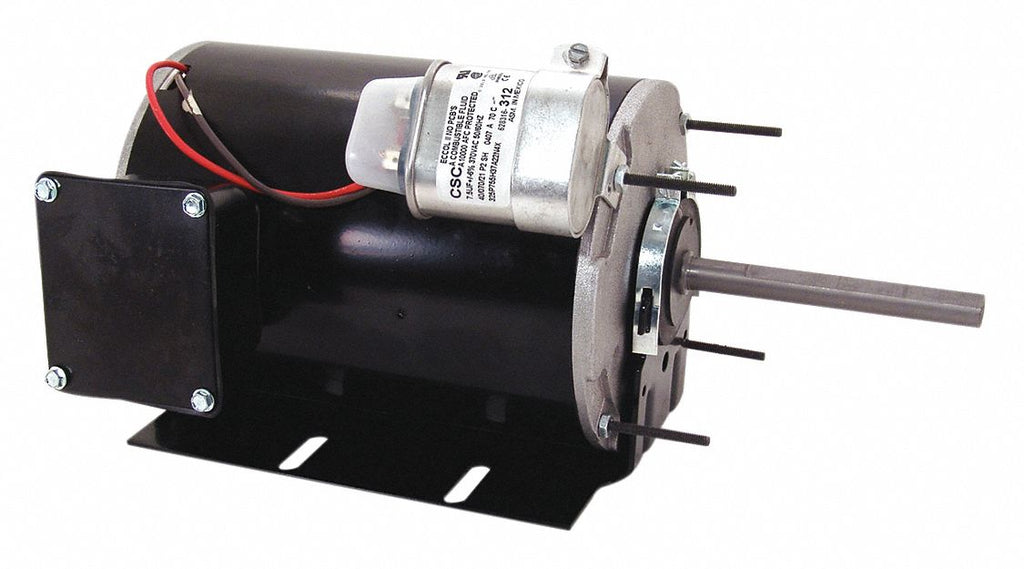

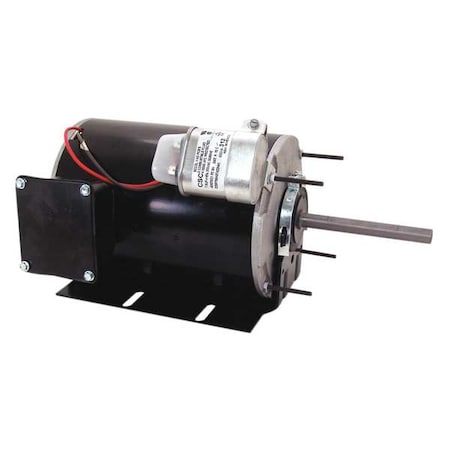

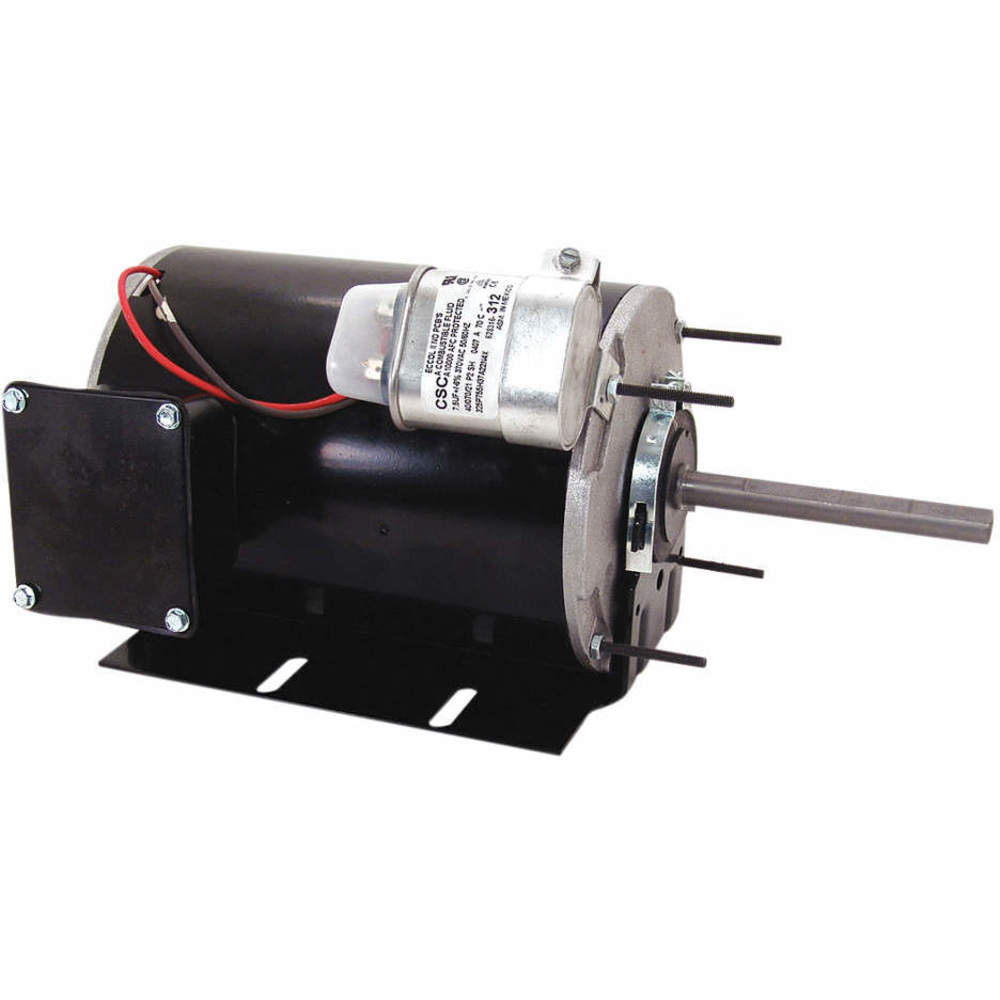

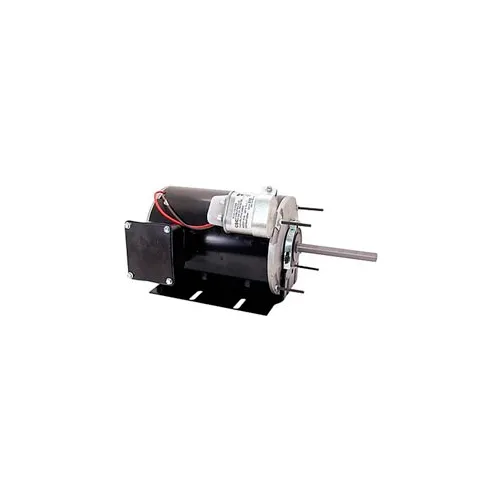

Century FB1056TE

B000LEETUM

Condenser Fan Motor, 1/2 HP, 1075 RPM, 60Hz

Condenser Fan Motor, 1/2 HP, 1075 RPM, 60Hzzoom

Attributes

Key Value
Amps2.4/1.2
ASINB0091BBXRS
Batteries Required?No
BearingsBall
Best Sellers Rank#2,723,004 in Tools & H.
Body Dia.5 5/8 in
Bolt Circle Dia.5 1/8 in
BrandCentury
Capacitor7.5MFD @ 440VAC (Includ.
Current Stock3
Date First AvailableAugust 23, 2012
Duty CycleContinuous
Enclosure TypeTEAO (Totally Enclosed .
FB1056TE is listed in C.A.O. Smith F48U85A01, D.
Frame48Y
HP1/2
Hz60
Ins. ClassB
Insulation ClassB
International ShippingNo
Item model numberFB1056TE
Item Package Quantity1
Item Weight19.65 pounds
Lead TimeExpected to ship in 1-2.
Length Less Shaft8 3/4 in
ManufacturerCentury
Max. Ambient Temp.40 Degrees C
Maximum Ambient Tempera.40? C
Motor DesignPermanent Split Capacit.
Motor Diameter5-5/8"
Motor Enclosure DesignTotally Enclosed Air-Ov.
Motor Mounting PositionVertical Shaft Up
Motor Mounting TypeCradle Base
Motor Shaft RotationCW/CCW
MountingCradle
Mounting Stud Length1 1/2 in
MpnFB1056TE
No. of Speeds1
Number of Speeds1
Overall Length13 3/4 in
Part NumberFB1056TE
Phase1, Single
Product Dimensions14.75 x 7.75 x 7.75 inc.
Product TypePSC (Permanent Split Ca.
Product with faster shi.true
Resilient Ring Dia.2 1/4 in
RotationReversible
RPM1075
RPM Range1,001-1,100
Service Factor (SF)1.00
Shaft Dia.1/2 in
Shaft Diameter1/2"
Shaft Length5-1/2", 5 in
Ship Weight21 lbs.
Shippingundefined (Fixed Shippi.
SKUZO-G2642841
StandardsCSA Certified, UL Recog.
Stud Size#8-32
SubCategoryMotors/HVAC Motors
Thermal ProtectionAutomatic
UNSPSC Code39120000
Voltage208-230/460V AC
Volts208-230/460

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
AmazonTPB0091BBXRS302.561In Stock5Century302.56 @ 1
thumbzoomAmazonB0091BBXRS302.561In StockCentury302.56 @ 1
thumbzoomZoroG2642841342.99120Century19.65342.99 @ 1
thumbzoomSquare OneFB1056TE365.41In StockCENTURY365.4 @ 1
thumbzoomVoomi SupplyFB1056TE384.161In StockCentury Motors384.16 @ 1
thumbzoomemotorpro.comFB1056TE391.661In StockCentury21.0391.66 @ 1
thumbzoomNational Supply NetworkB244998398.661In StockAO SMITH398.66 @ 1
thumbzoomGlobal IndustrialWBB244998399.951In StockCentury399.95 @ 1
thumbzoomsimsupply.comZO-G2642841405.9913Century405.99 @ 1
thumbzoomsustainablesupply.comC1561092413.71In StockCentury19.65413.7 @ 1
thumbzoomhomeessentialsdirect.comFB1056TE428.011In StockCentury19.65428.01 @ 1
hvacdiscountstore.comCEN--FB1056TE451.021In StockCENTURY MOTORS451.02 @ 1
thumbzoomindustrialstores.comFB1056TE459.6111Century Motors by Regal Beloit459.61 @ 1
thumbzoommidwestapplianceparts.comFB1056TE-AO-P516.191In StockAO Smith516.19 @ 1
thumbzoomRaptor SuppliesAD8TLN550.7194681In StockCENTURY550.719468 @ 1
thumbzoomturtle.comAO2 FB1056TE777.341In StockA. O. Smith777.34 @ 1
