AO Smith USQ1102

B00DDXV4LA

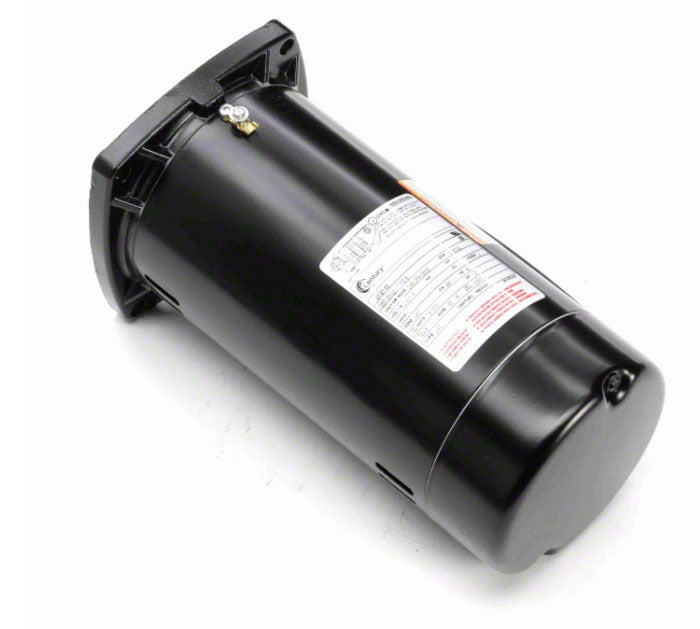

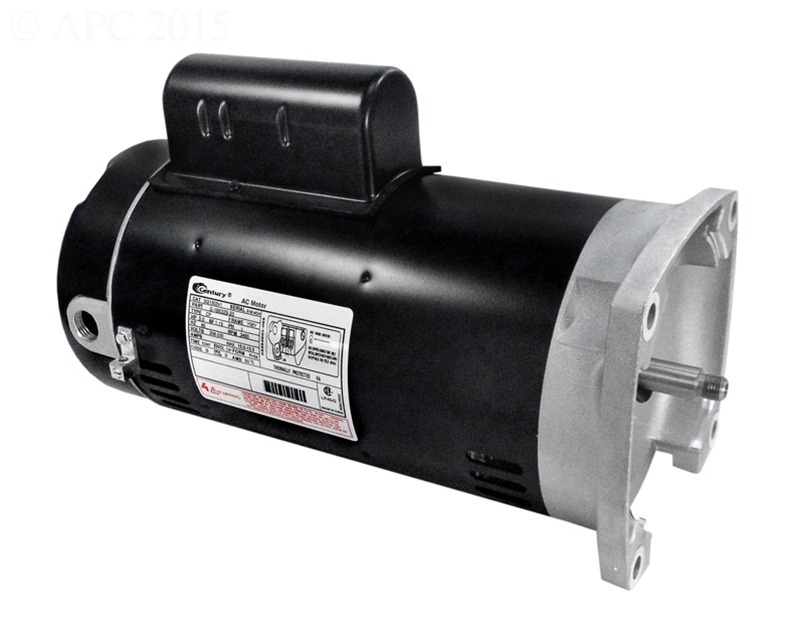

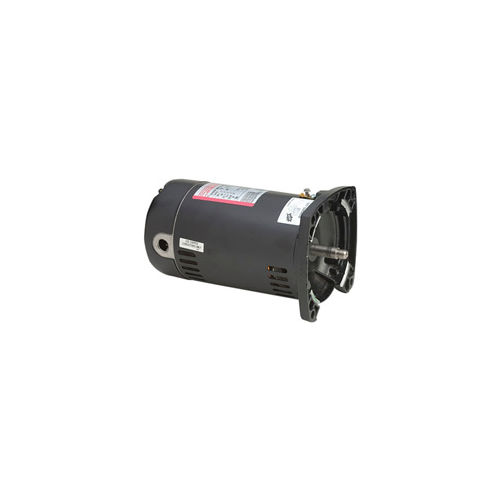

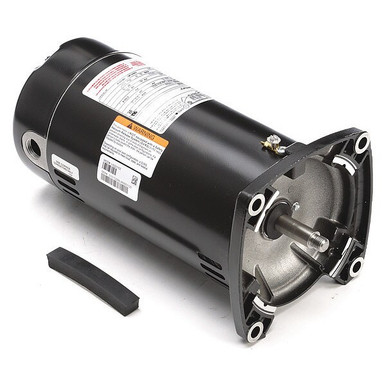

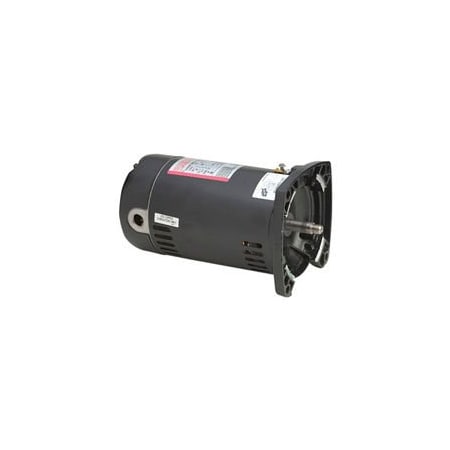

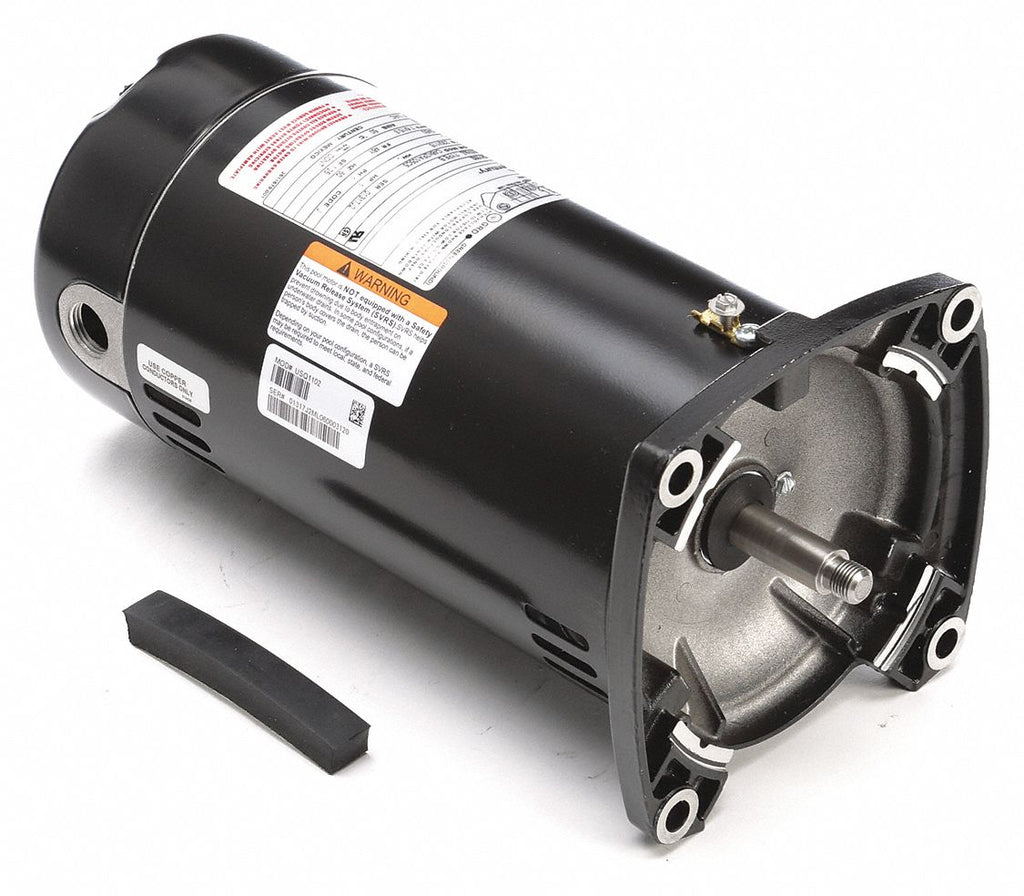

1 hp 3450 RPM 48Y Frame Square Flange 115/230V Pool Motor Century # USQ1102

1 hp 3450 RPM 48Y Frame Square Flange 115/230V Pool Motor Century # USQ1102zoom

Attributes

Key Value
<span style="color#ff0000;">We cannot shi.
Amps15.3/7.6
Banned StatesThis product is banned .
BearingsBall
Body Dia.5.6", 5.6 in
BrandCentury
CapacitorIncluded
Cross Reference #AE100ELL,62003-2025
Current StockIn Stock
Delivery Time2-5 Business Days
Duty CycleContinuous
Enclosure TypeODP (Open Dripproof)
Frame48Y
Full Load Amps15.3/7.6, 14.8/7.4
Height9 1/2 in
HP1
Hz60
Ins. ClassB
Insulation ClassB
International ShippingNo
ItemPool Pump Motor, Square.
Length Less Shaft11 15/16 in, 11 15/16"
ManufacturerCentury Motors, AO Smith
Manufacturer Part #USQ1102
Max. Ambient Temp.50 Degrees C, 50 Degre.
Maximum Ambient Tempera.50? C
Motor ApplicationPump
Motor BearingsBall
Motor DesignCapacitor-Start/Run, Ca.
Motor Diameter5-5/8"
Motor Efficiency GroupStandard Efficient
Motor Enclosure DesignOpen Dripproof
Motor Frame MaterialSteel
Motor Mounting PositionHorizontal
Motor Mounting TypeFace
Motor Service Factor1.25
Motor Shaft DesignThreaded
Motor Shaft RotationCCWSE
Motor Sub ApplicationPool and Spa Pump
Motor Thermal ProtectionAuto
MountingSquare Flange
MpnUSQ1102
Nameplate RPM3,450
No. of Speeds1
Number of Speeds1
Overall Length12 13/16", 12 13/16 in
Phase1, Single
Poolweb Item #USQ1102
Product CategoryPump Motors
Product TypeCapacitor Start
RotationCCW Pump End
RPM3450
RPM Range3,001 - 3,600, 3,001-3,.
Service Factor (SF)1.25
Shaft Dia.5/8 in, 5/8"
Shaft DiameterThreaded
Shaft Length15/16", 15/16 in
Shaft MaterialStainless Steel, 303 St.
Ship Weight22 lbs.
Shipping Weight20.0 lb
SKUZO-G2684202, AOS-60-5074
StandardsCSA, UL
Stator TypeCapacitor-Start
SubCategoryMotors/Ac Motors
Technical Specs<p>Horsepower: 1 HP
Thermal ProtectionAutomatic
Usable @ 200VNo
Usable @ 208VNo
USQ1102 is listed in Ce.A.O. Smith 186359, A.O..
Voltage120/220-240V, 115/230V .
Voltage Compatibility115/200-230V AC, 115/20.
Volts115/230
Weight22 lb

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
AmazonTPB00DDXV4LA176.01In Stock2A.o. Smith176.0 @ 1
thumbzoomktool.netUSQ1102214.11In StockCentury214.1 @ 1
poolzoom.comAOS-60-5074229.91345Century22.0229.9 @ 1
Grainger5PE32233.51In StockCENTURY22.0233.5 @ 1
thumbzoomVoomi SupplyUSQ1102245.531In StockAO Smith245.53 @ 1
thumbzoomsimsupply.comZO-G2684202252.411In StockCentury252.41 @ 1
thumbzoomMRO Supply6455402252.941In StockCentury252.94 @ 1
thumbzoomemotorpro.comUSQ1102253.381In StockCentury22.0253.38 @ 1
yourpoolhq.comAOS-60-5074254.991In StockAO Smith254.99 @ 1
thumbzoomgetpoolparts.comUSQ1102264.441In StockCentury Motors264.44 @ 1
thumbzoompoolweb.comUSQ1102266.661443Century Motors20.0266.66 @ 1
thumbzoomsustainablesupply.comC1564524267.611In StockCentury21.2267.61 @ 1
Wild West Pool SuppliesUSQ1102267.831In StockA.O. Smith25.58267.83 @ 1
thumbzoomNational Supply NetworkB185876271.941In StockAO SMITH271.94 @ 1
thumbzoommidwestapplianceparts.comUSQ1102-AO-P282.21In StockAO Smith282.2 @ 1
thumbzoomGlobal IndustrialWBB185876285.951In StockCentury285.95 @ 1
hvacdiscountstore.comCEN--USQ1102320.021In StockCENTURY MOTORS320.02 @ 1
grainger.caAOSUSQ1102326.670764481In StockCENTURY21.2326.67076448 @ 1
ptacsolutions.comUSQ1102345.461In StockA.O. Smith345.46 @ 1
thumbzoomZoroG604935774409.181In StockA.O. Smith409.18 @ 1
thumbzoomRaptor SuppliesAE6AUQ418.25762551In StockCENTURY418.2576255 @ 1
uri.comUSQ1102648.741In StockCentury1.0099648.74 @ 1
