Climax Metal C133M-60X90

B002KW2G9Y

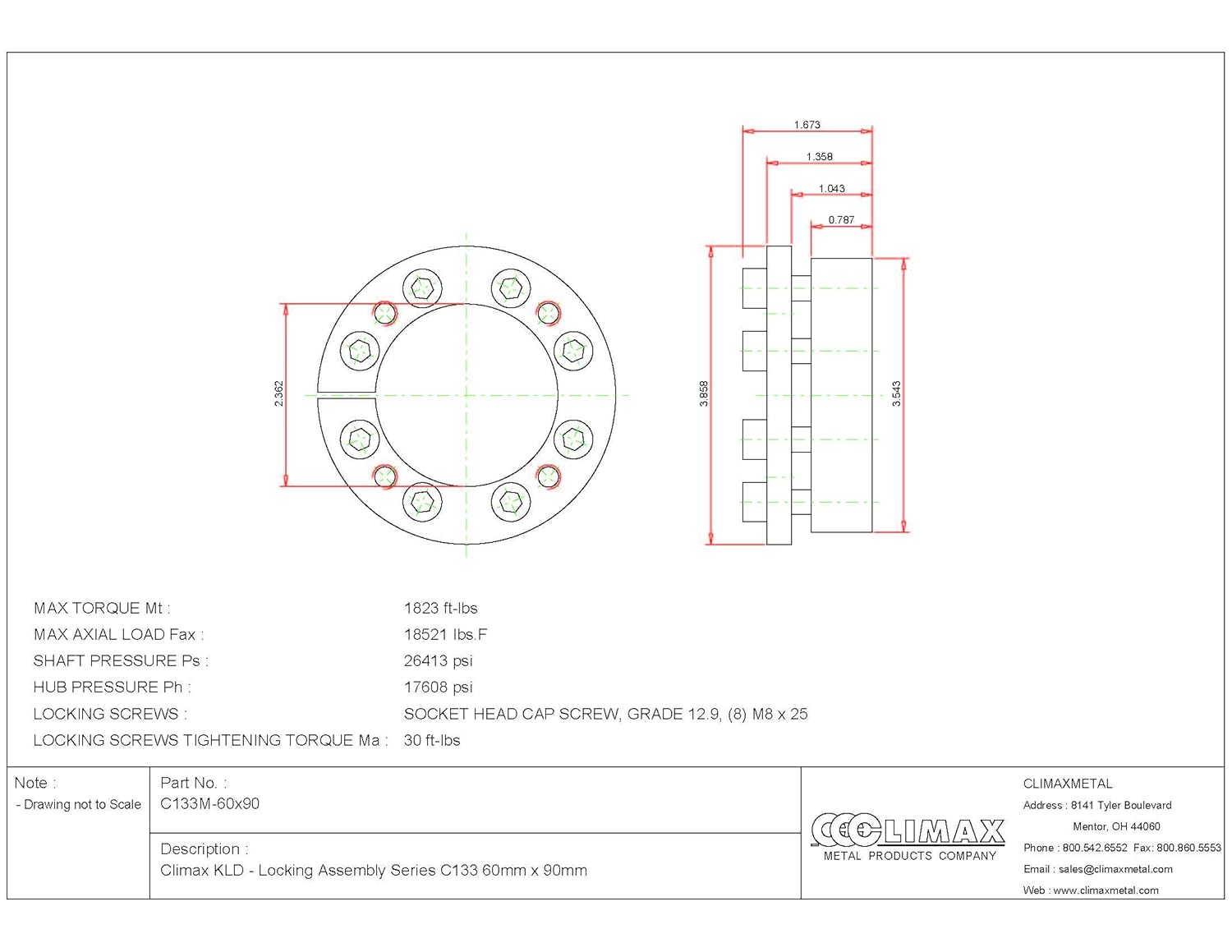

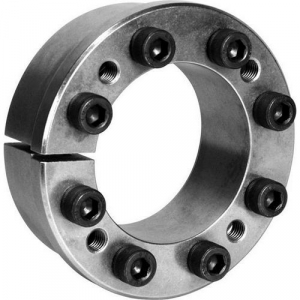

C133M-60X90-60mm x 90mm Locking Assembly Series C133

C133M-60X90-60mm x 90mm Locking Assembly Series C133zoom

Attributes

Key Value
Bolt SizeM8 x 25
D3.543 in
d2.362 in
D13.858 in
For Bore Diameter60 mm
For Shaft Dia. - Bushin.60 mm
Hub Machining Tolerance+.002 in
ItemKeyless Bushing
Keyless Bushing SeriesC133M
Keyless Bushing TypeMulti-Screw Locking Ass.
L0.787 in
L11.043 in
L21.358 in
L31.673 in
Locking Screws Quantity8
Locking Screws SizeM8 x 25
Material - BushingsSteel
Number of Tightening Bo.Multiple Pieces
Outside Dia.90 mm
Outside Dia. (In.)3.543
Outside Dia. (mm)90
Outside Dia. Tolerance+0/-.002 in
Outside Diameter90 mm
Outside Diameter Tolera.+0/-.002 in
Overall Length42.5 mm
Overall Length (In.)1.673
Overall Length (mm)42.5
Overall Width42.5 mm
Screw Thread SizeM8 x 25
Shaft Dia. (In.)2.362
Shaft Dia. (mm)60
Shaft Dia. Tolerance+0/-.002 in
Shaft Machining Toleran.-.002 in
Shaft Size60 mm
Transmissible Thrust (L.18,520.704
Transmissible Torque152 ft-lb
Weight1.90 lb

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomZoroG021086971.2911Climax Metal Products2.071.29 @ 1
thumbzoomMRO Supply74633077.01In StockClimax Metal77.0 @ 1
thumbzoomAmazonB01I37S2OM79.771In StockClimax Metals79.77 @ 1
thumbzoomMegadepotC133M-60X9087.691In StockClimax Metal1.987.69 @ 1
thumbzoomusmegastore.comC133M-60X9088.091In StockClimax Metal1.988.09 @ 1
thumbzoomheavydutydepot.comC133M-60X9088.092In StockClimax Metal88.09 @ 2
thumbzoomMisumi USAC133M-60X9094.531In Stock17Climax Metal Products94.53 @ 1
thumbzoomRaptor SuppliesAH7RCK128.86397551In StockCLIMAX METAL PRODUCTS128.8639755 @ 1
Grainger38AT46129.41In Stock15CLIMAX METAL PRODUCTS129.4 @ 1
thumbzoomNational Supply Network87794079140.771In StockClimax Metal Products140.77 @ 1
motionindustries.com02771847193.721In StockClimax Metal Products193.72 @ 1
thumbzoombscsource.comC133M60X90195.491In StockClimax Metal Products195.49 @ 1
