DIODES ZVN4424A

B06VSVMZXW

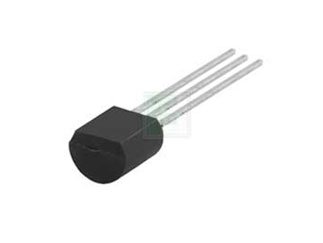

DIODES ZVN4424A N-Channel 240 V 260 mA 750 mW Vertical Mode DMOS FET - TO-92 - 5 item(s)

DIODES ZVN4424A N-Channel 240 V 260 mA 750 mW Vertical Mode DMOS FET - TO-92 - 5 item(s)zoom

Attributes

Key Value
Alternate Mfr Part Numb.1574619P
Alternate Part No.522-ZVN4424A
Base Product NumberZVN4424
BrandDiodes Incorporated
CaseTO92S
CategoryDiscrete Semiconductor .
Channel ModeEnhancement
ConfigurationSingle
Current - Continuous Dr.260mA (Ta)
DescriptionMOSFET N-CH 240V 260MA .
Detailed DescriptionN-Channel 240 V 260mA (.
Digi-Key Part NumberZVN4424A-ND
Drain to Source Voltage.240 V
Drive Voltage (Max Rds .2.5V, 10V
Fall Time5 ns
FET Feature-
FET TypeN-Channel
Id - Continuous Drain C.260 mA
Input Capacitance (Ciss.200 pF @ 25 V
ManufacturerDiodes Incorporated, Di.
Manufacturer Part No.ZVN4424A
Manufacturer Product Nu.ZVN4424A
Manufacturer Standard L.40 Weeks
Maximum Operating Tempe.+ 150 C
MfrDiodes Incorporated
Minimum Operating Tempe.- 55 C
Mounting StyleThrough Hole
Mounting TypeThrough Hole
Operating Temperature-55?C ~ 150?C (TJ)
PackageBulk
Package / CaseTO-226-3, TO-92-3 (TO-2.
Package/CaseTO-92-3
PackagingBulk
Pd - Power Dissipation750 mW
Power Dissipation (Max)750mW (Ta)
Product CategoryMOSFET
Product StatusActive
Rds On (Max) @ Id, Vgs5.5Ohm @ 500mA, 10V
Rds On - Drain-Source R.6 Ohms
Rise Time5 ns
Series-, ZVN Series
SKU530925
Supplier Device PackageTO-92
TechnologyMOSFET (Metal Oxide)
Transistor PolarityN-Channel
TypeTransistor N Channel MO.
Typical Turn-Off Delay .40 ns
Vds - Drain-Source Brea.240 V
Vgs (Max)?40V
Vgs - Gate-Source Break.40 V
Vgs(th) (Max) @ Id1.8V @ 1mA

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
Newark82AC06280.4854000770DIODES INC.0.485 @ 4000
HotendaH18101991.0618216Diodes Incorporated1.06 @ 1
us.rs-online.com704387201.062594Diodes Inc1.06 @ 25
thumbzoomDigi-Key1901481.332175Diodes Incorporated1.332 @ 1
RS Delivers157-4619P1.638194DiodesZetex1.638 @ 1
thumbzoomswatee.comZVN4424A2.013110Diodes Incorporated2.0 @ 1
Future Electronics86867192.52400094Diodes Incorporated2.52 @ 4000
Little DiodeZVN4424A5.933128514Diodes Inc.5.9331285 @ 1
AmazonTPB00HKIB7AC5.991942DIODES INC.5.99 @ 1
