Dwyer 628-09-GH-P1-E4-S1

B00NG3AW5Q

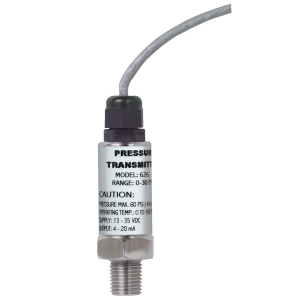

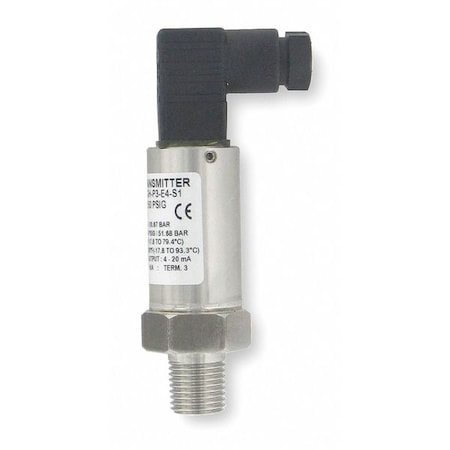

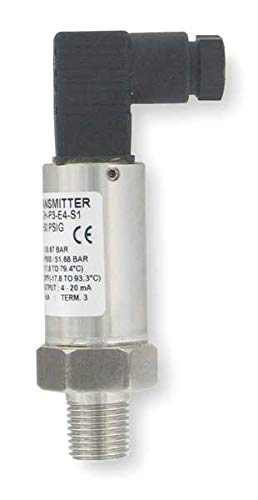

Dwyer 628-09-GH-P1-E4-S1 Industrial 316 SS Pressure Transmitter, 0-50 psi

Dwyer 628-09-GH-P1-E4-S1 Industrial 316 SS Pressure Transmitter, 0-50 psizoom

Attributes

Key Value
Accuracy+/-1% of Full Scale, 1..
Accuracy - Transmitter+/-1.00%
Agency ApprovalsCE
ApprovalsCE, NSF, UL
BrandDwyer Instruments
Calibration Certificate.No
Compensated Temperature.0 to 175?F (-18 to 79?C)
Current Consumption38 mA maximum
Current Stock9
Electrical ConnectionM12 Connector
Electrical Connections4-Pin DIN 43650 Form C .
Electrical Connections .Mini-Hirschmann Connect.
Enclosure RatingNEMA 4X (IP66)
Explosion/Fire ProofNo
Family SeriesDwyer Instruments Senso.
FeaturesProtection in Harsh Env.
For Use With Media TypeCompressors, Hydraulics.
Gross Weight0.255 lbs
HousingStainless Steel
Housing MaterialStainless Steel
IncludesInstructions
International ShippingNo
Intrinsically SafeNo
IP RatingIP65, IP66
ItemPressure Transmitter
Item Number628-09-GH-P1-E4-S1
Lead TimeExpected to ship in 1-2.
Loop Resistance0-1000 Ohms max. R max .
ManufacturerDwyer Instruments
Manufacturer Part Number628-09-GH-P1-E4-S1
Manufacturers Warranty .1 yr
Max Pressure50 psi
Maximum Loop Resistance0 to 1,000 Ohm Max
Maximum Operating Tempe.200 Degrees F
Maximum Pressure50 psi
Measurement Range0-50 psi
Measurement Unitspsi
Minimum Operating Tempe.0 Degrees F
Minimum Pressure0 psi
Mounting OrientationMount in any position
Mounting Type1/4" NPTM
Mpn628-09-GH-P1-E4-S1
NEMA RatingNEMA 4X
Net Weight0.18 lbs
NIST Traceable Certific.No
Number of Wires2
Operating Temp. - Trans.0 Degrees to 200 Degre.
Output4 to 20mA DC, 4-20 mA, .
Output - Transmitter4 to 20mA DC
Output Signal4-20 mA
Output Type2-Wire
Overall Height3.5 in
Overall Length5.5 in
Overall Width1.281 in
Overpressure300 psig
Power Required10 to 30V DC
Power Required - Transm.13 to 30V DC
Power Requirements10-30 VDC
Pressure LimitsMaximum Pressure: 100 p.
Pressure Range0-50 psi
Pressure Unitspsig
Process Connection1/4 " NPT Male, 1/4" Ma.
Process Connection Gend.Male
Process Connection Size1/4 in
Process Connection Size.1/4 in
Process Connection TypeNPT
Process Connection Type.MNPT
Product Series628
Range0 to 50 psi
Range Units - Transmitt.psi
Range Values - Transmit.0 to 50
Response Time300 msec, 300 ms.
Series628, 626
ServiceCompatible gases and li.
SKUZO-G0057023
Stability1.0% FS/year (Typ.)
StandardsCE, NSF, UL Listed
SubCategoryTest Instruments
Supply Voltage10-30 VDC
Temperature Limit0 to 200?F (-18 to 93?C)
Temperature Range0-200 ?F
Thermal Effect?0.02% FS/?F. (includes.
Thermal Error+/-0.04%
Transmitter TypePressure Transmitter
TypeGauge
Type of PressureGauge
Weight10 oz (283 g), 10 oz
Wetted MaterialsType 316L SS, 316 SS an.
Wetted Materials - Tran.316 Stainless Steel, 31.
Wiring Entry - Transmit.1/2 in FNPT

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
AmazonSCB00NG3AW5Q110.721In StockDwyer110.72 @ 1
Grainger3DRL3123.51110DWYER INSTRUMENTS123.5 @ 1
thumbzoomGalco628-09-GH-P1-E4-S1-DWYR124.561In StockDwyer Instruments0.255124.56 @ 1
thumbzoomZoroG0057023132.99128Dwyer0.3132.99 @ 1
thumbzoomNewark82AK9721135.51In StockDWYER135.5 @ 1
thumbzoomMegadepot628-09-GH-P1-E4-S1136.11In StockDwyer0.625136.1 @ 1
thumbzoomusmegastore.com628-09-GH-P1-E4-S1141.71In StockDwyer0.625141.7 @ 1
thumbzoomheavydutydepot.com628-09-GH-P1-E4-S1141.71In StockDwyer Instruments141.7 @ 1
thumbzoomsimsupply.comZO-G0057023153.9419Dwyer Instruments153.94 @ 1
alliedcontrols.com628-09-GH-P1-E4-S1157.51In StockDwyer157.5 @ 1
us.rs-online.com71431702181.6112Dwyer Instruments181.61 @ 1
thumbzoomcappusa.com4124976185.931In StockDwyer185.93 @ 1
grainger.caWWG3DRL3192.534557621In StockDWYER INSTRUMENTS0.3192.53455762 @ 1
thumbzoomRaptor SuppliesAC8TTH315.93071251In StockDWYER INSTRUMENTS315.9307125 @ 1
