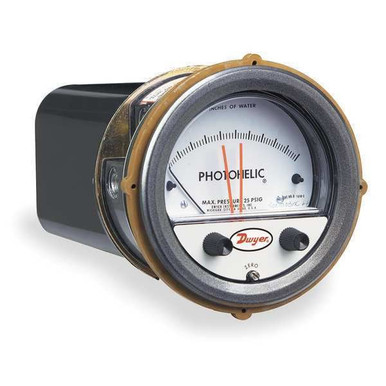

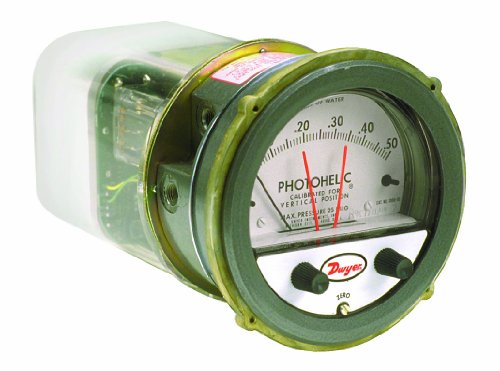

Dwyer Photohelic Series A3000 Pressure Switch/Gauge, Range 0-10"WC & 2000-12500 FPM AV
- Brand: Dwyer
- PartNumber: A3010AV
- Model: A3010AV
- Color: Clear
- Size: 0-10"WC & 2000-12500 FPM AV
- PackageQuantity: 1
- Binding: Misc.
- Manufacturer: Dwyer Instruments
- Label: Dwyer Instruments
Attributes
| Key | Value |
|---|
| Accuracy | ?2% of FS at 70?F (21.1. |
| Accuracy Details | +/-2% of FS at 70 Degre. |
| Adjustable Set Points | Yes |
| Agency Approvals | CE, CSA, UL |
| Air Velocity Range | 2000 to 12,500 fpm |
| Application | Fume Exhaust Systems |
| Approvals | CE, CSA, UL, CE, CSA an. |
| Basic Gauge Case Materi. | Metal |
| Blowout Safety Back | No |
| Body Material | Die Cast Aluminum |
| Bolt Circle Diameter | 5.125 in, 5.125" |
| Brand | Dwyer Instruments |
| Case Depth | 2.5", 2.5 in |
| Case Diameter | 5 in, 5" |
| Case Material | Plastic |
| Case Shape | Round |
| Case Size | 5.5 " |
| Case Style | Round |
| Compatible Process Media | Air, Non-Combustible an. |
| Connection | 1/8 NPT |
| Connections | 1/8" female NPT |
| Contact Rating | 10A @ 120/240VAC, 10A @. |
| Current Stock | 397 |
| Dial Colour | White |
| Dial Type | Analog |
| Differential Gauge Conn. | 1/8 in |
| Differential Gauge Conn. | FNPT |
| Differential Pressure G. | Differential Pressure G. |
| Differential Pressure R. | in wc |
| Differential Pressure R. | 0 to 10 |
| Dimensions | 5 x 5 x 7.81 |
| Dual Scale | Yes |
| Electrical Connections | Screw terminals. Use 16. |
| Electrical Rating | 10A @ 28 VDC, 10A @ 120. |
| English | 0 - 10 / 2000 - 12500 . |
| Family Series | Dwyer Instruments Panel. |
| Flange Diameter | 5.5", 5.5 in |
| For Panel Cut-Out Size | 4.812 in, 4.812" |
| Gauge Accuracy | +/-2.00% |
| Gauge Case Material | Plastic |
| Gauge Connection Locati. | Side |
| Gauge Nominal Dial Size | 5 in |
| Gauge Operating Temp. R. | 20 Degrees to 120 Degr. |
| Gross Weight | 0 lbs |
| Hazardous Location Rati. | Not Rated |
| Housing | Plastic |
| Housing Material | Die Cast Aluminum |
| Includes | Instructions |
| Includes Calibration Ce. | No |
| Includes Mounting Hardw. | No |
| Includes Vent Plug | No |
| International Shipping | No |
| IP/NEMA Rating | Not Rated |
| Item | Differential Pressure G. |
| Item Number | A3010AV |
| Lead Time | Expected to ship in 1-2. |
| Lens Material | Polycarbonate |
| Manufacturer | Dwyer Instruments |
| Manufacturer Part Number | A3010AV |
| Manufacturer Warranty L. | 1 yr |
| Manufacturers Warranty . | 1 yr |
| Maximum Value | 10/12,500 |
| Minimum Value | 0/2,000 |
| Mounting Orientation | Diaphragm in vertical p. |
| Mounting Position | Diaphram Vertical |
| Mounting Type | Flush-Mount |
| Mpn | A3010AV |
| Net Weight | 4 lbs |
| Nominal Dial Size | 4", 4 in |
| Non-Sparking | No |
| Number of Switches | 2 |
| Panel-Mountable | Yes |
| Pointer Colour | Black |
| Power Requirements | 120 VAC, 50/60 Hz |
| Pressure Gauge Type | Differential Pressure G. |
| Pressure Limits | -20" Hg. to 25 psig (-0. |
| Pressure Range | 0 to 10" wc |
| Process Connection Gend. | Female |
| Process Connection Loca. | Side |
| Process Connection Size | 1/8", 1/8 in |
| Process Connection Type | NPT |
| Process Connections | 1/8" female NPT |
| Process Temperature Ran. | 20 Degrees to 120 Degr. |
| Product Series | A3000 |
| Range | 0-10 " WC, 2,000-12,500. |
| Rated Total Pressure | -20" Hg to 25 psi, -20 . |
| Relay Type | (2) DPDT |
| Removable Bezel | Yes |
| Repeatability | +/-1%, ?1% of FS |
| Sensor Type | Diaphragm |
| Series | A3000 Series, A3000 Pho. |
| Service | Air and non-combustible. |
| Set Point Adjustment | Adjustable knobs on face |
| SKU | ZO-G1117347 |
| Standards | CE/UL/CSA |
| SubCategory | Test Instruments |
| Switch Contact Type | DPDT |
| Switch Electrical Requi. | 10A @ 28V DC: 10A @ 120. |
| Switch Type | Each setpoint has 2 For. |
| Temperature Limits | 20 to 120?F. (-6.67 to . |
| Units | Dual Scale: in W.C, FPM |
| Weight | 4 (lb), 4 lb (1.81 kg) |
| Window Composition | Plastic |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
| Grainger | 4ME91 | 418.0 | 1 | 10 | 0 | DWYER INSTRUMENTS | | 418.0 @ 1 |
 | sustainablesupply.com | C1757333 | 485.22 | 1 | In Stock | | Dwyer Instruments | 4.7 | 485.22 @ 1 |
 | Zoro | G1117347 | 554.99 | 1 | 423 | | Dwyer Instruments | 4.7 | 554.99 @ 1 |
| us.rs-online.com | 70334255 | 588.32 | 1 | In Stock | | Dwyer Instruments | | 588.32 @ 1 |
 | Megadepot | A3010AV | 597.0 | 1 | In Stock | | Dwyer | 4.0 | 597.0 @ 1 |
 | usmegastore.com | A3010AV | 597.0 | 1 | In Stock | | Dwyer | 4.0 | 597.0 @ 1 |
 | heavydutydepot.com | A3010AV | 597.0 | 1 | In Stock | | Dwyer Instruments | | 597.0 @ 1 |
 | Galco | A3010AV-DWYR | 597.07 | 1 | In Stock | | Dwyer Instruments | 4.0 | 597.07 @ 1 |
 | Solutions Direct | A3010AV | 610.53 | 1 | In Stock | | Dwyer Instruments | 4.0 | 610.53 @ 1 |
 | cappusa.com | 95279 | 611.94 | 1 | In Stock | | Dwyer | | 611.94 @ 1 |
 | industrialzone.com | A3010AV | 629.0 | 1 | In Stock | | Dwyer | 2.0 | 629.0 @ 1 |
 | simsupply.com | ZO-G1117347 | 666.32 | 1 | 397 | | Dwyer Instruments | | 666.32 @ 1 |
 | Newark | 82AK6047 | 668.7 | 1 | In Stock | | DWYER | | 668.7 @ 1 |
| grainger.ca | WWG4ME91 | 683.5640908 | 1 | In Stock | | DWYER INSTRUMENTS | 4.7 | 683.5640908 @ 1 |
 | blackhawksupply.com | A3010AV | 711.47 | 1 | In Stock | | Dwyer | | 711.47 @ 1 |
| alliedcontrols.com | A3010AV | 765.0 | 1 | In Stock | | Dwyer | | 765.0 @ 1 |
 | Raptor Supplies | AD8TVA | 934.0487325 | 1 | In Stock | | DWYER INSTRUMENTS | | 934.0487325 @ 1 |
