- mpn289004
- brandname: GREENFIELD THREADING
- manufacturername: GREENFIELD THREADING

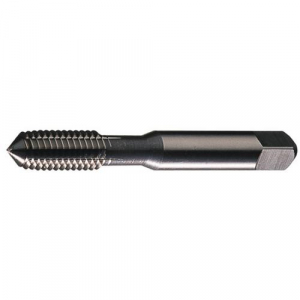

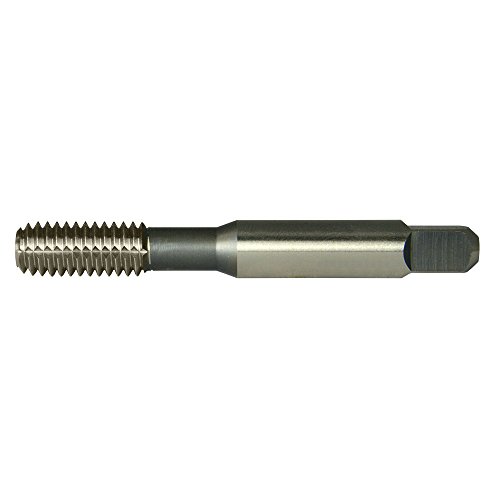

Greenfield Threading 289004 GT/VTD #4-40NC FTGP H3 GP Plug Form Tap
- Brand: Vermont Tap & Die
- PartNumber: 289004
- Model: 289004
- Size: #4 - 40 Unc
- PackageQuantity: 1
- Binding: Misc.
- Manufacturer: Greenfield Industries
- Label: Greenfield Industries
Attributes
| Key | Value |
|---|
| 55% Thread Drill Size | 2.60mm, 2.60 mm |
| 65% Thread Drill Size | 2.55mm, 2.55 mm |
| 75% Thread Drill Size | 2.52 mm, 2.52mm |
| Application | Blind Hole |
| Brand | Greenfield Threading |
| Chamfer Type | Plug |
| Class of Fit | 2B |
| Cutting Direction | Right Hand |
| Diameter | 0.1120" |
| Extended Neck | Yes |
| Finish/Coating | Bright |
| Flute Type | Straight |
| Hand of Cut | Right, Right Hand Cut |
| Item | Machine Tap, Thread For. |
| Length of Cut | 2 in |
| List Number | FTGP |
| Material | HSS, High-Speed Steel |
| Material Grade - Machin. | FTGP |
| Measurement System | Imperial |
| Number of Flutes | 0 |
| Number of Pieces | 1 |
| Overall Length | 1.875 in, 1 7/8 in, 1-7. |
| Overall Length (Metric) | 47.63mm |
| Package Quantity | 6 per case |
| Pitch Diameter Limit | H3 |
| Primary Material Applic. | Aluminum, Brass, Bronze. |
| Primary Material Applic. | N, P |
| Product Type | Plug Machine Tap |
| Series | FTGP |
| Shank Configuration | Straight with Square, S. |
| Shank Dia. | 0.141" |
| Shank Diameter | 0.11 in |
| Shank End | Square |
| Shank Length | 1 9/32 in |
| Shank Size | 0.141 in, 0.1410" |
| Shank Size (Metric) | 3.58mm |
| Shank Square Length | 0.1875" |
| Shank Square Length (Me. | 4.76mm |
| Shank Square Width | 0.1100" |
| Shank Square Width (Met. | 2.79mm |
| Spiral Direction | Neutral |
| Square Size | 0.11 in, 0.1100 in |
| Standards | USCTI Table 302A, USCTI. |
| Style | FTGP |
| Surface Condition | Bright |
| Surface Finish | Bright |
| Tap Blank Construction | USCTI Table 302A |
| Tap Chamfer | Plug |
| Tap Construction | Plug, Standard |
| Tap Dimension Type | Inch |
| Tap Finish | Bright, Bright (Uncoate. |
| Tap Ground Threads | Yes |
| Tap Grouping | Tap |
| Tap Interrupted Thread | No |
| Tap Limit | H3 |
| Tap Material | High Speed Steel |
| Tap Neck Length | 0.5625 in, 0.5625" |
| Tap Size | #4 |
| Tap Spiral Point | No |
| Tap Style | Thread Forming, Thread . |
| Tap Thread Size | #4-40 |
| Tap Thread Type | UNC |
| Tap Truncated Threads | No |
| Tap Type | Machine Tap |
| Thread | #4-40 |
| Thread Creation | Thread Forming |
| Thread Direction | Right Hand |
| Thread Form | UNC |
| Thread Length | 5/16", 5/16 in, 0.3125". |
| Thread Length (Metric) | 7.94mm |
| Thread Limit | H3 |
| Thread Limit / Class of. | H3 / 2B |
| Thread Pitch | 40 |
| Thread Size | #4-40 UNC, #4-40, #4 |
| Thread Standard | UNC |
| Thread Tolerance | 2B |
| Threads per Inch | 40 |
| Tool Size | #4-40 UNC |
| Type | General Purpose Standard |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | Zoro | G4355644 | 16.49 | 1 | In Stock | | Greenfield Threading | 0.01 | 16.49 @ 1 |
 | rshughes.com | 662355-17000 | 17.12 | 6 | In Stock | | Greenfield Industries | | 17.12 @ 6 |
 | MRO Supply | 6107680 | 17.15 | 3 | In Stock | | Greenfield Threading | | 17.15 @ 3 |
 | usmegastore.com | 289004 | 17.72 | 1 | In Stock | | Greenfield Threading | | 17.72 @ 1 |
 | Megadepot | 289004 | 17.72 | 1 | In Stock | | Greenfield Threading | | 17.72 @ 1 |
 | heavydutydepot.com | 289004 | 17.72 | 6 | In Stock | | Greenfield Threading | | 17.72 @ 6 |
 | sustainablesupply.com | C2782609 | 20.56 | 1 | In Stock | | Greenfield Threading | 0.01 | 20.56 @ 1 |
| grainger.ca | GNF289004 | 22.56530854 | 1 | In Stock | | GREENFIELD THREADING | 0.472 | 22.56530854 @ 1 |
