IXYS IXTH48N65X2

mpnIXTH48N65X2
brandname: IXYS
manufacturername: IXYS

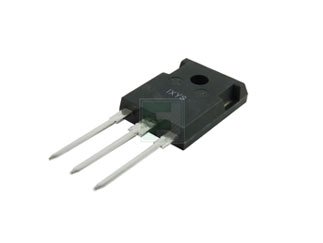

IXYS IXTH48N65X2 650V 48A 65mOhm N-ch TO-247-30 Item(s)

IXYS IXTH48N65X2 650V 48A 65mOhm N-ch TO-247-30 Item(s)

zoom

Brand: IXYS
PartNumber: IXTH48N65X2
Model: IXTH48N65X2
PackageQuantity: 1
Manufacturer: IXYS
Label: IXYS

Attributes

Key	Value
Base Product Number	IXTH48
Case	TO247-3
Category	Discrete Semiconductor .
Current - Continuous Dr.	48A (Tc)
Drain current	48A
Drain to Source Voltage.	650 V
Drain-source voltage	650V
Drive Voltage (Max Rds .	10V
Drive Voltage (Max Rds .	10V
FET Feature	-
FET Type	N-Channel
Gate charge	76nC
Gate Charge (Qg) (Max) .	77 nC @ 10 V
Gate-source voltage	?30V
Input Capacitance (Ciss.	4420 pF @ 25 V
Kind of channel	enhanced
Kind of package	tube
Manufacturer	IXYS
Mfr	IXYS
Mounting	THT
Mounting Type	Through Hole
On-state resistance	65m?
Operating Temperature	-55?C ~ 150?C (TJ)
Package	tube
Package / Case	TO-247-3
Part Status	Active
Polarisation	unipolar
Power dissipation	660W
Power Dissipation (Max)	660W (Tc)
Rds On (Max) @ Id, Vgs	68mOhm @ 24A, 10V
Reverse recovery time	400ns
Series	Ultra X2, -
Supplier Device Package	TO-247, TO-247 (IXTH)
Technology	X2-Class, MOSFET (Metal.
Type of transistor	N-MOSFET
Vgs (Max)	?30V
Vgs(th) (Max) @ Id	4.5V @ 4mA

All Prices

Img	Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Weight	Preferred Tier
	TME	IXTH48N65X2	6.54	1	30		IXYS		6.54 @ 30
	RS Delivers	168-4810	8.1012	1	30		IXYS		8.1012 @ 30
	Digi-Key	5423784	9.346	1000	30		IXYS		9.346 @ 30
