Leeson 110492

B00BC7ODUI

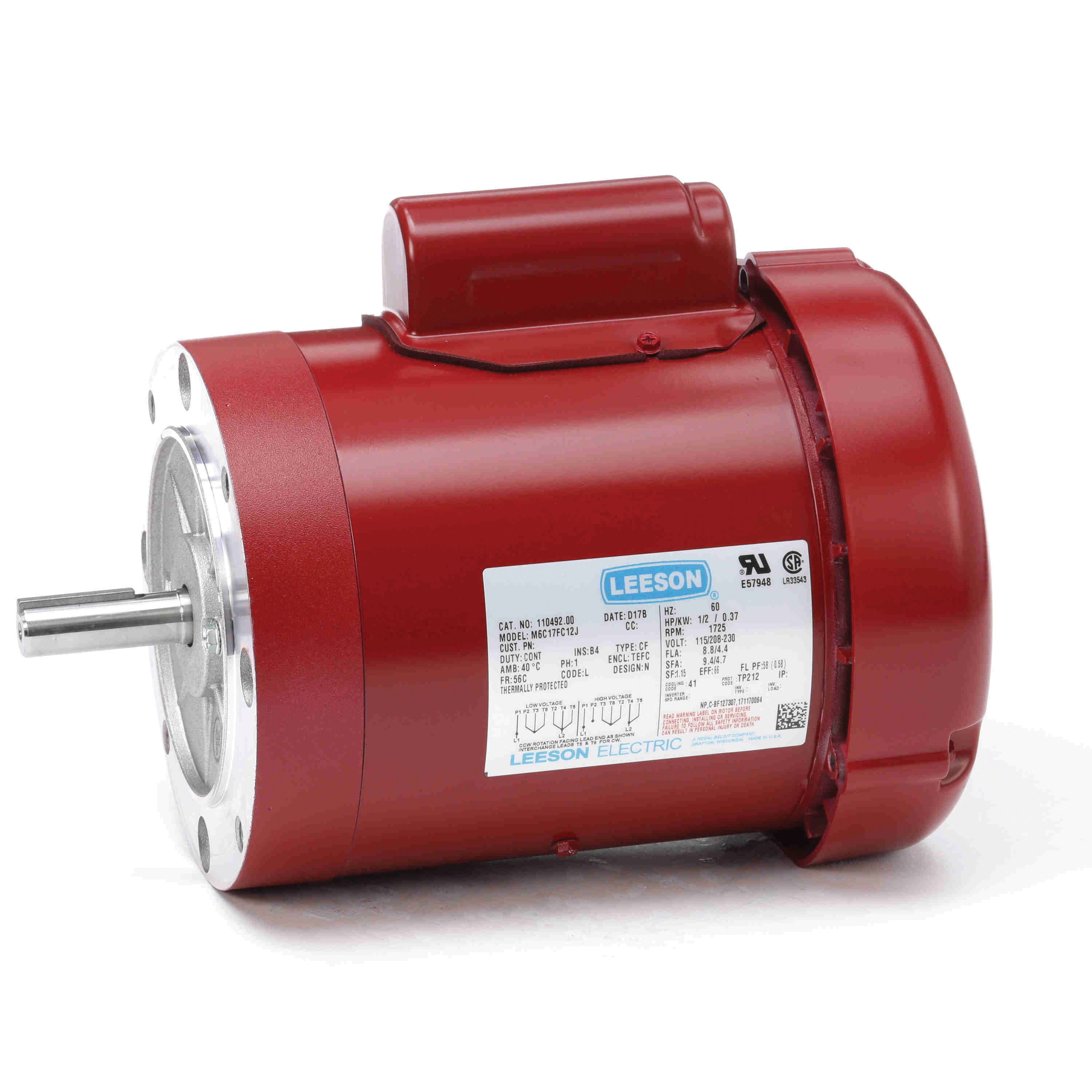

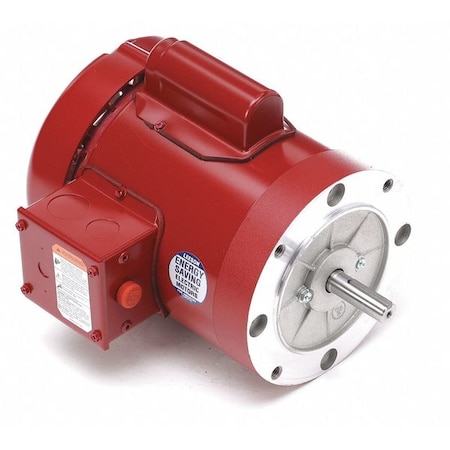

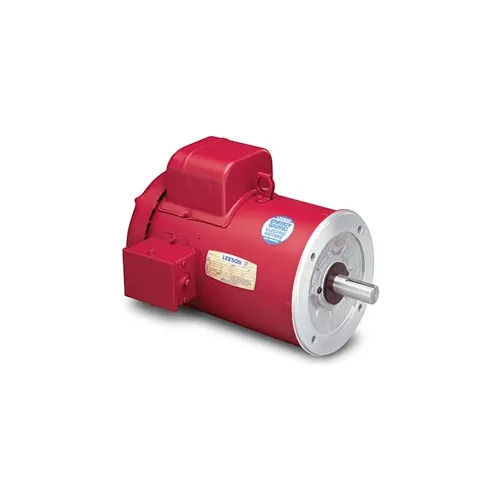

Leeson 110492.00 1/2HP 1725RPM 56 TEFC 115/208-230V 1PH 60HZ

Leeson 110492.00 1/2HP 1725RPM 56 TEFC 115/208-230V 1PH 60HZzoom

Attributes

Key Value
Alternate Mfr Part Numb.110492.00
Amperage Rating8.8/4.4 A
Application TypeFarm Duty Motors, Fan a.
ApprovalsCSA, UL
Bearing Type10.81, Ball
BrandLeeson
CategoryElectric Motor
Class/GroupM6C17FC12
ColorRed
CompositionSteel
ConstructionRolled Steel
Current Rating8.8 ; 4.4 A
Current Stock3
Description:1/2HP..1725RPM.56.TEFC..
Dimensions10.98 in L
Drive End Bearing Size6203
Drive End Bearing TypeBall
Drive End Flange TypeC-Face
Duty CycleContinuous
Efficiency66 %, 66
EnclosureTEFC, Totally Enclosed .
Enclosure TypeTotally Enclosed Fan Co.
Estimated Weight22.00
Family SeriesLeeson Motors, Agricult.
FL Amps8.8/4.4
FL Efficiency66
Frame56C
Frame MaterialRolled Steel
Frame RemarksFarm Duty, Footless
Frequency60, 60 Hz
Frequency Rating60 Hz
Gross Weight0 lbs
Hertz60
Horsepower0.5 hp, 1/2 hp
Horsepower Rating0.50 HP
HP0.50, 0.5, 1/2
Hz60
Insulation ClassB, Class B
Insulation TypeClass B
International ShippingNo
ItemFarm Duty Motor
Item ConditionFACTORY NEW
Item Number110492.00
KW0.37
Lead TimeExpected to ship in 1-2.
Length Less Shaft9 1/8 in
ManufacturerLeeson Electric, LEESON.
Manufacturer Part Number110492.00
Manufacturers Warranty .1 yr
MaterialRolled Steel
MFG Part #:110492.00
Model NumberM6C17FC12
Motor ApplicationFarm Duty
Motor DesignCapacitor-Start
Motor Enclosure DesignTotally Enclosed Fan-Co.
Motor Frame MaterialSteel
Motor Mounting PositionHorizontal
Motor Mounting TypeFace
Motor Service Factor1.15
Motor Shaft DesignKeyed
Motor Shaft RotationCW/CCW
Motor Sub ApplicationHigh Torque
Motor Thermal ProtectionManual
MountingFootless
mountingC-face (NO base)
Mounting TypeC-Face Less Base, Round.
Mpn110492.00
Nameplate RPM1,725
NEMA Frame56C
Net Weight22 lbs
Nominal Voltage208 VAC, 240 VAC
Number of Poles4
Number of Speeds1
Opp. Drive End Bearing .6203
Opp. Drive End Bearing .Ball
Overall Length11 in, 10.81 "
Part Number110492.00
Phase1, Single, 1 Phase, 1 ph
Product SeriesAgricultural Duty
Product TypeGeneral Purpose
RotationSelective CCW
RPM1725 RPM, 1,800 RPM, 17.
RPM Range1,701-1,800
Service Factor1.15
Shaft Dia.5/8 in
Shaft Diameter0.625, UL;CSA
Shaft Length1.88, 1 7/8 in
Shaft Size0.63 in Dia x 1.88 in L
SKUZO-G4608366
Special FeaturesService Factor - 1.15, .
Speed (RPM)1725
StandardsUL Recognized, CSA (LR2.
SubCategoryMotors/Ac Motors
Supplier:LEESON ELECTRIC CORPORA.
Supply Voltage115/208-230 VAC
TypeCapacitor Start Inducti.
UPC691720008997
UPC Code691720008997
UPC:691720008997
Voltage110-120V, 208V, 230V, 1.
Volts115/208/230
