- mpnPG240
- brandname: Marathon
- manufacturername: Marathon

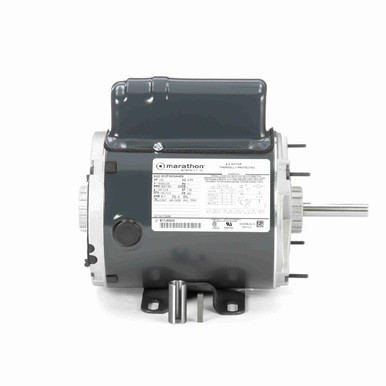

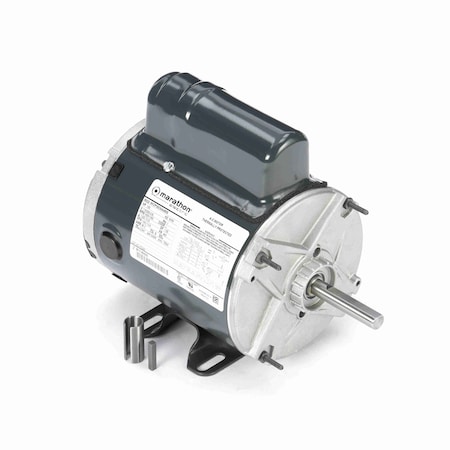

Marathon PG240 48Z Frame Totally Enclosed Marathon-Transformer Cooling Fan Motor 1/20 hp, 1625 RPM, 115/200-230 VAC, 1 Phase, 1 Speed, Ball Bearing, Permanent Split Capacitor, Rigid Base
- Brand: Marathon Electric
- PartNumber: PG240
- Model: MPG240
- PackageQuantity: 1
- Binding: Misc.
- Manufacturer: Marathon Electric
- Label: Marathon Electric
Attributes
| Key | Value |
|---|
| Alternate Mfr Part Numb. | 5KCP35CNA490S |
| Amps | 1.5/0.7-0.8 A |
| applications: | Transformer Cooling Fan |
| Approvals | CSA, UR |
| base rpm: | 1625 rpm |
| Bearing Type | Ball |
| Bearings | Ball |
| Composition | Rolled Steel |
| Country of Origin (subj. | Mexico |
| duty / condition type: | Continuous Duty |
| Duty Cycle | Continuous |
| Efficiency | 35.5% |
| Efficiency % | 35.5 % |
| Enclosure | Totally Enclosed Non-Ve. |
| Enclosure Material | Steel |
| Enclosure Type | TENV (Totally Enclosed . |
| enclosure type: | TENV (Totally Enclosed . |
| Family Series | Marathon Electric Motors |
| Frame | 48Z |
| frame material: | Rolled Steel |
| frame size: | 48Z |
| Frequency | 60 Hz |
| frequency rating: | 60 Hz |
| full load current: | 1.50 / 0.07 |
| Gross Weight | 0 lbs |
| Horsepower | 1/25 hp |
| HP | 1/20 |
| Hz | 60, 60/50 |
| Insulation Class | B |
| insulation class: | B |
| Item Number | PG240 |
| Kilowatts | 0.04 kW |
| Manufacturer | Marathon Electric |
| Manufacturer Model # | 5KCP35CNA490S |
| Manufacturer Part Number | 5KCP35CNA490S |
| Maximum Ambient Tempera. | 65? C |
| motor category: | Blower/Fan Motor |
| Motor Diameter | 5-5/8" |
| motor horsepower: | 0.05 hp, 1/20 hp |
| motor phase: | 1 ph |
| Motor Shell Length | 5.79" |
| motor supply voltage: | 115/200-230 V |
| Mounting Orientation | Any |
| Mounting Type | Rigid, Rigid Base |
| mounting type: | Rigid Base |
| NEMA Frame | 48Z |
| Net Weight | 12 lbs |
| Number of Poles | 4 |
| Number of Speeds | 1 |
| Overall Length | 10.32", 10.32 " |
| overall length (c-dimen. | 10.32 in |
| Phase | 1 |
| Product Type | Capacitor Start |
| Rotation | Reversible |
| RPM | 1,625 RPM, 1625, 1625/1. |
| Service Factor | 1.5 |
| Shaft Diameter | 0.5 ", 1/2" |
| shaft diameter: | 0.50 in |
| Shaft Length | 2.25" |
| Ship Weight | 12 lbs. |
| standards met: | UL, CSA |
| synchronous rpm: | 1800 rpm |
| Thermal Protection | Automatic |
| thermal protection: | Automatic |
| Voltage | 115-200/230 |
| Voltage (AC) | 115 VAC, 200-230 VAC |
| Volts | 115/200-230 |
| weight: | 12 lbs |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | motionindustries.com | 04869946 | 347.43 | 1 | In Stock | | Marathon Electric | | 347.43 @ 1 |
 | Galco | PG240-MARA | 377.53 | 1 | In Stock | | Marathon Electric | 12.0 | 377.53 @ 1 |
 | MRO Supply | 2269835 | 381.07 | 1 | In Stock | | Marathon Electric | | 381.07 @ 1 |
 | ktool.net | PG240 | 390.25 | 1 | In Stock | | Marathon Motors | | 390.25 @ 1 |
| us.rs-online.com | 72650071 | 441.42 | 1 | In Stock | | Marathon Motors | | 441.42 @ 1 |
 | emotorpro.com | PG240 | 453.01 | 1 | In Stock | | Marathon | 12.0 | 453.01 @ 1 |
 | Zoro | G2531119 | 458.36 | 1 | In Stock | | Marathon | | 458.36 @ 1 |
 | National Supply Network | B871762 | 479.94 | 1 | In Stock | | MARATHON MOTORS | | 479.94 @ 1 |
| kirbyrisk.com | 2458390 | 581.06 | 1 | In Stock | | Marathon | | 581.06 @ 1 |
