Marathon Electric X533

B007ZQMGJK

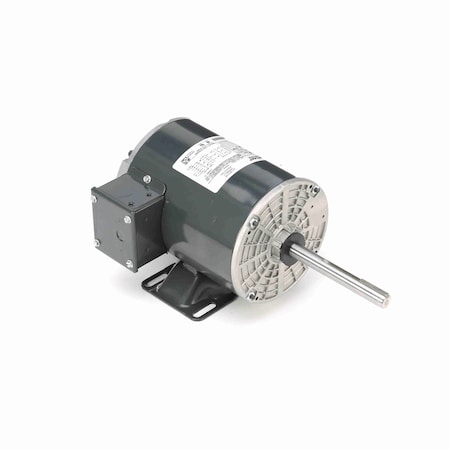

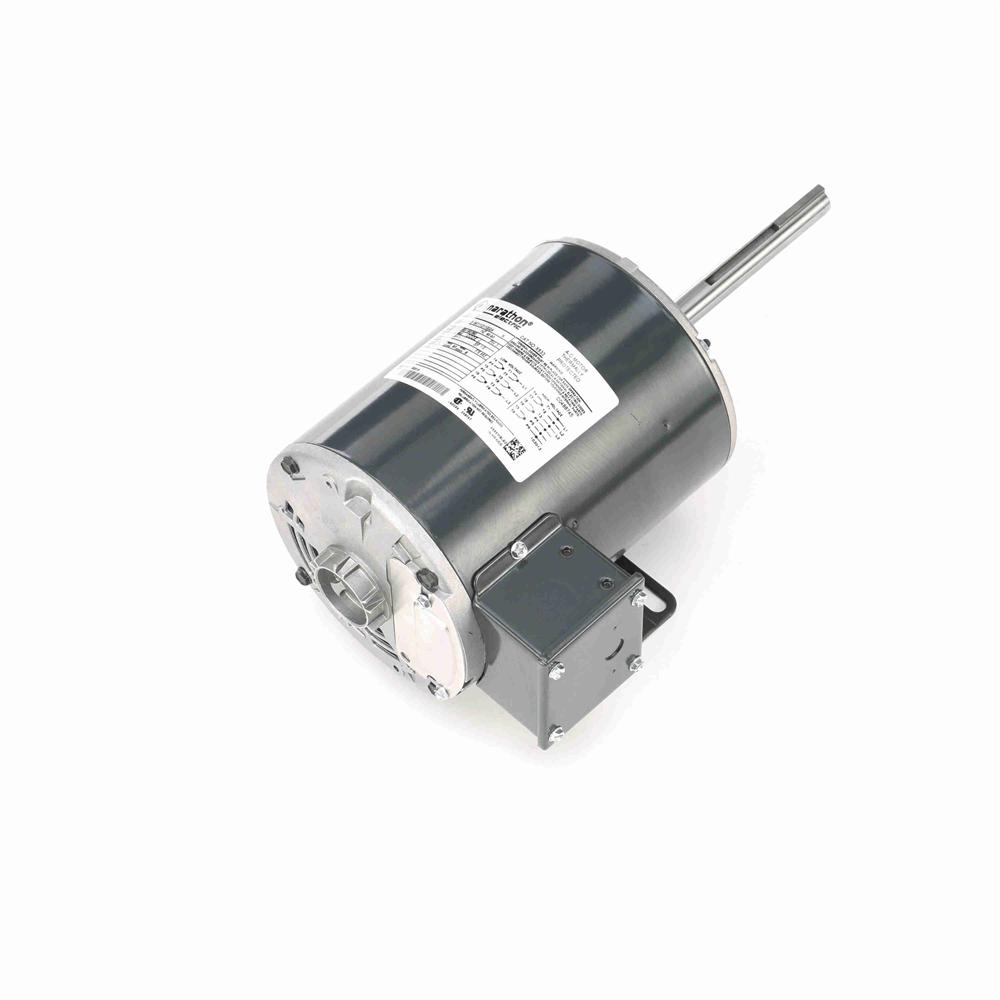

Marathon X533 56Z Frame Condenser Fan/Heat Pump Motor, 3 Phase, Rigid Base, Open Air Over Shaft, Shaft Dimension 5/8" x 5", 2.1-2.0/1.0 amp, 1/2 hp, 1140 RPM, 208-230/460V

Marathon X533 56Z Frame Condenser Fan/Heat Pump Motor, 3 Phase, Rigid Base, Open Air Over Shaft, Shaft Dimension 5/8" x 5", 2.1-2.0/1.0 amp, 1/2 hp, 1140 RPM, 208-230/460Vzoom

Attributes

Key Value
Alternate Mfr Part Numb.056T11O11002
Amps2.1-2/1, 2.1-2.0/1.0
ApprovalsCSA, UR
Bearing TypeBall
BearingsBall
BrandMarathon
C-Dimension13.37 (in.)
Catalog NumberX533
CEN
CompositionRolled Steel
Country of Origin (subj.Mexico
CSAY
DE Bearing TypeBall
DEM ReferenceMA#X533
DutyContinuous
Duty CycleContinuous
Efficiency0.74
Efficiency %74 %
Electrical TypeSquirrel Cage Induction.
EnclosureOpen Enclosed, OPEN
Enclosure MaterialSteel
Enclosure TypeOAO (Open Air Over)
Family SeriesMarathon Electric Motors
Frame56Z
Frame MaterialRolled Steel
Frequency50 Hz, 60 Hz, 60/50
Gross Weight0 lbs
Horsepower1/2 hp
HP1/2
Hz60
Insulation ClassB
IP Code10
Item NumberX533
Kilowatts0.37 kW
KVA CodeJ
ManufacturerMarathon Electric
Manufacturer Model #056T11O11002
Manufacturer Part Number056T11O11002
Max Ambient60?C
Maximum Ambient Tempera.60? C
Motor Diameter6-1/2"
Motor OrientationHorizontal
Motor Shell Length6.62"
MountingBase
Mounting OrientationHorizontal
Mounting TypeRigid, Rigid Base
Net Weight20 lbs
Number of Poles6
Number of Speeds1
ODE Bearing TypeBall
Overall Length13.37", 13.37 "
Phase3
Product CategoryHVAC/R Motors > Conden.
Product TypeThree Phase
RotationReversible
RPM1140, 1100 - 1200, 1,14.
RPM (Nameplate)1140
RPM (Number of Poles)6 (901 RPM to 1200 RPM)
Service Factor1
Shaft Diameter0.63 ", 5/8 (in.), 5/8"
Shaft Extension5.06 (in.)
Shaft Length5.06"
Shaft TypeSingle Special Extension
Ship Weight20 lbs.
Speeds1
Thermal ProtectionAutomatic
Type of Overload Protec.Automatic Lock Rotor On.
ULRecognized
Voltage208-230/460
Voltage (AC)208-230 VAC, 460 VAC
Volts208, 230, 460, 208-230/.

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomGlobal IndustrialWBB870941249.951In StockMarathon Motors249.95 @ 1
thumbzoomelectricmotorwholesale.comX533351.011MARATHON351.0 @ 1
thumbzoomasapelectricmotors.comMARX533397.611In StockMARATHON397.61 @ 1
thumbzoomGalcoX533-MARA441.331In StockMarathon Electric20.0441.33 @ 1
thumbzoomapexindustrialautomation.comX533447.21129Marathon447.21 @ 1
us.rs-online.com72650018497.121In StockMarathon Motors497.12 @ 1
thumbzoomemotorpro.comX533508.951In StockMarathon20.0508.95 @ 1
thumbzoomMRO Supply2269479535.161In StockMarathon Electric535.16 @ 1
thumbzoommidwestapplianceparts.comX533-MT-P539.371In StockMarathon539.37 @ 1
thumbzoomNational Supply NetworkB871656543.991In StockMARATHON MOTORS543.99 @ 1
thumbzoomcbtcompany.comX533568.031In StockMarathon Electric Motors568.03 @ 1
thumbzoomZoroG2531283594.811In StockMarathon594.81 @ 1
thumbzoomDreisilkerMA-RBC-X533653.551In StockMarathon653.55 @ 1
thumbzoomGuardianMARSX533682.991In StockMarathon682.99 @ 1
