Marathon Electric HG714

B007ZQNZ6I

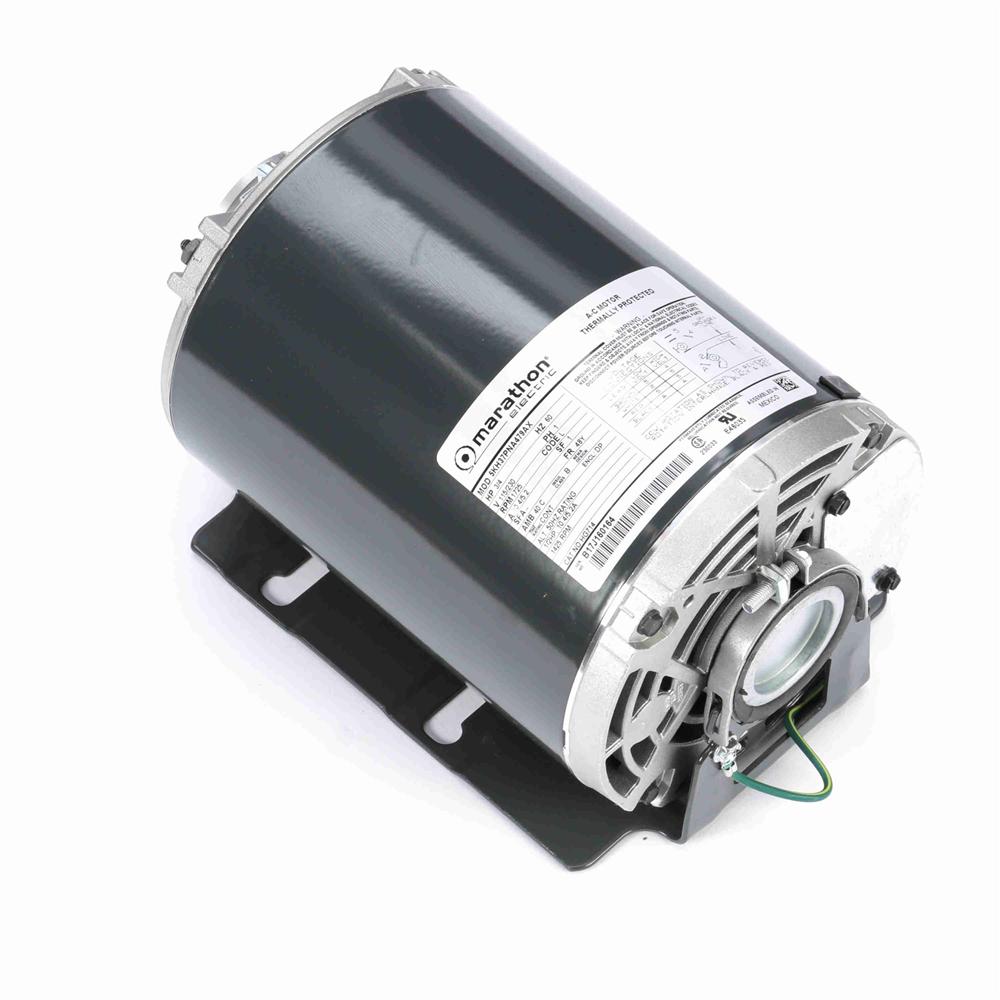

Marathon HG714 48Y Frame Open Drip Proof 5KH37PNA479X Carbonator Pump Motor, 3/4 hp, 1800 RPM, 115/230 VAC, 1 Split Phase, 1 Speed, Ball Bearing, Rigid Base

Marathon HG714 48Y Frame Open Drip Proof 5KH37PNA479X Carbonator Pump Motor, 3/4 hp, 1800 RPM, 115/230 VAC, 1 Split Phase, 1 Speed, Ball Bearing, Rigid Basezoom

Attributes

Key Value
Alternate Mfr Part Numb.5KH37PNA479X
Amps10.4,5.2, 10.4/5.2
ApprovalsCSA, UR
Bearing TypeBall
BearingsBall
Body Dia.5.6"
BrandMarathon
C-Dimension9.15 (in.)
Catalog NumberHG714
CEN
CompositionRolled Steel
CSAY
Current Rating10.4 A
DE Bearing TypeBall
DEM ReferenceNOHP
DutyContinuous
Duty CycleContinuous
Efficiency0.683, 68.3
Efficiency %68.3 %
Electrical TypeSplit Phase
EnclosureODP, Drip Proof
Enclosure MaterialSteel
Enclosure TypeODP (Open Dripproof), D.
Family SeriesMarathon Electric, Mara.
Frame48YZ, 48Y
Frame MaterialRolled Steel
Frame Type48Y
Frequency60, 60 Hz
Full Load Amps10.4/5.2
Gross Weight0 lbs
Height5 13/16 in
Horsepower3/4 hp
Horsepower Rating0.75 HP
HP3/4
Hz60
Ins. ClassB
Insulation ClassB
Insulation TypeClass B
IP Code-
ItemCarbonator Pump Motor
Item NumberHG714
Kilowatts0.56 kW
KVA CodeL
Length Less Shaft9"
ManufacturerMarathon Electric
Manufacturer Model #5KH37PNA479X
Manufacturer Part Number5KH37PNA479X
Max Ambient40?C
Max. Ambient Temp.40 Degrees C
Maximum Ambient Tempera.40? C
Motor ApplicationPump
Motor BearingsBall
Motor DesignSplit-Phase
Motor Diameter5-5/8"
Motor Enclosure DesignOpen Dripproof
Motor Frame MaterialSteel
Motor Mounting PositionAll Angle
Motor Mounting TypeCradle Base
Motor OrientationAny
Motor Service Factor1.00
Motor Shaft RotationCW/CCW
Motor Shell Length6.62"
Motor Sub ApplicationCarbonator Pump
Motor Thermal ProtectionAUTO
MountingBase
Mounting OrientationAny
Mounting TypeResilient Base
Nameplate RPM1,725
NEMA Frame48Y
Net Weight0 lbs, 19 lbs
No. of Speeds1
Nominal Efficiency68.3 %
Number of Poles4
Number of Speeds1
ODE Bearing TypeBall
Overall Length9.15", 9.15 ", 9-1/8"
Phase1, 1 Phase
Product CategoryPump Motors > Carbonat.
Product TypeSplit Phase
RotationCounterclockwise/Clockw.
RPM1725 RPM, 1725, 1700 - .
RPM (Nameplate)1725
RPM (Number of Poles)4 (1201 RPM to 1800 RPM)
RPM Range1,400 - 1,800
Service Factor1
Shaft Dia.5/8 in
Shaft Diameter0.63 ", 5/8 (in.), 5/8"
Shaft Extension0.17 (in.)
Shaft Length3/16", 0.17"
Shaft Type-
Ship Weight22 lbs.
Special FeaturesService Factor - 1
Speeds1
StandardsUL Recognized (E49747),.
Stator TypeSplit-Phase
Supply Voltage115/230 VAC
Thermal ProtectionAutomatic
TypeSplit Phase
Type of Overload Protec.AUTO
ULRecognized
UPC Code722856031808
Usable @ 200VNo
Usable @ 208VNo
Voltage115-230, 115/230
Voltage (AC)115 VAC, 230 VAC
Voltage Compatibility115, 120, 230, 240, 115.
Volts115, 230, 115/230
Weight22 lb

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomelectricmotorwholesale.comHG714240.01In StockMARATHON240.0 @ 1
AmazonTPB007ZQNZ6I261.221In Stock3Marathon Electric261.22 @ 1
thumbzoomapexindustrialautomation.comHG714339.371317Marathon339.37 @ 1
thumbzoomGalcoHG714-MARA348.31In StockMarathon Electric19.0348.3 @ 1
thumbzoomMRO Supply2269108352.261In StockMarathon Electric352.26 @ 1
us.rs-online.com72237960412.8812Marathon Motors412.88 @ 1
thumbzoomemotorpro.comHG714417.691In StockMarathon22.0417.69 @ 1
thumbzoomZoroG2490114417.991In Stock10Marathon417.99 @ 1
thumbzoomDreisilkerMA-RBC-HG714430.191In StockMarathon430.19 @ 1
thumbzoomNational Supply NetworkB868718442.941In StockMARATHON MOTORS442.94 @ 1
thumbzoommidwestapplianceparts.comHG714-MT-P443.221In StockMarathon443.22 @ 1
thumbzoomGlobal IndustrialWBB868718449.951In StockMARATHON MOTORS449.95 @ 1
grainger.caAOSHG714490.020662841In StockMARATHON21.0490.02066284 @ 1
