- mpn404TSTDS4017
- brandname: MARATHON MOTORS
- manufacturername: MARATHON MOTORS

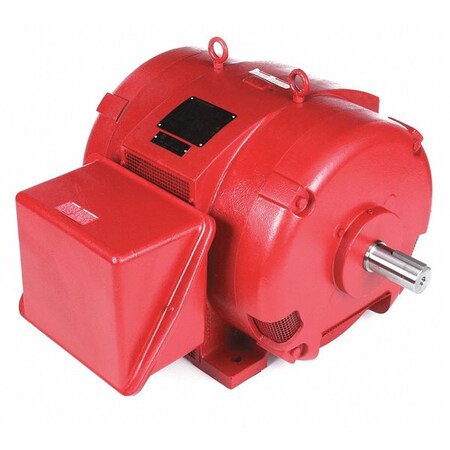

Fire Pump Motor 125 HP 3560 RPM 60/50 Hz
- Brand: Marathon Industries
- PartNumber: 404TSTDS4017
- Manufacturer: MARATHON MOTORS
- Label: MARATHON MOTORS
Attributes
| Key | Value |
|---|
| Application | Application |
| Approval | Approval |
| Certifications | Certifications |
| Classification | Fire Pump |
| Composition | Cast Iron |
| Country of Origin (subj. | United States |
| Efficiency | Efficiency |
| Efficiency % | 93.6 % |
| Enclosure | ODP, Open |
| Family Series | Marathon Electric Motors |
| Frame | 404TS |
| Frame Material | Frame Material |
| Frame Remarks | Rigid |
| Frequency Rating | Frequency Rating |
| Full Load Amps | 284.0/142.0 |
| Gross Weight | 0 lbs |
| Horsepower | 125 hp |
| HP | 125 |
| Hz | 60/50 |
| Ins. Class | B |
| Insulation Class | Insulation Class |
| Item | Fire Pump Motor |
| Item Condition | Factory New |
| Item Number | 404TSTDS4017 |
| Kilowatts | 93 kW |
| Length Less Shaft | 25-1/4" |
| Manufacturer | Marathon Electric |
| Manufacturer Part Number | U530 |
| Max. Ambient Temp. | 50 Degrees C |
| Motor Application | Pump |
| Motor Bearings | Ball |
| Motor Design | 3-Phase |
| Motor Enclosure Design | Open Dripproof |
| Motor FLA | Motor FLA |
| Motor Mounting Position | Horizontal |
| Motor Mounting Type | Rigid Base |
| Motor Service Factor | 1.15 |
| Motor Shaft Design | Keyed |
| Motor Shaft Rotation | CW/CCW |
| Motor Sub Application | Fire Pump |
| Motor Thermal Protection | None |
| Mounting Type | Footed |
| Nameplate RPM | 3560 |
| NEMA Frame | 404TS |
| Net Weight | 1005 lbs |
| No. of Speeds | 1 |
| Nominal Efficiency | 93.5% |
| Nominal Voltage | 240 VAC, 277 VAC, 347 V. |
| Number of Speeds | Number of Speeds |
| Overall Length | 29-1/2" |
| Phase | 3 |
| RPM | 3600, 3,560 RPM |
| RPM Range | 3001-3600 |
| Service Factor | Service Factor, 1.15 |
| Shaft Dia. | 2-1/8" |
| Shaft Length | 4-1/4" |
| Speeds | Speeds |
| Standards | UL Listed (EX5190), CSA. |
| Unspsc | Unspsc |
| Voltage | 230/460 |
| Voltage (AC) | 230 VAC, 460 VAC |
| Voltage Compatibility | 460, 230/460, 220-230/4. |
| Volts | 230/460 |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | Zoro | G9878127 | 7513.0 | 1 | In Stock | 25 | Marathon Motors | | 7513.0 @ 1 |
 | mecampbell.com | 404TSTDS4017 | 8210.97 | 1 | In Stock | | Marathon Motors | | 8210.97 @ 1 |
 | Galco | 404TSTDS4017-MARA | 10530.5 | 1 | In Stock | | Marathon Electric | 1005.0 | 10530.5 @ 1 |
 | Dealers Electric | 404TSTDS4017 | 11214.78 | 1 | 2 | | Marathon Electric | 1005.0 | 11214.78 @ 1 |
