Martin 1 3V 500 TB

B004BKICSC

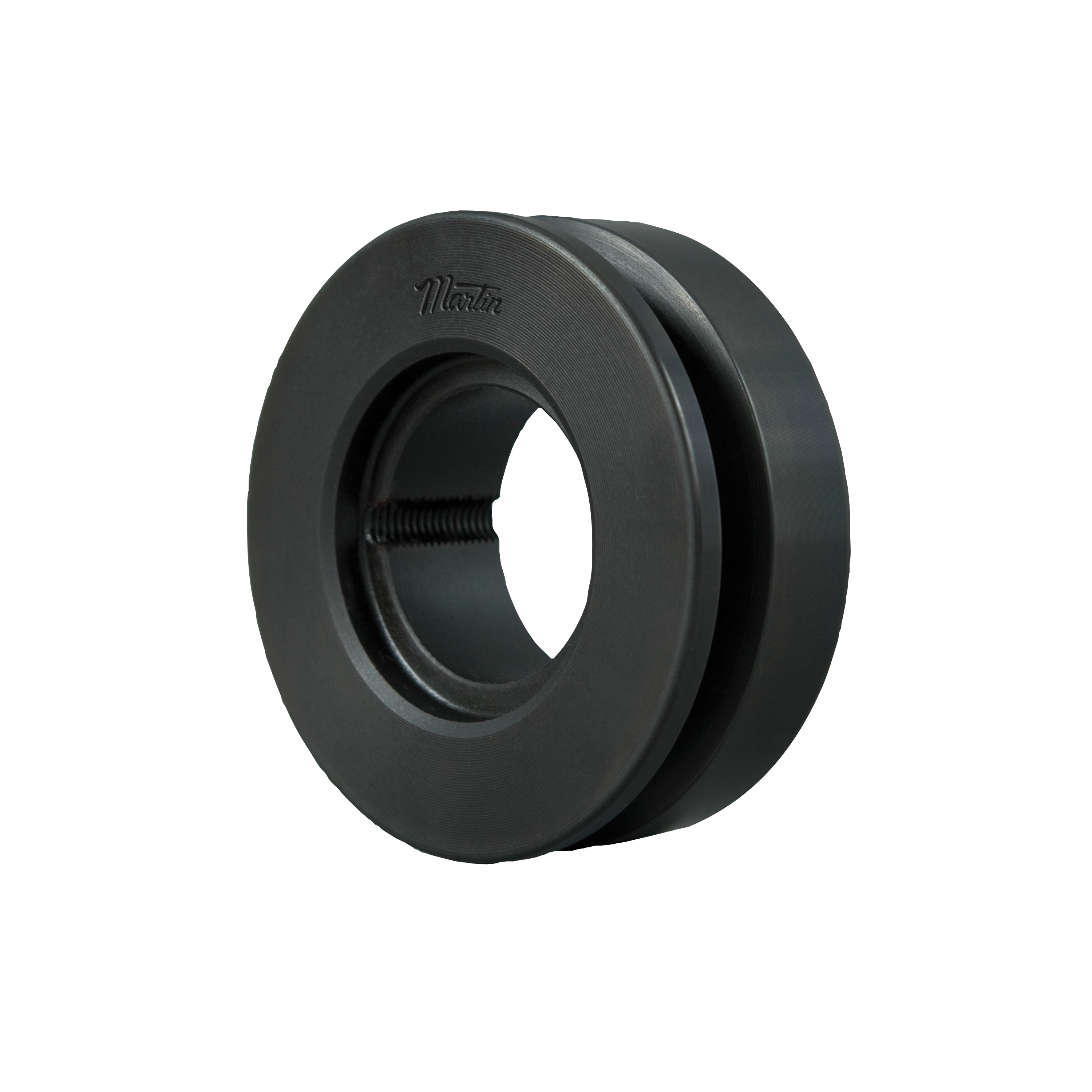

Martin 1 3V 500 TB Narrow V-Belt Drive Sheave, 3V Belt Section, 1 Groove, 1610 Taper Bushing required, Class 30 Gray Cast Iron, 5" OD, 4962 max rpm, 4.95" Pitch Diameter

Martin 1 3V 500 TB Narrow V-Belt Drive Sheave, 3V Belt Section, 1 Groove, 1610 Taper Bushing required, Class 30 Gray Cast Iron, 5" OD, 4962 max rpm, 4.95" Pitch Diameterzoom

Attributes

Key Value
Belt Cross Section3V
Bore TypeBushed
Bushed For1610
Bushing Maximum Bore Si.1.5 "
Bushing MountStandard
Bushing StyleTB
Length Through Bore1 "
MaterialSteel
Number of Grooves1
Outer Diameter5 in
Outside Dia5.000"
Pitch Diameter4.95 "
Sheave ConstructionSolid
Sheave Face Width11/16 "
Sheave TypeHigh Capacity
UPC Code697950152806
Weight3.36 lbs

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomindustrialzone.com1 3V 500 TB46.025In StockMartin1.046.02 @ 5
us.rs-online.com7247885856.691In StockMartin Sprocket & Gear3.3656.69 @ 1
thumbzoomcbtcompany.com1 3V 500 TB58.231In StockMartin Sprocket & Gear58.23 @ 1
thumbzoomapexindustrialautomation.com1 3V 500 TB64.061In StockMartin Sprocket64.06 @ 1
thumbzoomPurvis1 3V 500 TB72.661In StockMartin72.66 @ 1
thumbzoomMRO Supply25376373.671In StockMartin Sprocket73.67 @ 1
