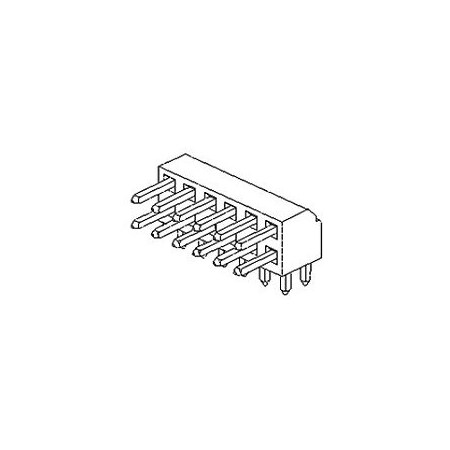

Molex / Waldom 87760-2016 Connector Headers and PCB Receptacles

Molex / Waldom 87760-2016 Connector Headers and PCB Receptacleszoom

Attributes

Key Value
Alternate Part No.538-87760-2016
ApplicationsAutomotive, General Pur.
BrandMolex
ColorBlack
Connector TypeHeader
Contact FinishGold Plated
Contact Finish - MatingGold
Contact Finish - PostTin
Contact Finish Thicknes.15.0?in (0.38?m)
Contact Finish Thicknes.78.7?in (2.00?m)
Contact Length - Mating0.157" (4.00mm)
Contact Length - Post0.102" (2.60mm)
Contact MaterialBrass, Phosphor Bronze
Contact PlatingGold
Contact Plating Thickne.0.381 ?m
Contact ShapeSquare
Contact TypeMale Pin
Current Rating2 A
Current Rating (Amps)-
Fastening TypePush-Pull
FeaturesSurface Mount Compatibl.
Flammability RatingUL 94V-0
Hole Center to Center2 mm
Housing MaterialThermoplastic
Ingress Protection-
Insulation ColorBlack
Insulation Height0.169" (4.30mm)
Insulation MaterialPolycyclohexylenedimeth.
ManufacturerMolex
Manufacturer Part No.87760-2016
Mated Stacking Heights-
MaterialHigh Temperature Thermo.
Material Flammability R.UL94 V-0
Max. Temp.265?C
Max. Voltage125V
MfrMolex
Mounting TypeThrough Hole, Right Ang.
Number of Contacts20
Number of Positions20
Number of Positions Loa.All
Number of Rows2
Operating Temperature-
Overall Contact Length-
Package Quantity1
PackagingTray
Part # Aliases0877602016
Part StatusActive
Pitch2 mm
Pitch - Mating0.079" (2.00mm)
Product CategoryHeaders & Wire Housings
Product TypeHeaders
Row Spacing - Mating0.079" (2.00mm)
Series87760
ShroudingUnshrouded
StandardsCSA Certified; UL E29179
StyleBoard to Board or Cable
Terminal FinishTin Plated
Terminal TypeThrough Hole
TerminationSolder
Termination StyleThrough Hole
TradenameMilli-Grid
TypeUnshrouded
Voltage Rating-, 125 V
