Molex / Waldom 87832-5122

B00GQR90Z2

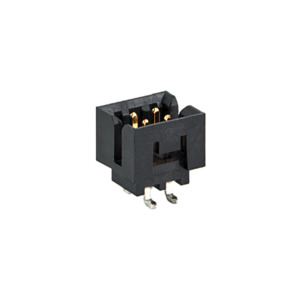

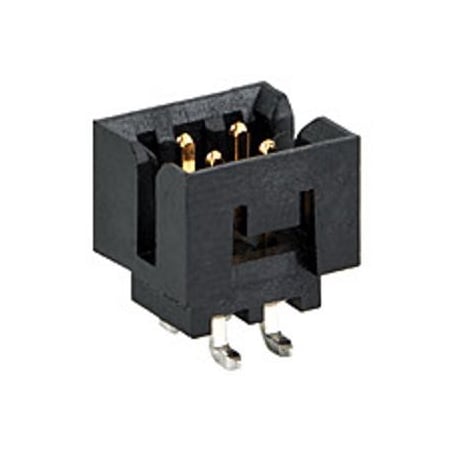

Molex / Waldom 87832-5122 Connector Headers and PCB Receptacles

Molex / Waldom 87832-5122 Connector Headers and PCB Receptacleszoom

Attributes

Key Value
Alternate Part No.538-87832-5122
ApplicationsAutomotive, General Pur.
Base Product Number087832
BrandMolex
CategoryConnectors, Interconnec.
ColorBlack
Connector TypeHeader
Contact FinishGold Plated
Contact Finish - MatingGold
Contact Finish - PostTin
Contact Finish Thicknes.15.0?in (0.38?m)
Contact Finish Thicknes.74.8?in (1.90?m)
Contact Length - Mating0.141" (3.60mm)
Contact Length - Post-
Contact MaterialPhosphor Bronze
Contact PlatingGold
Contact Plating Thickne.0.381 ?m
Contact ShapeSquare
Contact TypeMale Pin
Current Rating2 A
Current Rating (Amps)-
DescriptionCONN HEADER SMD 4POS 2MM
Detailed DescriptionConnector Header Surfac.
Digi-Key Part NumberWM20540TR-ND - Tape & R.
Fastening TypePush-Pull
FeaturesPick and Place, Surface.
Flammability RatingUL 94V-0
Hole Center to Center2 mm
Housing MaterialNylon
Ingress Protection-
Insulation ColorBlack
Insulation Height0.252" (6.40mm)
Insulation MaterialPolyamide (PA), Nylon, .
ManufacturerMolex
Manufacturer Part No.87832-5122
Manufacturer Product Nu.0878325122
Manufacturer Standard L.19 Weeks
Mated Stacking Heights-
MaterialNylon
Material Flammability R.UL94 V-0
Max. Temp.260?C
Max. Voltage125V
MfrMolex
Mounting AngleVertical
Mounting TypeSurface Mount
Number of Contacts4
Number of Positions4
Number of Positions Loa.All
Number of Rows2
Operating Temperature-55?C ~ 105?C
Operating Temperature R.- 55 C to + 105 C
Overall Contact Length-
PackageTape & Reel (TR)
Package Quantity1
PackagingReel
Part # Aliases0878325122
Pitch2 mm
Pitch - Mating0.079" (2.00mm)
Product CategoryHeaders & Wire Housings
Product StatusActive
Product TypeHeaders
Row Spacing - Mating0.079" (2.00mm)
SeriesMilli-Grid 87832, 87832
ShroudingShrouded - 4 Wall
StandardsCSA Certified; UL E29179
StyleBoard to Board or Cable
Terminal FinishTin Plated
Terminal TypeSurface Mount
TerminationSolder
TradenameMilli-Grid
TypeShrouded
Voltage Rating-, 125 V

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
Avnet08783251220.45935002500Molex0.459 @ 3500
WaldomMOLEX 87832-51220.545003000MOLEX0.54 @ 500
Onlinecomponents.com87832-51220.5793500100Molex0.579 @ 1
Newark57R26550.73500142MOLEX0.7 @ 2000
thumbzoomjensentools.com101978060.721142Molex0.72 @ 1
Mouser538-87832-51221.151416Molex1.15 @ 1
thumbzoomDigi-Key33132661.4113533Molex1.41 @ 1
thumbzoomswatee.com87832-51221.7912965Molex1.79 @ 1
thumbzoomZoroG905890918475.0500In StockMolex475.0 @ 500
