Molex / Waldom 39-30-6067

mpn39-30-6067
brandname: Molex Incorporated
manufacturername: Molex Incorporated

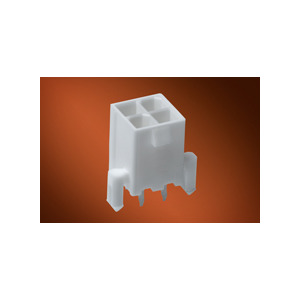

Molex / Waldom 39-30-6067 Connector Power

Brand: Molex / Waldom
PartNumber: 39-30-6067
PackageQuantity: 1
Binding: Electronics
Manufacturer: Molex / Waldom
Label: Molex / Waldom

Attributes

Key	Value
Alternate Part No.	538-39-30-6067
Applications	General Purpose, Indust.
Base Product Number	003930
Brand	Molex
Category	Connectors, Interconnec.
Color	Natural
Connector Type	Header
Contact Finish	Tin Plated
Contact Finish - Mating	Tin
Contact Finish - Post	Tin
Contact Finish Thicknes.	100.0?in (2.54?m)
Contact Finish Thicknes.	100.0?in (2.54?m)
Contact Gender	Pin (Male)
Contact Length - Mating	-
Contact Length - Post	0.138" (3.50mm)
Contact Material	Brass
Contact Plating	Tin
Contact Plating Thickne.	2.54 ?m
Contact Shape	Square
Contact Type	Male Pin
Current Rating	9 A
Current Rating (Amps)	-
Description	CONN HEADER VERT 6POS 4.
Detailed Description	Connector Header Throug.
Digi-Key Part Number	WM17747-ND
Family Name	Mini-Fit Jr.
Fastening Type	Locking Ramp
Features	Board Lock
Flammability Rating	UL 94V-2
Hole Center to Center	4.2 mm
Housing Material	Nylon
Ingress Protection	-
Insulation Color	Natural
Insulation Height	0.504" (12.80mm)
Insulation Material	Polyamide (PA66), Nylon.
Manufacturer	Molex
Manufacturer Part No.	39-30-6067
Manufacturer Product Nu.	0039306067
Manufacturer Standard L.	8 Weeks
Mated Stacking Heights	-
Material	Nylon
Material Flammability R.	UL94 V-2
Max. Temp.	240?C
Max. Voltage	600V
Mfr	Molex
Mounting Angle	Vertical
Mounting Type	Through Hole
Number of Circuits	6
Number of Contacts	6
Number of Positions	6
Number of Positions Loa.	All
Number of Rows	2
Operating Temperature	-
Overall Contact Length	-
Package	Tray
Package Quantity	1
Packaging	Tray
Part # Aliases	0039306067 5566-06B2S
Pitch	4.2 mm
Pitch - Mating	0.165" (4.20mm)
Plating Material	Tin
Product Category	Headers & Wire Housings
Product Status	Active
Product Type	Header Assemblies
Row Spacing	5.5 mm
Row Spacing - Mating	0.165" (4.20mm)
Series	5566, Mini-Fit Jr 5566,.
Shrouding	Shrouded - 4 Wall
Standards	CSA Certified; UL E29179
Style	Board to Cable/Wire
Terminal Finish	Tin Plated
Terminal Type	Through Hole
Termination	Solder
Termination Style	Through Hole
Tradename	Mini-Fit Jr.
Type	Pin Header
Voltage Rating	-, 600 V

All Prices

Seller	Supplier SKU	Min Price	MOQ	In Stock	Brand	Preferred Tier
Avnet	0039306067	0.455	1	2420	Molex	0.455 @ 100
Waldom	MOLEX 39-30-6067	0.47	150	3217	MOLEX	0.47 @ 150
Power and Signal Group	0039306067	0.5051	3840	100	Molex	0.5051 @ 3840
Onlinecomponents.com	39-30-6067	0.566	60	2246	Molex	0.566 @ 100
jensentools.com	10188556	0.63	1	3217	Molex	0.63 @ 100
Mouser	538-39-30-6067	0.711	1	2650	Molex	0.711 @ 100
Newark	92M0214	0.779	1	100	MOLEX	0.779 @ 100
Digi-Key	1633819	0.829	1	10843	Molex	0.829 @ 100
us.rs-online.com	71456984	0.8686	1	100	Molex Incorporated	0.8686 @ 100
RS Delivers	178-9613	0.8916	1	100	Molex	0.8916 @ 100
Radwell	39-30-6067	1.2	1920	100	MOLEX	1.2 @ 1920
swatee.com	39-30-6067	1.63	1	1556	Molex	1.63 @ 100
Zoro	G7768771	83.0	1	100	Molex	83.0 @ 100
