Schneider BRS39BW461ACA

mpnBRS39BW461ACA
brandname: SCHNEIDER ELECTRIC
manufacturername: SCHNEIDER ELECTRIC

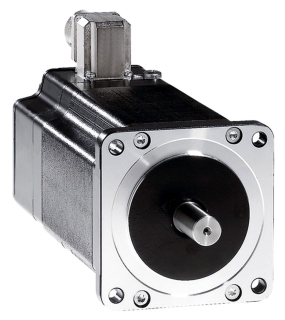

Schneider BRS39BW461ACA Stepping Motor T63873

Brand: Schneider
PartNumber: BRS39BW461ACA
Model: BRS39BW461ACA
PackageQuantity: 1
Binding: Tools & Home Improvement
Manufacturer: SCHNEIDER
Label: SCHNEIDER

Attributes

Key	Value
Accuracy Error	+/- 6 arc min
Ambient Air Temperature.	-25-40 ?C
Ambient Air Temperature.	-25-70 ?C
Angular Acceleration	200000 rad/s?
California Proposition .	Lead and lead compounds.
Centring Collar Depth	2 mm
Centring Collar Diameter	60 mm
China Rohs Regulation	X
Circle Diameter Of The .	98.99 mm
Continuous Stall Torque	5.78 N.m
Device Short Name	BRS3
Electrical Connection	connector
Environmental Disclosure	ENVPEP111101EN
Eu Rohs Directive	Pro-active compliance (.
Feedback Type	single turn encoder
Holding Brake	without
Holding Torque	6.78 N.m
Ip Degree Of Protection	shaft bushing IP41 EN/I.
Length	171 mm
Line Rated Current	2.25 A
Maximum Axial Force Fa	175 N tensile force) \|\|.
Maximum Mechanical Speed	3000 rpm
Maximum Radial Force Fr	110 N first shaft end) .
Maximum Starting Freque.	5.3 kHz
Mercury Free	Yes
Motor Flange Size	85 mm
Motor Type	3-phase stepper motor
Mounting Holes Diameter	6.5 mm
Mounting Support	flange
Net Weight	4.3 kg
Nominal Torque	6 N.m
Number Of Motor Poles	6
Number Of Mounting Holes	4
Peak Stall Torque	5.78 N.m
Product Or Component Ty.	motion control motor
Pvc Free	Yes
Range Compatibility	Lexium SD3
Reach Regulation	Reference contains Subs.
Relative Humidity	15-85 % without condens.
Resistance	6.5 Ohm winding)
Resolution	1000 points/turn \|\| 1.8.
Rohs Exemption Informat.	Yes
Rotor Inertia	3.3 kg.cm?
Second Shaft	without second shaft end
Service Life In Hours	20000 h bearing)
Shaft Diameter	14 mm
Shaft End	untapped
Shaft Length	30 mm
Speed Feedback Resoluti.	10000 points/turn
Standards	EN 50347 \|\| IEC 60072-1
Supply Voltage Limits	230-230 V AC \|\| 325-325.
Sustainable Offer Status	Green Premium product
Temperature Class	F winding IEC/EN 60034-1
Time Constant	10 ms
Type Of Cooling	natural convection
Vibration Resistance	20 m/s? maximum \|\| A EN.
Warranty	18 months
Weee	The product must be dis.

All Prices

Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Weight	Preferred Tier
Radwell	BRS39BW461ACA	1060.11	1	In Stock		SCHNEIDER ELECTRIC		1060.11 @ 1
gordonelectricsupply.com	BRS39BW461ACA	1075.0	1	In Stock	10	SQUARE D		1075.0 @ 1
us.rs-online.com	72066658	1186.82	1	In Stock		Schneider Electric		1186.82 @ 1
mayerelectric.com	SQDBRS39BW461ACA	1403.34	1	In Stock		SQUARE D	9.46	1403.34 @ 1
