Generic XB7NS8444

B0CHD4D7DS

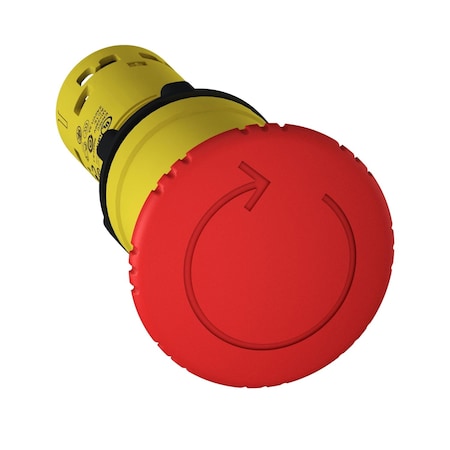

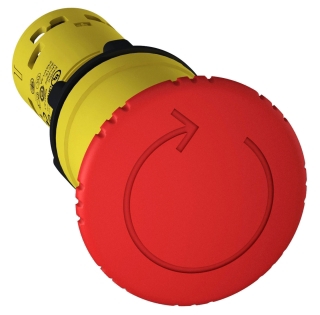

Schneider Emergency Stop -XB7NS8444

Schneider Emergency Stop -XB7NS8444zoom

Attributes

Key Value
[Ui] Rated Insulation V.250 V 3)EN/IEC 60947-1
ActionSnap action
Actuatorlatching;Red mushroom ?.
Actuator ColorRed
Actuator TypeButton
Ambient Air Temperature.-40-70?C
BrandSchneider Electric
Cad Overall Depth72 mm
Cad Overall Height40 mm
Cad Overall Width40 mm
Case ColorYellow
Catalog NumberXB7NS8444
CategorySwitches
CircuitDPST-NC
ColorRed
Color FamilyRed
ConnectionScrew clamp terminals,
Connections - Terminalsscrew clamp terminals, .
Contact Configuration2NC, 2 NC
Contact OperationSnap action
Contact Rating250 V
Country of OriginID - Indonesia, Indones.
Current Rating1.5 A
Current Rating (Amps)1.5A (AC), 220mA (DC)
DescriptionESTOP TTR 2N/C
Device Mountingfixing hole 22.5 mm 22..
Device Short NameXB7
Digi-Key Part Number4008-XB7NS8444-ND
ECCNEAR99
Electrical Durability1000000 cycles, DC-13, .
Electrical Reliability? < 5 x 10exp(-7) 17 V .
EnclosureNEMA 12 UL 50-NEMA 3 UL.
Features-
Fixing Center>= 30 x 40 mm support p.
Head Size40 mm
Illumination Voltage (N.-
Includes-
Ingress ProtectionIP65 - Dust Tight, Wate.
Insulation250 V 3)EN/IEC 60947-1
IP RatingIP65
ItemEstop Ttr 2NC
Item TypeEMERGENCY STOP PUSH-BUT.
Made in USANo
ManufacturerSchneider Electric
Manufacturer Product Nu.XB7NS8444
Manufacturer Standard L.1 Weeks
Maximum Operating Tempe.70 ?C
Mechanical Durability100000 cycles
MfrSchneider Electric
Minimum Operating Tempe.-25 ?C
MountingMounting Holes
Mounting Diameter22 mm
Mounting Hole Size40 mm
Mounting TypePanel Mount, Front, Pan.
Nema Degree Of Protecti.NEMA 12 UL 50 || NEMA 3.
Operating Temperature-25?C ~ 70?C, -25-70 A .
OperationTwst Rel
PackageBox
Panel Cut Out22 mm
Panel Cutout DimensionsCircular - 22.00mm Dia
Positive Openingwith EN/IEC 60947-5-1 a.
Product CertificationsGOST || CCC
Product Or Component Ty.EMERGENCY STOP PUSH-BUT.
Product StatusActive
Reset OperationTwist
SeriesHarmony XB7, Harmony XB.
Shape Of Signaling Unit.round
Shock Resistance15 gn 11 ms) half sine .
Short-Circuit Protection4 A cartridge fuse gG E.
Size22 mm, 0.87
Special FeaturesEMERGENCY STOP PUSH-BUT.
Standard1000000 CYCLES, DC-13, .
StandardsEN/IEC 60204-1 || UL 50.
Sub BrandXB7
Switch FunctionTurn to Release, On-Off
Temperature Operating R.-25 to +70 ?C
Terminal TypeScrew Clamp
TerminationScrew
Termination StyleScrew Terminal
UNSPSC39122216
UPC785901862260
UPC Code785901862260
Vibration Resistance5 gn 2-500 Hz)IEC 60068.
Voltage Rating - AC120 V
Voltage Rating - DC125 V
Voltage, Rated AC240 V
Warranty DescriptionContractual Warranty:18.

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
standardelectricsupply.com227173765.36120Schneider Electric65.36 @ 1
thumbzoomRadwellXB7NS844480.010In StockSCHNEIDER ELECTRIC TELEMECANIQUE80.0 @ 10
thumbzoomNewark96W064281.5310In StockSCHNEIDER ELECTRIC81.53 @ 10
Graybar2562711892.41In StockSquare D (Schneider Electric)92.4 @ 1
thumbzoomDigi-Key1717842495.3715Schneider Electric95.37 @ 1
us.rs-online.com7027392599.15110Schneider Electric99.15 @ 1
thumbzoomcrescentelectric.com16940299.8915Schneider Electric99.89 @ 1
thumbzoomgordonelectricsupply.comXB7NS8444720.91In Stock10SQUARE D720.9 @ 1
thumbzoomZoroG1012661849.910In StockSchneider Electric0.11849.9 @ 10
