Schneider Electric XB7NS8445

B00CONE0ZW

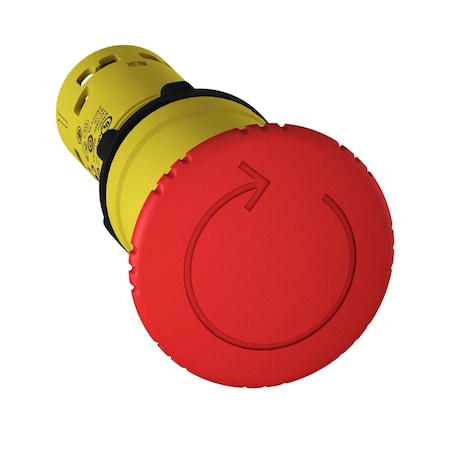

SCHNEIDER ELECTRIC XB7NS8445 Estop Ttr 1N/O1N/C

SCHNEIDER ELECTRIC XB7NS8445 Estop Ttr 1N/O1N/Czoom

Attributes

Key Value
[Ui] Rated Insulation V.250 V 3)EN/IEC 60947-1
ActionSnap action
Actuatormechanical latching;Red.
Actuator ColorRed
Actuator TypeMushroom 40 mm Push-Pull
BrandSchneider Electric
Cad Overall Depth72 mm
Cad Overall Height40 mm
Cad Overall Width40 mm
Case ColorYellow
Catalog NumberXB7NS8445
CategorySwitches
CircuitDPST-NO/NC
ColorRed
Color FamilyRed
ConnectionScrew clamp terminals,
Connections - Terminalsscrew clamp terminals, .
Contact Configuration1 NO + 1 NC, 1NO?1NC
Contact Rating250 V
Contacts Type And Compo.1 NO + 1 NC
Contacts Usagestandard
Country of OriginID - Indonesia, Indones.
Current Rating0.6 A
Current Rating (Amps)1.5A (AC), 220mA (DC)
DescriptionHARMONY XB7, MONOLITHIC.
Device Presentationmonolithic product
Device Short NameXB7
Digi-Key Part Number4008-XB7NS8445-ND
ECCNEAR99
Electrical Durability1000000 cycles, DC-13, .
Electrical Reliability? < 5 x 10exp(-7) 17 V .
EnclosureNEMA 12 UL 50-NEMA 3 UL.
Features-
Fixing Modefixing nut beneath head.
Illumination Voltage (N.-
Includes-
Ingress Protection-
Insulation250 V 3)EN/IEC 60947-1
Ip Degree Of ProtectionIP20 IEC 60529 rear fac.
IP RatingIP65
ItemEstop Ttr 1N/O1N/C
Item TypeEMERGENCY STOP PUSH-BUT.
Made in USANo
ManufacturerSchneider Electric
Manufacturer Product Nu.XB7NS8445
Manufacturer Standard L.1 Weeks
Maximum Operating Tempe.70 ?C
MfrSchneider Electric
Minimum Operating Tempe.-25 ?C
MountingMounting Holes
Mounting Diameter22 mm
Mounting Hole Size22 mm
Mounting TypePanel Mount, Front, Pan.
Operating Temperature-, -25-70 A Degrees C
OperationTwst Rel
Operator Profilered mushroom ? 40 mm, u.
PackageBox
Panel Cut Out22 mm
Panel Cutout Dimensions-
Positive Openingwith EN/IEC 60947-5-1 a.
Product StatusActive
Protective TreatmentTH
ResetTurn to Release
Reset OperationTwist
SeriesHarmony XB7, Harmony XB.
Short-Circuit Protection4 A cartridge fuse gG E.
Size22 mm, 0.87
Special FeaturesEMERGENCY STOP PUSH-BUT.
Standard1000000 CYCLES, DC-13, .
StandardsEN/IEC 60947-5-5 || UL .
Sub BrandXB7
Switch FunctionTurn to Release, On-Off.
Temperature Operating R.-25 to +70 ?C
Terminal TypeScrew Clamp
Terminals Description I.(13-14)NO || (21-22)NC
TerminationScrew
Termination Style-
Tightening Torque0.8-1.2 N.m EN 60947-1
UNSPSC39122216
UPC785901803164
UPC Code785901803164
Vibration Resistance5 gn 2-500 Hz)IEC 60068.
Voltage Rating120 V
Voltage Rating - AC120 V
Voltage Rating - DC125 V
Voltage, Rated AC240 V
Warranty DescriptionContractual Warranty:18.

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
RS Delivers815-305432.1961In StockSchneider Electric32.196 @ 1
thumbzoomRadwellXB7NS844580.010In StockSCHNEIDER ELECTRIC TELEMECANIQUE80.0 @ 10
thumbzoomZoroG765531580.7510In StockSchneider Electric2.080.75 @ 10
thumbzoomDigi-Key1661444581.06110Schneider Electric81.06 @ 1
Graybar2550057390.63041In StockSquare D (Schneider Electric)90.6304 @ 1
thumbzoomcrescentelectric.com4889699.8917Schneider Electric99.89 @ 1
thumbzoomNewark96W0643160.6910In StockSCHNEIDER ELECTRIC160.69 @ 10
us.rs-online.com70273347161.471In StockSchneider Electric161.47 @ 1
