SIEMENS MT0500A

B0052MXOLS

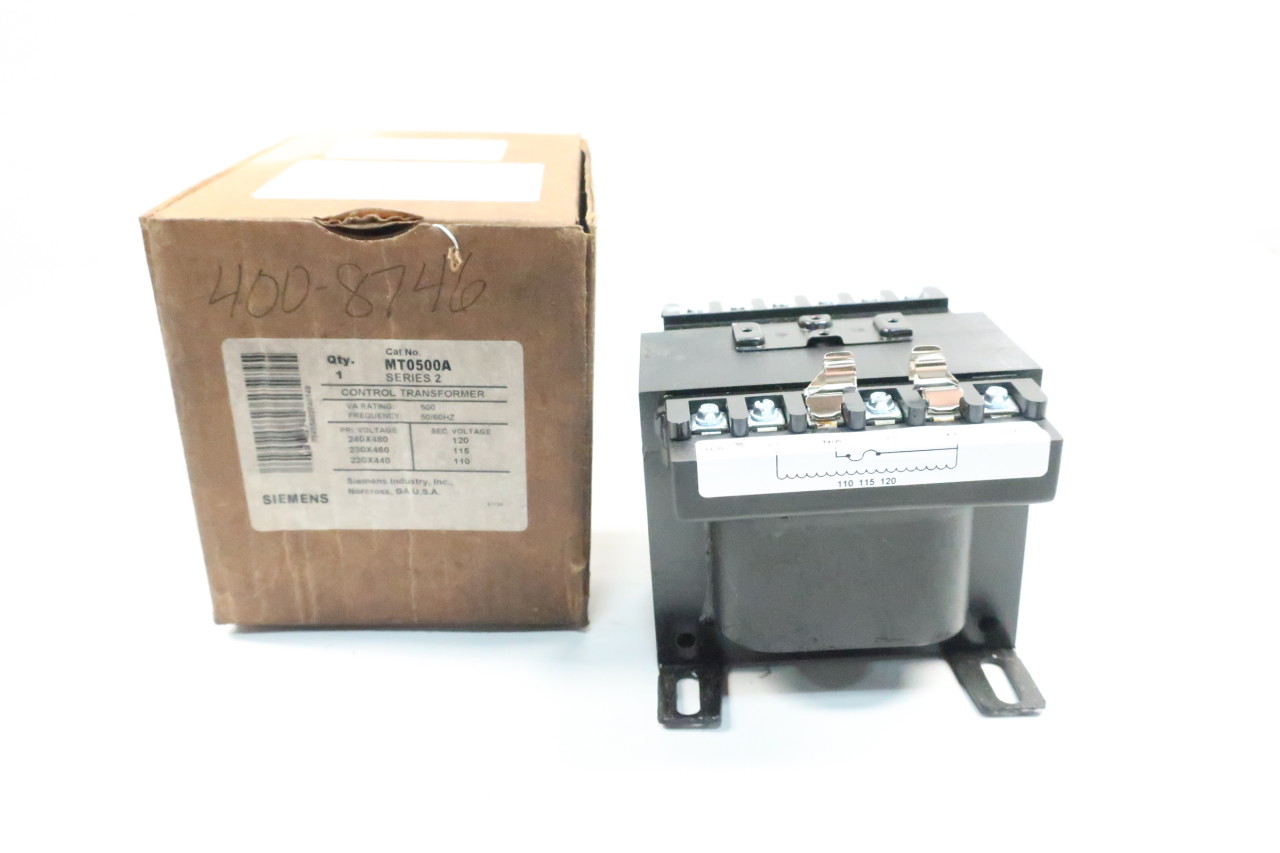

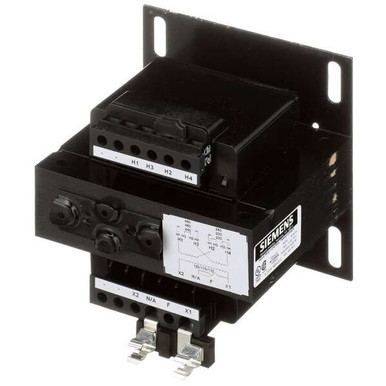

Siemens MT0500A Industrial Power Transformer, Domestic, 240 X 480, 230 X 460, 220 X 440 Primary Volts 50/60Hz, 120/115/110 Secondary Volts, 500VA Rating

Siemens MT0500A Industrial Power Transformer, Domestic, 240 X 480, 230 X 460, 220 X 440 Primary Volts 50/60Hz, 120/115/110 Secondary Volts, 500VA Ratingzoom

Attributes

Key Value
Available Voltage240 ; 480 V
BrandSiemens
Catalog NumberMT0500A
CategoryTransformers
Center TapNo
ColorBlack
Current - Output (Max)-
Current Stock22
Depth5.5 in
DescriptionCONTROL TRANSFORMER,500.
Digi-Key Part Number3473-MT0500A-ND
Enclosure FinishEpoxy Resin Varnish
Enclosure Style - Trans.Open
Estimated Weight19.00
FusedNo
Height4.75 in
Height - Seated (Max)144.53mm
Hz60
Hz - Electrical60 Hz
Includes2-Pole Class "CC" Fuse .
Input Voltage - Transfo.240V AC, 480V AC
Input voltage / _1 / ra.240 V
Input voltage / _2 / ra.480 V
Input voltage / _3 / ra.230 V
Input voltage / _4 / ra.460 V
International ShippingNo
Item - TransformerControl Transformer
Lead TimeExpected to ship in 1-2.
ManufacturerSiemens Industry, Inc.,.
Manufacturer Product Nu.MT0500A
Manufacturer Standard L.3 Weeks
Manufacturers Warranty .1 yr
Maximum Input Current:0.29@240VAC A
MfrSiemens
MountingPanel
Mounting - TransformerFoot
Mounting TypeChassis Mount
MpnMT0500A
Needed Voltage120 VAC ; 115 VAC ; 110.
Operating apparent outp.500 VA
Output Voltage120VAC
Output Voltage - Transf.120V AC
Output voltage / _1 / r.120 V
Output voltage / _2 / r.115 V
Output voltage / _3 / r.110 V
PackageBulk
Part NumberMT0500A
Phase1, 1 Phase
Phase - Electrical1
Phase number / of the i.1
Phase number / of the o.1
Power - Max500VA
Power Rating500 VA
Primary TypeIndustrial Transformer
Primary Voltage240 (230, 220)/480 (460.
Primary Winding(s)-
Product StatusActive
Protective DeviceSecondary Fuse
Secondary Voltage120 (115, 110) VAC
Secondary Winding(s)-
SeriesM Series, -
Size / Dimension150.37mm L x 133.35mm W
SKUZO-G8527775
StandardsCSA Approved, UL Listed
SubCategoryElectrical
Temp. Rise55 Degrees C
TerminationScrew
Termination StyleTerminal Block
Transformer TypeWire-Wound
TypeControl Transformer
UPC754554027401
UPC Code754554027401
VA Rating500VA
VA Rating - Transformer500 VA
Voltage - Isolation-
Voltage - Primary220V, 230V, 240V, 440V,.
Voltage - Secondary (Fu.110V, 115V, 120V
Width5.25 in

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomNRI IndustrialD62302370.271In StockSIEMENS70.27 @ 1
thumbzoomindustrialzone.comMT0500A126.522In StockSiemens18.0126.52 @ 2
standardelectricsupply.com34745184.581In StockSiemens184.58 @ 1
thumbzoommotorsandcontrol.comMT0500A190.291In StockSiemens19.0190.29 @ 1
thumbzoomsustainablesupply.comC1196712209.591In StockSiemens17.04209.59 @ 1
thumbzoomKelly HayesMT0500A252.881In StockSiemens252.88 @ 1
thumbzoomZoroG8527775253.99118Siemens17.04253.99 @ 1
thumbzoomDigi-Key14636805254.0211Siemens254.02 @ 1
us.rs-online.com70290106267.01160Siemens267.01 @ 1
steinerelectric.com46614275.891In StockSiemens275.89 @ 1
thumbzoomsimsupply.comZO-G8527775316.05122Siemens316.05 @ 1
Dale-ElectricMT0500A318.421In StockSiemens Industry, Inc.318.42 @ 1
thumbzoomturtle.comITE MT0500A354.131In StockSiemens354.13 @ 1
kirbyrisk.com1843835362.361In StockSiemens362.36 @ 1
thumbzoomcrescentelectric.com181901458.771In StockSiemens458.77 @ 1
