Square D D621250-9013GSG2J20

B07F3BZVCZ

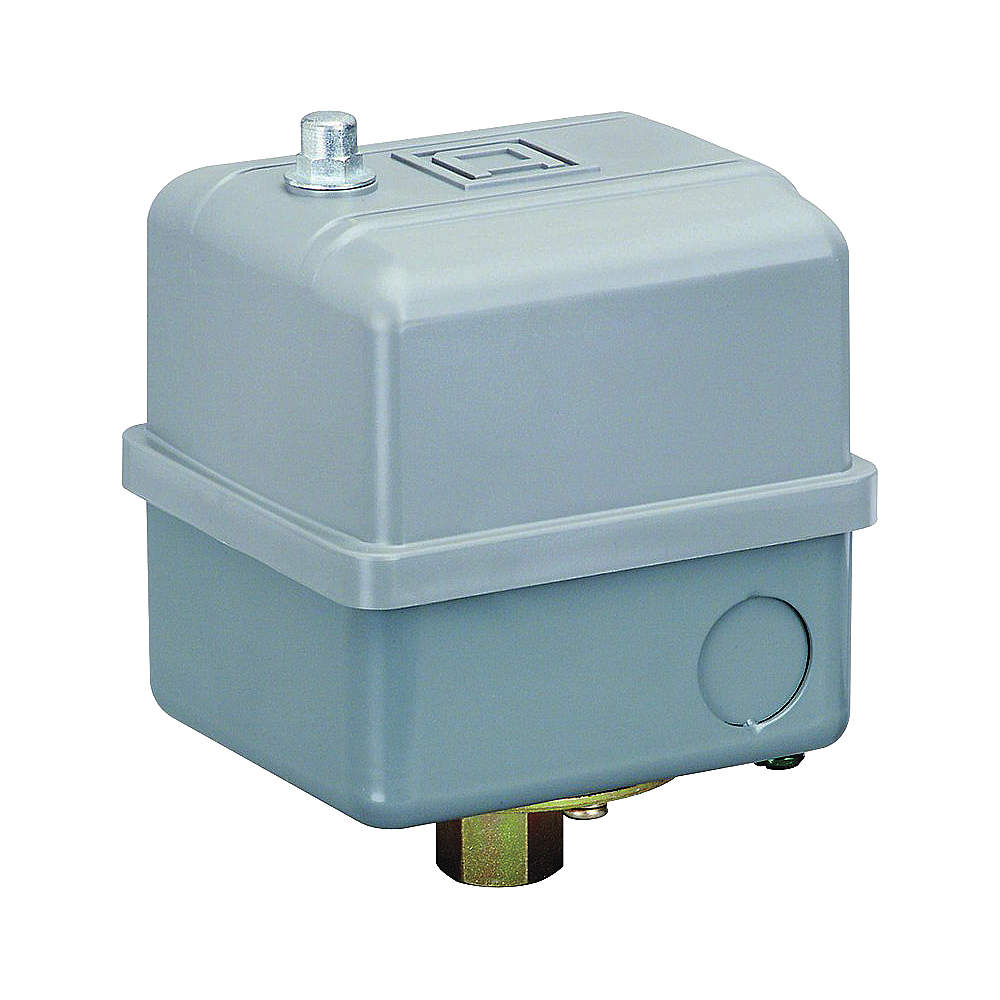

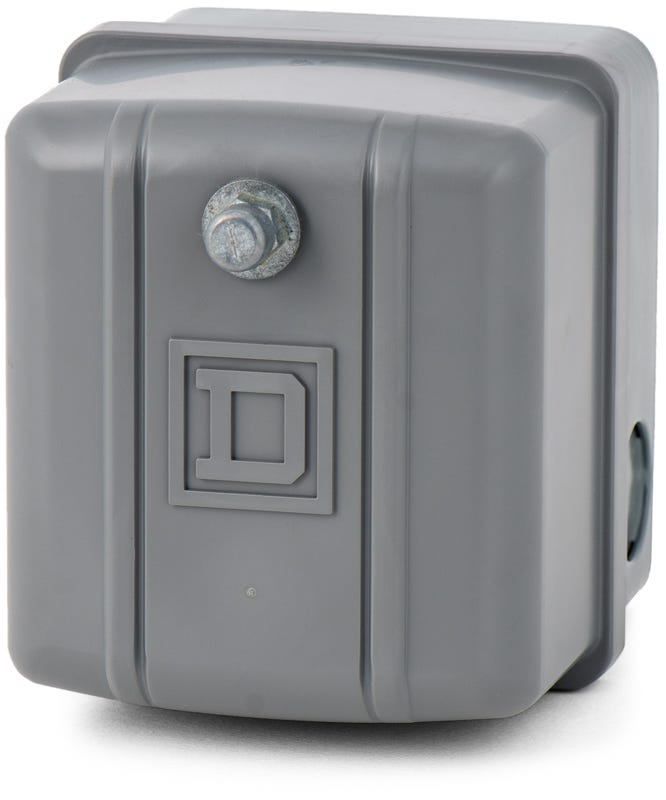

Square D 9013GSG2J20 Pressure Switch SER C D621250

Square D 9013GSG2J20 Pressure Switch SER C D621250zoom

Attributes

Key Value
[Ui] Rated Insulation V.575 V UL 508
AC Contact Rating10A @ 575V, 10 A @ 575V
Adjustable Range On Ris.20-80 psi
Ambient Air Temperature.-33-257 ?F
Ambient Air Temperature.-33-257 ?F
ApprovalsCSA, UL
Approximate Adjustable .15-30 psi
ASINB000LF61AM
Batteries Required?No
Best Sellers Rank#555,104 in Industrial .
BrandSquare D, Square D by S.
Cable Entry Number3 knock-outs for 1/2" c.
California Proposition .Diisononyl phthalate (D.
CategoryIndustrial Automation a.
CertificationNema
Circularity ProfileENVEOLI111210EN
Contact TypeDPST
Contacts Type And Compo.2 NC, snap action, DPST.
Controlled Fluidair -22-257 ?F) || fres.
Current Stock22
Customer Reviews5.0 out of 5 stars1 rat.
Date First AvailableJanuary 16, 2007
Depth3.88 in
DescriptionPUMPTROL, 9013GS, PUMP .
Destruction Pressure300 psi
DifferentialAdjustable Differential.
Digi-Key Part Number4008-9013GSG2J20-ND
Electrical Circuit Typepower circuit
Electrical ConnectionScrew Terminals, Screw-.
Electrical Durability100000 cycles 10 cyc/mn
Enclosure RatingNEMA 1
Environmental DisclosureENVPEP111211EN
Eu Rohs DirectivePro-active compliance (.
Family SeriesSquare D Pressure Switc.
Fluid Connection Type0.25 inch NPSF internal.
Gauge Proof Pressure500 psig
Gross Weight1.95 lbs
Gtin785901559887
Height5.4 in, 4
HP @ 1 Phase - 120V2 hp
HP @ 1 Phase - 230V3
HP @ 1 Phase - 240V3 hp
HP @ 3 Phase - 240V5 hp
HP @ 3 Phase - 480V5 hp
Included ComponentsUnit^Instruction Guide
Increasing Pressure20-80 psi
International ShippingNo
Ip Degree Of ProtectionIP20 conforming to IEC .
IP RatingIP20 (IEC 60529)
ItemPressure Switch
Item Dimensions LxWxH6 x 5 x 4 inches
Item model number9013GSG2J20
Item Number9013GSG2J20
Item Package Quantity1
Item Weight2 pounds
Lead TimeExpected to ship in 1-2.
Length6
Local Displaywithout
Manual Switch ActionNone
ManufacturerSquare D, Schneider Ele.
Manufacturer Part Number155353
Manufacturer Product Nu.9013GSG2J20
Manufacturer Standard L.1 Weeks
Materialpolypropylene Cover || .
Materials In Contact Wi.zinc plated steel or eq.
Maximum Operating Rate10 cyc/mn
Measurement SystemMetric
Mechanical Durability300000 cycles
Mercury FreeYes
MFR9013GSG2J20
MfrSchneider Electric
Motor Power Kw1.5 kW 2 hp)115 V AC, 1.
Mpn9013GSG2J20
Nema Degree Of Protecti.NEMA 1 UL 50
Nema RatingNEMA 1
NEMA Rating1
Net Weight2.25 lb(US), 2.25 lbs
Operating Positionany position
Operating Voltage120 Volts
PackageBox
Part Number9013GSG2J20
Port Connection1/4 NPT Female
Power SourceCorded Electric
Pressure Actuatordiaphragm
Pressure Sensor Name9013GS
Pressure Sensor Size80 psi 5-60 psi)
Pressure Sensor Typeelectromechanical press.
Pressure Switch ActionStandard
Pressure Switch Applica.Air Compressor and Wate.
Pressure Switch Differe.15 to 30 psi
Pressure Switch Electri.DPST
Pressure Switch Factory.20/40 psi
Pressure Switch Port Ty.(1) Port, 1/4 in FNPS
Pressure Switch Range5 to 80 psi
Pressure Switch Type Of.regulation between 2 th.
Pressure Switch UnloaderNo
Product CertificationsCSA file LR25490 || UL .
Product Dimensions6 x 5 x 4 inches
Product Series9013G
Product Specific Applic.control electrically dr.
Product StatusActive
Product with faster shi.true
Protective TreatmentNone
Quantity Per Set1
Range Of ProductSquare D Pumptrol
Reach RegulationReference contains Subs.
Repeat Accuracy+/- 3 %
Rohs Exemption Informat.Yes
Scale Typeadjustable differential
Series9013GSG, -, 9013
Settinginternal
Shippingundefined (Fixed Shippi.
Short-Circuit Protection20 A cartridge fuse gG
SKUZO-G1092436, 11994702
Special FeaturesNitrile (Buna-N) Diaphr.
StandardsCE || UL 508 || NSF ANS.
SubCategoryElectrical
Sustainable Offer StatusGreen Premium product
Switch StylePressure Switch, DPST
Temp. Range-22 Degrees to 257 Deg.
TerminalDPST
Terminal Block Type4 terminals
Terminals Description I.L2-T2 || L1-T1
TypePump Switch
Type of CircuitNormally Closed
Type Of Packingindividual
Upc785901559887
UPC785901559887
Value Of Setting20...40 psi
Voltage Rating115/575 V
Warranty18 months
Width3.44 in, 5

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomGalco9013GSG2J20-SQD74.511In StockSquare D2.2574.51 @ 1
thumbzoomsustainablesupply.comC120877375.321In StockSquare D2.075.32 @ 1
thumbzoompioneergeneralstore.com612877175.811In StockSQUARE D BY SCHNEIDER ELECTRIC75.81 @ 1
thumbzoomZoroG109243678.29156Square D2.078.29 @ 1
Life and Home4178305587.751In StockSquare D87.75 @ 1
thumbzoomsuperbreakers.com9013GSG2J2088.311In StockSquare D88.31 @ 1
thumbzoomsimsupply.comZO-G109243692.76122Square D92.76 @ 1
thumbzoomDigi-Key1637799793.0912Schneider Electric93.09 @ 1
thumbzoomshelllumber.comVORG612877193.36132SQUARE D93.36 @ 1
thumbzoomsupremediy.comVORG612877193.36132SQUARE D93.36 @ 1
thumbzoomgordonelectricsupply.com9013GSG2J2093.591In Stock10SQUARE D93.59 @ 1
Toolbox Supply1199470297.181In StockSquare D97.18 @ 1
thumbzoommidwestapplianceparts.com9013GSG2J20-SQ-P97.721In StockSquared97.72 @ 1
thumbzoommostelectric.com9013GSG2J20100.0814SQUARE D/TELEMECANIQUE100.08 @ 1
thumbzoomptacsolutions.com9013GSG2J20100.5516Schneider Electric (Square D)100.55 @ 1
thumbzoommayerelectric.comSQD9013GSG2J20101.221In StockSQUARE D2.25101.22 @ 1
thumbzoomHardware and ToolsELKA-3226106.691In StockSquare D106.69 @ 1
thumbzoomzaynesolutions.com6128771114.0411SQUARE D114.04 @ 1
thumbzoomparisfarmersunion.com6128771129.991In StockSQUARE D129.99 @ 1
thumbzoomindustrialstores.com9013GSG2J20135.1815Square D135.18 @ 1
thumbzoomNational Supply Network69658169136.631In StockSquare D136.63 @ 1
thumbzoomhomeessentialsdirect.com9013GSG2J20140.391In StockSchneider Electric2.0140.39 @ 1
grainger.caGUS6B446147.273295461In StockSQUARE D2.0147.27329546 @ 1
thumbzoomRaptor SuppliesAJ2JGM219.0676411In StockSQUARE D219.067641 @ 1
