Square D by Schneider Electric 9013GSG2J21

B00CON9EVC

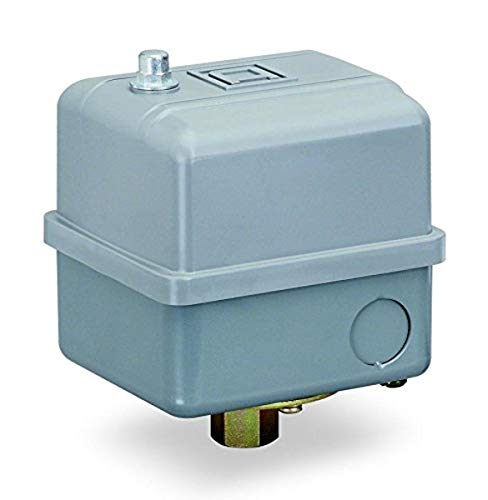

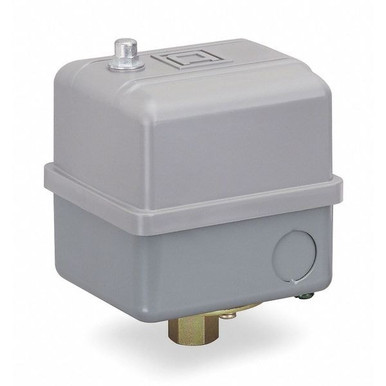

Square D by Schneider Electric 9013GSG2J21 Pressure Switch, 80 psi Sensor, NEMA 1 Enclosure, 1/4" NPSF, 30-50 psi Points

Square D by Schneider Electric 9013GSG2J21 Pressure Switch, 80 psi Sensor, NEMA 1 Enclosure, 1/4" NPSF, 30-50 psi Pointszoom

Attributes

Key Value
[Ui] Rated Insulation V.575 V UL 508
AC Contact Rating10A @ 575V
Actuation TypeDiaphragm
Adjustable Range On Ris.20-80 psi
Ambient Air Temperature.-33-257 ?F
Ambient Air Temperature.-33-257 ?F
Approximate Adjustable .15-30 psi
BrandSquare D
Burst Pressure300 psi
Cable Entry Number3 knock-outs for 1/2" c.
California Proposition .Diisononyl phthalate (D.
Circularity ProfileENVEOLI111210EN
ConditionNew
Contacts Type And Compo.2 NC, snap action, DPST.
Controlled Fluidair -22-257 ?F) || fres.
Current Stock47
Depth3.88 in
Destruction Pressure300 psi
DifferentialAdjustable Differential.
Electrical Circuit Typepower circuit
Electrical Connectionscrew-clamp terminals 1.
Electrical Durability100000 cycles 10 cyc/mn
Environmental DisclosureENVPEP111211EN
Estimated Lead Time (in.4
Eu Rohs DirectivePro-active compliance (.
Fluid Connection Type0.25 inch NPSF internal.
GTIN785901319771
Height5.4 in
HP @ 1 Phase - 120V2 hp
HP @ 1 Phase - 230V3
HP @ 1 Phase - 240V3 hp
HP @ 3 Phase - 240V5 hp
HP @ 3 Phase - 480V5 hp
International ShippingNo
Ip Degree Of ProtectionIP20 conforming to IEC .
ItemPressure Switch
Lead TimeExpected to ship in 1-2.
Local Displaywithout
Manual Switch ActionNone
ManufacturerSquare D
Materialpolypropylene Cover || .
Materials In Contact Wi.zinc plated steel or eq.
Maximum Operating Rate10 cyc/mn
Mechanical Durability300000 cycles
Mercury FreeYes
Motor Power Kw1.5 kW 2 hp)115 V AC, 1.
Mpn9013GSG2J21
Nema Degree Of Protecti.NEMA 1 UL 50
NEMA Rating1
Net Weight2.25 lb(US)
Operating Positionany position
Pressure ActuatorDiaphragm
Pressure Sensor Name9013GS
Pressure Sensor Size80 psi 5-60 psi)
Pressure Sensor Typeelectromechanical press.
Pressure Switch ActionStandard
Pressure Switch Applica.Air Compressor and Wate.
Pressure Switch Differe.15 to 30 psi
Pressure Switch Electri.DPST
Pressure Switch Factory.30/50 psi
Pressure Switch Port Ty.(1) Port, 1/4 in FNPS
Pressure Switch Range5 to 80 psi
Pressure Switch Type Of.regulation between 2 th.
Pressure Switch UnloaderNo
Product CertificationsCSA file LR25490 || UL .
Product Specific Applic.control electrically dr.
Protective TreatmentNone
Quantity Per Set1
Range Of ProductSquare D Pumptrol
Reach RegulationReference contains Subs.
Repeat Accuracy+/- 3 %
Rohs Exemption Informat.Yes
Scale Typeadjustable differential
Series9013GSG
Settinginternal
Short-Circuit Protection20 A cartridge fuse gG
SKUZO-G1368001
Special FeaturesNitrile (Buna-N) Diaphr.
StandardsNSF ANSI 372 || UL 508 .
SubCategoryElectrical
Sustainable Offer StatusGreen Premium product
Temp. Range-22 Degrees to 257 Deg.
Terminal Block Type4 terminals
Terminals Description I.L1-T1 || L2-T2
Type Of Packingindividual
UPC785901319771
Value Of Setting30...50 psi
Warranty18 months
Weight2.000000
Width3.44 in

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomindustrialrefrigerationparts.com9013GSG2J2173.331In StockSquare D2.073.33 @ 1
thumbzoomsustainablesupply.comC117924076.91In StockSquare D1.9576.9 @ 1
AmazonTPB00G5LYCX480.091In Stock5Schneider Electric80.09 @ 1
Onlinecomponents.com9013GSG2J2180.41In StockSquare D80.4 @ 1
thumbzoomZoroG136800183.051131Square D1.9583.05 @ 1
thumbzoomWhitehead IndustrialGSG288.9912Square D1.088.99 @ 1
thumbzoomgordonelectricsupply.com9013GSG2J2193.591In StockSQUARE D93.59 @ 1
thumbzoommidwestapplianceparts.com9013GSG2J21-SQ-P97.721In StockSquared97.72 @ 1
thumbzoomsimsupply.comZO-G136800198.391In StockSquare D98.39 @ 1
thumbzoommostelectric.com9013GSG2J21100.081In StockSQUARE D/TELEMECANIQUE100.08 @ 1
thumbzoommayerelectric.comSQD9013GSG2J21101.221In StockSQUARE D2.25101.22 @ 1
thumbzoomNational Supply Network69658151140.071In StockSquare D140.07 @ 1
thumbzoomRaptor SuppliesAH2NVC185.9717341In StockSQUARE D185.971734 @ 1
