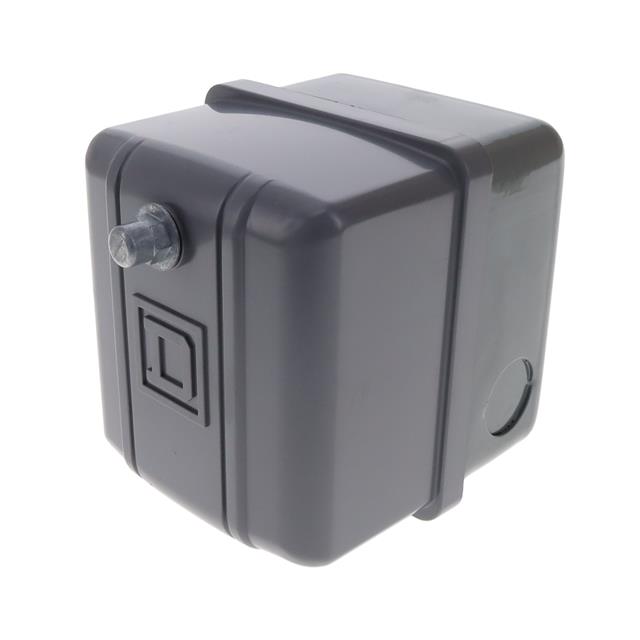

Square D 9013GSG2J25 Pressure Switch DPST 60/80 psi 1/4 FNPS

Square D 9013GSG2J25 Pressure Switch DPST 60/80 psi 1/4 FNPSzoom

Attributes

Key Value
[Ui] Rated Insulation V.575 V UL 508
AC Contact Rating10A @ 575V
Actuation TypeDiaphragm
Adjustable Range On Ris.20-80 psi
Ambient Air Temperature.-33-257 ?F
Ambient Air Temperature.-33-257 ?F
Approximate Adjustable .15-30 psi
Best Sellers RankSee Top 100 in Industri.
BrandSquare D, Square D by S.
Cable Entry Number3 knock-outs for 1/2" c.
California Proposition .Diisononyl phthalate (D.
CategoryIndustrial Automation a.
Circuit TypePower Circuit
Circularity ProfileENVEOLI111210EN
ColorGrey
Connector TypeScrew
Contacts Type And Compo.2 NC, snap action, DPST.
Controlled Fluidair -22-257 ?F) || fres.
Current Stock3
Date First AvailableSeptember 14, 2004
Depth3.88 in
DescriptionSQUARE D PUMPTROL, PUMP.
Destruction Pressure300 psi
DifferentialAdjustable Differential.
Digi-Key Part Number4008-9013GSG2J25-ND
Electrical Circuit TypePower Circuit
Electrical Connectionscrew-clamp terminals 1.
Electrical Durability100000 cycles 10 cyc/mn
Environmental DisclosureENVPEP111211EN
Eu Rohs DirectivePro-active compliance (.
Fluid Connection Type0.25 inch NPSF internal.
GTIN785901560395
Height5.4 in
HP @ 1 Phase - 120V2 hp
HP @ 1 Phase - 240V3 hp
HP @ 3 Phase - 240V5 hp
HP @ 3 Phase - 480V5 hp
International ShippingNo
Ip Degree Of ProtectionIP20 conforming to IEC .
IP RatingIP20 (IEC 60529)
ItemPressure Switch
Item model number9013GSG2J25
Lead TimeExpected to ship in 1-2.
Local Displaywithout
Manual Switch ActionNone
ManufacturerSchneider Electric
Manufacturer Product Nu.9013GSG2J25
Manufacturer Standard L.1 Weeks
Materialpolypropylene Cover || .
Materials In Contact Wi.zinc plated steel or eq.
Maximum Operating Rate10 cyc/mn
Mechanical Durability300000 cycles
Mercury FreeYes
MfrSchneider Electric
Motor Power Kw1.5 kW 2 hp)115 V AC, 1.
Mpn9013GSG2J25
Nema Degree Of Protecti.NEMA 1 UL 50
NEMA Rating1
Net Weight2.25 lb(US)
Operating Positionany position
Operating Voltage120 Volts
PackageBox
Package Dimensions5.5 x 4.6 x 4 inches; 1.
Pressure ActuatorDiaphragm
Pressure Sensor Name9013GS
Pressure Sensor Size80 psi 5-60 psi)
Pressure Sensor Typeelectromechanical press.
Pressure Switch ActionStandard
Pressure Switch Applica.Air Compressor and Wate.
Pressure Switch Differe.15 to 30 psi
Pressure Switch Electri.DPST
Pressure Switch Factory.60/80 psi
Pressure Switch Port Ty.(1) Port, 1/4 in FNPS
Pressure Switch Range5 to 80 psi
Pressure Switch Type Of.regulation between 2 th.
Pressure Switch UnloaderNo
Product CertificationsUL listed file E12158 |.
Product Dimensions5.9 x 4.5 x 4 inches; 0.
Product Specific Applic.control electrically dr.
Product StatusActive
Product with faster shi.true
Protective TreatmentNone
Quantity Per Set1
Range Of ProductSquare D Pumptrol
Reach RegulationReference contains Subs.
Repeat Accuracy+/- 3 %
Rohs Exemption Informat.Yes
Scale Typeadjustable differential
Series9013GSG, -
Settinginternal
Shippingundefined (Fixed Shippi.
Short-Circuit Protection20 A cartridge fuse gG
SKUZO-G7518892
Special FeaturesNitrile (Buna-N) Diaphr.
StandardsCE || UL 508 || NSF ANS.
SubCategoryElectrical
Sustainable Offer StatusGreen Premium product
Switch TypePressure Switch
Temp. Range-22 Degrees to 257 Deg.
TerminalDPST
Terminal Block Type4 terminals
Terminals Description I.L1-T1 || L2-T2
TypePump Switch
Type Of Packingindividual
UPC785901560395
Value Of Setting60...80 psi
Warranty18 months
Width3.44 in

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
AmazonB000IJR5JW70.481In StockSchneider Electric70.48 @ 1
thumbzoomZoroG751889274.49130Square D1.6274.49 @ 1
thumbzoomsustainablesupply.comC268191583.031In StockSquare D1.683.03 @ 1
thumbzoomsimsupply.comZO-G751889288.2613Square D88.26 @ 1
thumbzoomDigi-Key1637851693.0911Schneider Electric93.09 @ 1
thumbzoomgordonelectricsupply.com9013GSG2J2593.591In Stock10SQUARE D93.59 @ 1
thumbzoommidwestapplianceparts.com9013GSG2J25-SQ-P97.7212Squared97.72 @ 1
thumbzoommayerelectric.comSQD9013GSG2J25101.221In StockSQUARE D2.25101.22 @ 1
AmazonTPB000LEBVG2102.481In Stock5Schneider Electric102.48 @ 1
thumbzoomhomeessentialsdirect.com9013GSG2J25140.391In StockSchneider Electric140.39 @ 1
thumbzoomNational Supply Network69669976141.911In StockSquare D141.91 @ 1
thumbzoomRaptor SuppliesAH2NVE184.97729251In StockSQUARE D184.9772925 @ 1
