Square D by Schneider Electric 9013GSG2J16

B00CON8X1Y

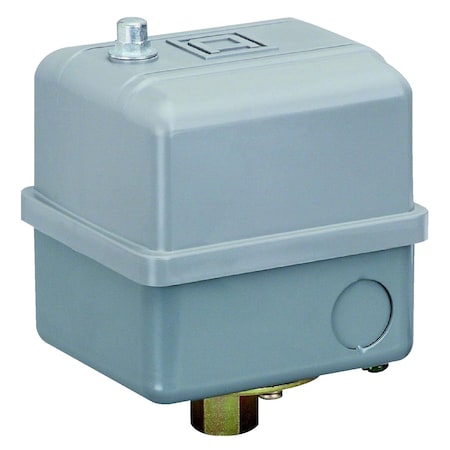

Square D by Schneider Electric 9013GSG2J16 Pressure Switch, 80 psi Sensor, NEMA 1 Enclosure, 1/4" NPSF, 8-20 psi Points

Square D by Schneider Electric 9013GSG2J16 Pressure Switch, 80 psi Sensor, NEMA 1 Enclosure, 1/4" NPSF, 8-20 psi Pointszoom

Attributes

Key Value
[Ui] Rated Insulation V.575 V UL 508
Actuation TypeDiaphragm
Adjustable Range On Ris.20-80 psi
Ambient Air Temperature.-33-257 ?F
Ambient Air Temperature.-33-257 ?F
Approximate Adjustable .15-30 psi
Burst Pressure300 psi
Cable Entry Number3 knock-outs for 1/2" c.
California Proposition .Diisononyl phthalate (D.
CategoryIndustrial Automation a.
Circuit TypePower Circuit
Circularity ProfileENVEOLI111210EN
Contacts Type And Compo.2 NC, snap action, DPST.
Controlled Fluidair -22-257 ?F) || fres.
Country of Origin00 - Unknown
Depth3.88 in
DescriptionPUMPTROL, 9013GS, PUMP .
Destruction Pressure300 psi
DifferentialAdjustable Differential.
Digi-Key Part Number4008-9013GSG2J16-ND
ECCNEAR99
Electrical Circuit TypePower Circuit
Electrical ConnectionScrew-Clamp Terminals, .
Electrical Durability100000 cycles 10 cyc/mn
Environmental DisclosureENVPEP111211EN
Eu Rohs DirectivePro-active compliance (.
Fluid Connection Type0.25 inch NPSF internal.
Height5.4 in
HP @ 1 Phase - 230V3
Ip Degree Of ProtectionIP20 conforming to IEC .
IP RatingIP20 (IEC 60529)
ItemPressure Switch
Local Displaywithout
ManufacturerSchneider Electric
Manufacturer Product Nu.9013GSG2J16
Manufacturer Standard L.1 Weeks
Materialpolypropylene Cover || .
Materials In Contact Wi.zinc plated steel or eq.
Maximum Operating Rate10 cyc/mn
Mechanical Durability300000 cycles
Mercury FreeYes
MfrSchneider Electric
Motor Power Kw1.5 kW 2 hp)115 V AC, 1.
Nema Degree Of Protecti.NEMA 1 UL 50
NEMA RatingNEMA 1
Net Weight2.25 lb(US)
Operating Positionany position
PackageBox
Package Quantity1
Pressure ActuatorDiaphragm
Pressure Sensor Name9013GS
Pressure Sensor Size80 psi 5-60 psi)
Pressure Sensor TypeElectromechanical Press.
Pressure Switch ActionStandard
Pressure Switch Applica.Air Compressor and Wate.
Pressure Switch Differe.15 to 30 psi
Pressure Switch Electri.DPST
Pressure Switch Factory.8/20 psi
Pressure Switch Port Ty.(1) Port, 1/4 in FNPS
Pressure Switch Range5 to 80 psi
Pressure Switch Type Of.regulation between 2 th.
Product CertificationsUL listed file E12158 |.
Product Specific Applic.control electrically dr.
Product StatusActive
Promotion RestrictionNot eligible for promot.
Protective Treatmentnone
Quantity Per Set1
Range Of ProductSquare D Pumptrol
Reach RegulationReference contains Subs.
Repeat Accuracy+/- 3 %
Rohs Exemption Informat.Yes
Scale Typeadjustable differential
Series-
Settinginternal
Short-Circuit Protection20 A cartridge fuse gG
Special FeaturesMercury Free; Green Pre.
StandardsNSF ANSI 372 || UL 508 .
Sustainable Offer StatusGreen Premium product
Temp. Range-33 to 257 ?F
Terminal Block Type4 terminals
Terminals Description I.L2-T2 || L1-T1
TypePump Switch, Electromec.
Type Of Packingindividual
UNSPSC39122210
Value Of Setting8...20 psi
Warranty18 months
Width3.44 in

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomgordonelectricsupply.com9013GSG2J1678.091In Stock10SQUARE D78.09 @ 1
thumbzoomDigi-Key1637806293.0912Schneider Electric93.09 @ 1
thumbzoomZoroG056348693.091In StockSquare D1.9393.09 @ 1
thumbzoomsustainablesupply.comC304543698.851In StockSquare D1.9398.85 @ 1
thumbzoommayerelectric.comSQD9013GSG2J16101.221In StockSQUARE D2.25101.22 @ 1
Graybar22098982123.17761In StockSquare D (Schneider Electric)123.1776 @ 1
