Schneider Electric EDB16020

B00CONP8UI

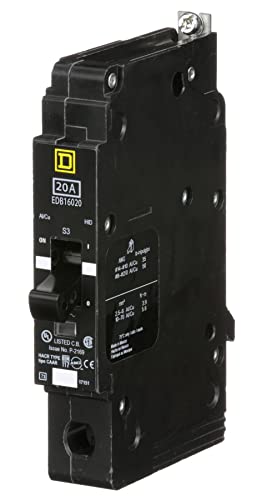

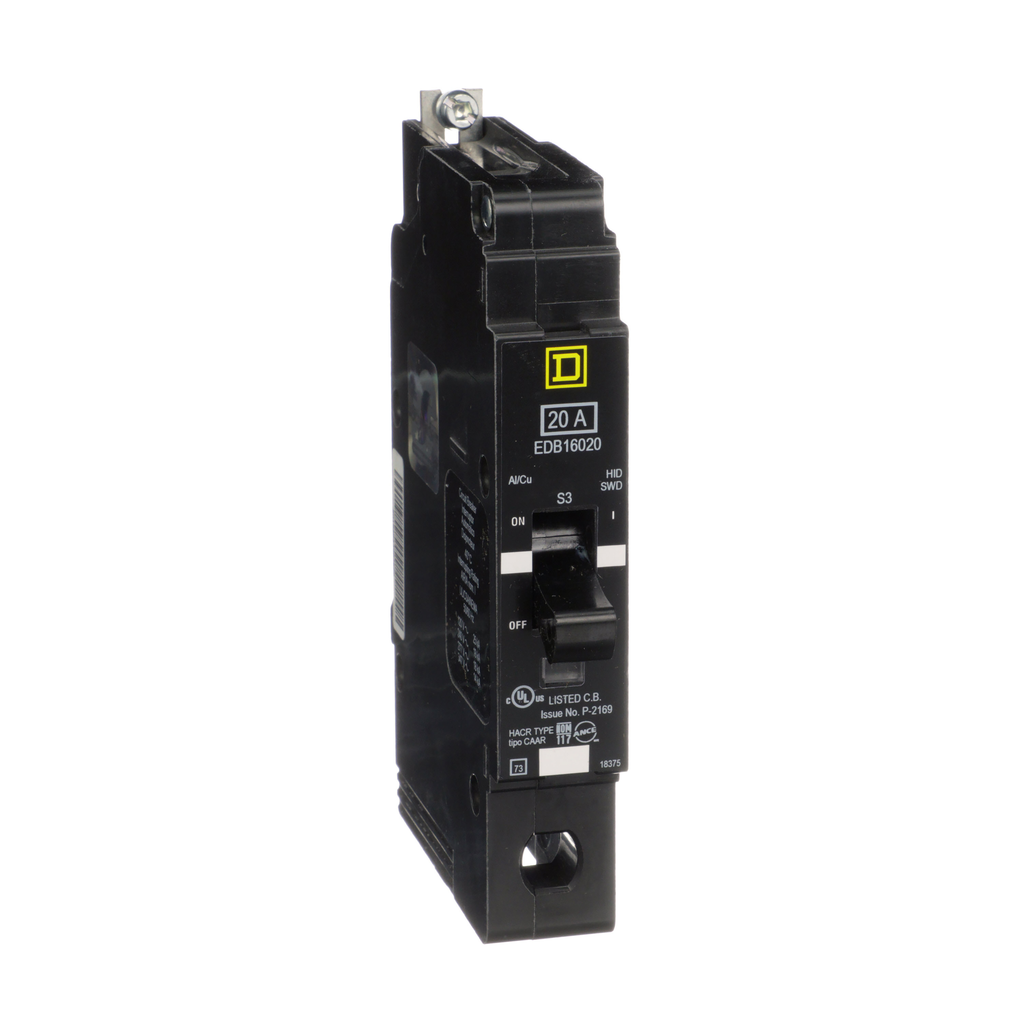

SCHNEIDER ELECTRIC 600-VOLT 20-AMP EDB16020 Miniature Circuit Breaker 600V 20A

SCHNEIDER ELECTRIC 600-VOLT 20-AMP EDB16020 Miniature Circuit Breaker 600V 20Azoom

Attributes

Key Value
[Ue] Rated Operational .600Y/347 V AC
AC Voltage Rating600VAC
Ambient Air Temperature.40 ?C
Amperage Rating20, 20, 20 A
Amps20
ApplicationNF panelboard;HACR rated
Awg GaugeAWG 12...AWG 6 aluminiu.
BrandSquare D by Schneider E.
Breaking Capacity14 kA 600Y/347 V AC
Breaking Capacity CodeD
Catalog NumberEDB16020
China Rohs RegulationProduct out of China Ro.
Circuit Breaker Applica.HACR rated
ConnectionLugs aluminium;AWG 12...
Connection typeLug
Country of OriginMexico
Country of Origin (subj.Mexico
Depth4.05 in
Device Short NameEDB
Dimensions0.98 in W x 4.05 in D x.
DisplayEDB16020 Mini Circuit b.
Electrical Connectionlugs aluminium
EnclosureNF panelboard
Eu Rohs DirectiveCompliant
FrameE-Frame, E
Frequency Rating50/60, 50/60 Hz, 50/60 .
Height5.66 in, 5.66
Height UOMInch
Holding Current270 A
Interrupt Rating25 KAIC @ 120 VAC 18 KA.
ItemMiniature Circuit Break.
Item Typecircuit-breaker
Length4.05
Length UOMInch
Line Rated Current20 A
Local Signallingtrip indicator
Made in USANo
ManufacturerSchneider Electric
MaterialThermoset Composite Res.
Mercury FreeYes
Module TypeE-Frame
Mounting Modebolt-on
Mounting typeBolted-On, Bolt-On
Net Weight2 lb(US)
Number Of Poles1
Number of Poles1
Number Of Spaces1
Number Of Spaces Requir.1
Operating TemperatureCALIBRATED FOR USE AT 4.
Phase1
Product CertificationsIEC || cULus
Product DestinationNF panelboard
Product Or Component Ty.circuit-breaker
Product TypeMiniature Circuit Break.
Promotion RestrictionNot eligible for promot.
Protection Typeoverload || short-circu.
Range Of Product125 A Frame EDB-EGB-EJB
Reach RegulationReference contains Subs.
Rohs Exemption Informat.Yes
SeriesEDB
Special Featurestrip indicator
StandardUL LISTED - CSA CERTIFI.
Sub BrandEDB
Temperature Rating (Deg.40, 40 deg C
Tightening Torque3.4-3.4 N.m 2.5-16 mm? .
Trip Range270 to 875, 270 to 875 .
Trip Typethermal-magnetic, Therm.
Trip Unit Rating875-875 A
Trip Unit Technologythermal-magnetic
TypeStandard
UPC785901238249
Voltage Rating600Y/347 V AC, 600, 600.
Warranty18 months
Warranty DescriptionContractual Warranty:18.
Width0.98 in, 0.98
Width UOMInch
Wire Size14 to 6 AWG, 12 to 6 AWG

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
simplybreakers.comEDB1602072.991In StockSchneider Electric72.99 @ 1
thumbzoomstandardelectricsupply.com2322698123.041In StockSquare D (Schneider Electric)123.04 @ 1
thumbzoomgordonelectricsupply.comEDB16020132.091In Stock10SQUARE D132.09 @ 1
thumbzoomZoroG0845461133.591In Stock45Square D1.1133.59 @ 1
thumbzoommayerelectric.comSQDEDB16020145.141In StockSQUARE D2.0145.14 @ 1
thumbzoomRadwellEDB16020150.0129SCHNEIDER ELECTRIC SQUARE D150.0 @ 1
thumbzoomcrescentelectric.com518992156.841In StockSquare D by Schneider Electric156.84 @ 1
Newark89H4062169.641In StockSQUARE D BY SCHNEIDER ELECTRIC169.64 @ 1
thumbzoomsustainablesupply.comC3045398177.21In StockSquare D1.1177.2 @ 1
