- mpn6JS
- brandname: TB Woods
- manufacturername: TB Woods

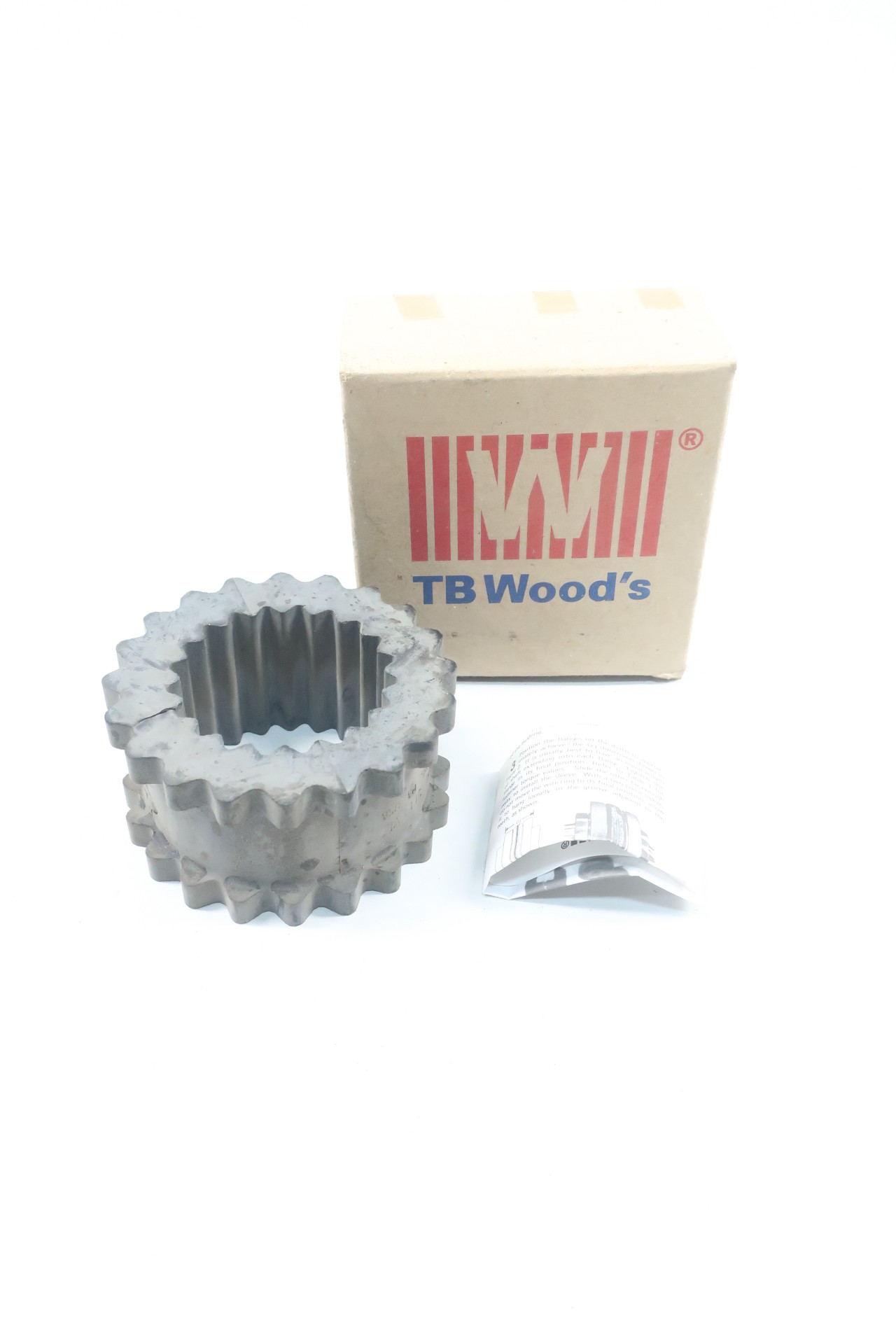

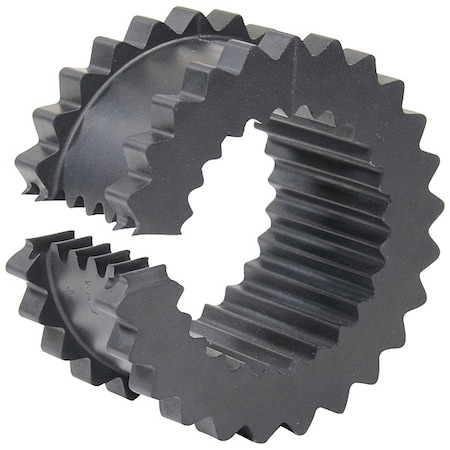

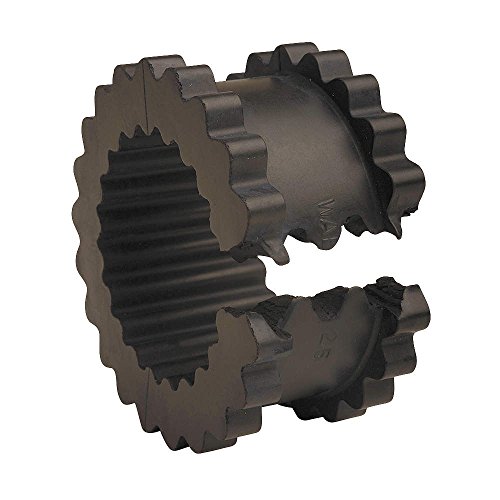

Sleeve Coupling Insert, 6Jes, Epdm Rubber
- Brand: TB Woods
- PartNumber: 6JS
- Model: 32ZP65
- PackageQuantity: 1
- Binding: Misc.
- Manufacturer: TB WOOD'S
- Label: TB WOOD'S
Attributes
| Key | Value |
|---|
| Application | Motors, Pumps, Compress. |
| Body Style | 6JES |
| Brand | Tb Woods |
| Component WR2 (lbs ft2) | 0.0052 |
| Component WR? | 0.0052 |
| Coupling size | 6 |
| Current Stock | 397 |
| Dimension (in) (D) | 3 3/4 |
| Dimension (in) (W) | 1-7/8 |
| Flange Type - Sleeve Co. | JES |
| Horsepower Rating at 10. | 7 |
| Horsepower rating at 11. | 7 |
| Horsepower rating at 12. | 7 |
| Horsepower rating at 17. | 7 |
| Horsepower rating at 18. | 7 |
| Horsepower rating at 30. | 7 |
| Horsepower rating at 34. | 7 |
| Horsepower rating at 36. | 7 |
| Horsepower rating at 50. | 7 |
| Horsepower rating at 69. | 7 |
| Horsepower rating at 87. | 8.1 |
| HP Rating @ 100 RPM | 0.93 hp, 0.93 |
| HP Rating @ 1200 RPM | 11.14, 11.14 hp |
| HP Rating @ 1800 RPM | 16.71, 16.71 hp |
| HP Rating @ 3600 RPM | 33.42 hp, 33.42 |
| Insert Design | One-Piece Split |
| Insert design | One-Piece Split |
| Insert Design - Couplin. | One-Piece Split |
| Insert Material | EPDM Rubber |
| International Shipping | No |
| Item | Sleeve Coupling Insert |
| Item - Sleeve Coupling . | Sleeve Coupling Insert |
| KW rating at 100 RPM | 0.69 |
| KW rating at 1450 RPM | 10 |
| KW rating at 3000 RPM | In Stock |
| KW rating at 970 RPM | 6.7 |
| Lead Time | Expected to ship in 1-2. |
| Material - Inserts | EPDM Rubber |
| Material type | EPDM |
| Max angular gap misalig. | 0.070 in |
| Max angular misalignment | 1? |
| Max compatible bore size | 1.875 |
| Max parallel misalignme. | 3 |
| Max RPM | 6000 |
| Max speed | 6000 |
| Max. RPM | 6,000 RPM, 6000, 6,000 |
| Maximum angular gap mis. | 0.07 |
| Maximum parallel misali. | 0.015 |
| Min compatible bore size | 0.625 |
| Mpn | 6JS |
| Operating Temp. | -30 Degrees to 275 Deg. |
| Operating temperature | -34?C to +135?C |
| Outside Dia. | 3.75", 3.75 in |
| Outside diameter | 3.75 |
| Package Quantity | 1 |
| Power rating at 100 RPM | 0.69 kW |
| Rated Torque | 585 in.-lbs., 585 in-lb. |
| Screw type | Sleeve, One-Piece with . |
| Size - Sleeve Couplings | 6 |
| SKU | ZO-G8512445 |
| Sleeve width | 1.875 |
| Stiffness | 194 |
| Stiffness (in lbs rad) | 1718 |
| SubCategory | Power Transmission |
| Temperature rating | -30?F to 275?F |
| Temperature rating (F) | +275?F to -30?F |
| Torque | 585 in-lb |
| Torque rate | 66 |
| Torque rating (in lbs) | 450 |
| Torsional stiffness | 1718 |
| UPC | 698672630108 |
| UPC Code | 698672920414 |
| Width | 1.88", 1.88 in |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | MRO Supply | 336872 | 27.81 | 3 | In Stock | | TB Woods | | 27.81 @ 3 |
| AmazonTP | B01MG5NRGL | 29.78 | 1 | In Stock | 3 | Tb Wood'S | | 29.78 @ 1 |
 | Zoro | G8512445 | 31.85 | 1 | 677 | | Tb Woods | 0.44 | 31.85 @ 1 |
| grainger.ca | WWG32ZP65 | 38.05400858 | 1 | In Stock | | TB WOOD'S | 0.44 | 38.05400858 @ 1 |
 | NRI Industrial | D732605 | 40.77 | 1 | In Stock | | TB WOODS | | 40.77 @ 1 |
| us.rs-online.com | 71722639 | 41.43 | 1 | 2 | | TB Wood's (Altra) | | 41.43 @ 1 |
 | sustainablesupply.com | C1677778 | 43.94 | 1 | In Stock | | TB Wood's | 0.44 | 43.94 @ 1 |
 | simsupply.com | ZO-G8512445 | 44.14 | 1 | 397 | | Tb Woods | | 44.14 @ 1 |
| Grainger | 32ZP65 | 47.3 | 1 | 26 | | TB WOOD'S | 0.44 | 47.3 @ 1 |
 | National Supply Network | 53901864 | 54.59 | 1 | In Stock | | TB Wood's | | 54.59 @ 1 |
 | bscsource.com | 53901864 | 61.39 | 1 | In Stock | | TB Wood's | | 61.39 @ 1 |
 | Raptor Supplies | AG3EDG | 61.521291 | 1 | In Stock | | TB WOOD'S | | 61.521291 @ 1 |
