TB Woods L050N

mpnL050N
brandname: TB Woods
manufacturername: TB Woods

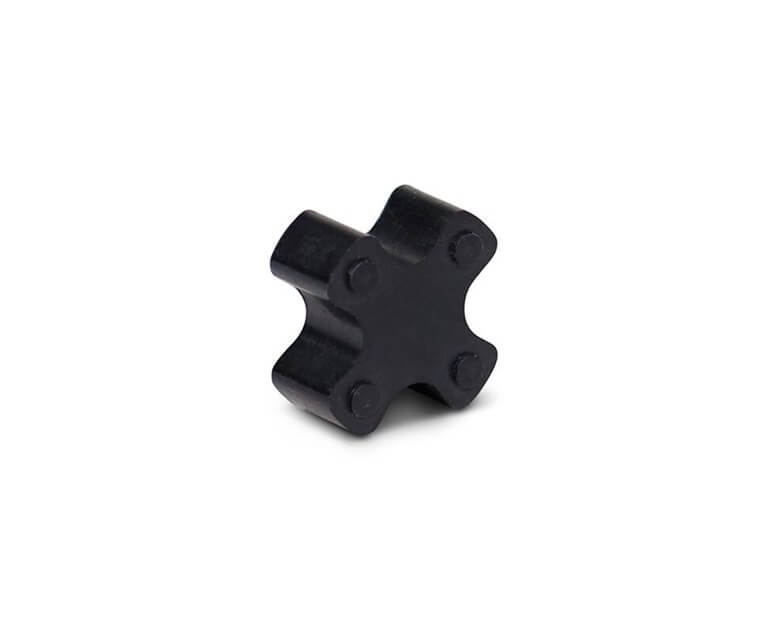

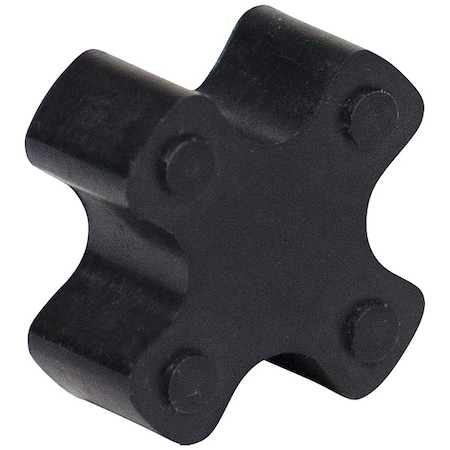

TB WOOD'S L050N L JAW SPIDER, FACTORY NEW!

TB WOOD

zoom

Brand: TB Woods
PartNumber: L050N
Model: L050-N
PackageQuantity: 1
Binding: Misc.
Manufacturer: TB Woods
Label: TB Woods

Attributes

Key	Value
Accommodates	1 Degrees Angular and .
Brand	Tb Woods
c	0.47
Center hole	Solid
Chemical resistance	Poor
Color	Black
Coupling Size	L050
Coupling size	L050
Current Stock	797
Dimension (in.) (OD)	1.065
Element durometer	80A
Element material	Buna-N
Element thickness	0
Element type	Solid Center Spider
Flexibility	Excellent
Height (In.)	0.42 in
Horsepower Rating at 10.	33
HP Rating @ 100 RPM	0.04
HP Rating @ 1200 RPM	0.5
HP Rating @ 1800 RPM	0.8
HP Rating @ 300 RPM	0.1
HP Rating @ 3600 RPM	1.5
International Shipping	No
Item	Buna N Spider Insert
Item - Jaw Coupling Spi.	Jaw Coupling Insert
Jaw type	Straight
Length (In.)	1.06 in
ltb	0.63
Material	Nitrile (Buna-N)
material	Buna-N Spider
Material - Spiders	Buna N
Material type	Buna-N, Black
Max angular misalignment	1?
max bore	5/8
Max compatible bore size	0.625
Max parallel misalignme.	0.015
max rpm	18000
Max speed	18000
Max. Bore (In.)	0.625
Max. RPM	18,000 RPM
Max. Torque (In.-Lbs.)	26
Min compatible bore size	0.25
Mpn	L050N
O.D.	1.07
oal	1.72
od	1.08
Oil resistance	Good
Overall length	1.72
Package Quantity	1
Power rating at 100 RPM	0.0042 HP
Product family	L-Jaw Spider
Rated Torque	26 in-lb
Serviceable Temp. Range.	-40 to 212
Size	L050
Size - Jaw Couplings	L050
Size code	50
SKU	ZO-G3399042
SubCategory	Power Transmission
Temp. Range	-40 Degrees to 212 Deg.
Temperature rating	-40?F to 212?F
Thickness	0.415
Thickness (in)	0.415
Torque	26 in-lb
Torque (In.-Lbs.)	26
torque in lbs	26
Torsional stiffness	Soft
Type	Buna N Spider, Spider -.
UPC	698672000031
UPC Code	698672000031
Width (In.)	1.06 in

All Prices

Img	Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Weight	Preferred Tier
	MRO Supply	337026	2.67	25	37		TB Woods		2.67 @ 25
	Zoro	G3399042	2.75	1	2499		Tb Woods	0.01	2.75 @ 1
	sustainablesupply.com	C1662732	3.08	1	37		TB Wood's	0.01	3.08 @ 1
	us.rs-online.com	71655328	3.56	1	100		TB Wood's (Altra)		3.56 @ 1
	motionindustries.com	00516336	4.32	1	37		TB Woods (Altra)		4.32 @ 1
	Raptor Supplies	AB4CVQ	5.028075	1	37		TB WOODS		5.028075 @ 1
	AmazonTP	B071F32FTR	6.18	1	37	3	TB Woods		6.18 @ 1
	simsupply.com	ZO-G3399042	9.15	1	797		Tb Woods		9.15 @ 1
