TE Raychem 102789-000

B07NQTWHJV

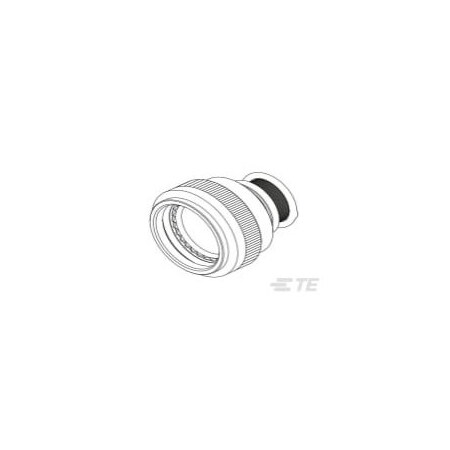

TE Raychem Connector

TE Raychem Connectorzoom

Attributes

Key Value
Accepts Cable Diameter .9.53 mm[.375 in]
Adapter AngleStraight
Adapter Entry Size6
Adapter Plating MaterialCadmium (SAE AMS-QQ-P-4.
Adapter Underplating Ma.Suitable Material per S.
Backshell MaterialAluminum Alloy
Base Product NumberTX40AB00
Cable Exit180?
Cable Opening-
CategoryConnectors, Interconnec.
ColorOlive Drab
Connector Detail Specif.D38999/20, D38999/24, D.
Connector General Speci.MIL-DTL-38999 Series II.
Connector Shell Size13,C
Connector SystemCable-to-Cable
Diameter - Outside0.965" (24.50mm)
FeaturesTinel Lock
For Use With/Related Pr.MIL-DTL-38999 Series II.
Includes2 pcs - 1 Backshell, 1 .
Ingress ProtectionEnvironment Resistant
MaterialAluminum Alloy
Material Flammability R.-
MfrTE Connectivity Aerospa.
PackageBulk
Package Quantity1
Part StatusActive
PlatingCadmium
SealableYes
SeriesTXR
Shell Size - Insert13, C
ShieldingUnshielded
TE Adapter Code40
TE Connector Interface .40
Termination Device TypeSide-Entry Tinel-Lock R.
Thread SizeM18x1
TypeBackshell, Heat Shrink .

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
Digi-Key530915695.5966727In StockTE Connectivity Aerospace, Defense and Marine95.59667 @ 27
Newark44M3512104.2427In StockRAYCHEM - TE CONNECTIVITY104.24 @ 25
WaldomTE CONNECTIVITY RAYCHEM TX40AB00-1206111.93142TE CONNECTIVITY / RAYCHEM111.93 @ 14
thumbzoomZoroG700963107149.991In StockRaychem149.99 @ 1
