TE Connectivity / AMP 5794172-5

B07KWJWY9G

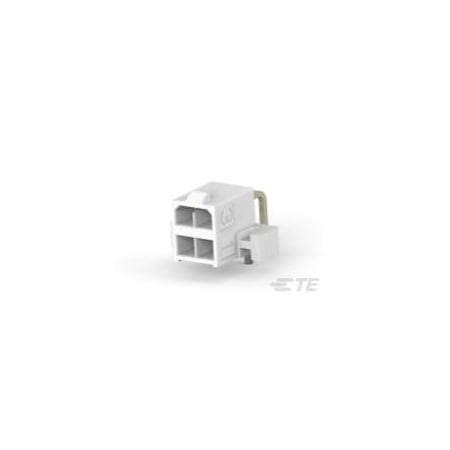

5794172-5, Conn Wire to Board M 4 POS 4.2mm Solder RA Thru-Hole (5 Items)

5794172-5, Conn Wire to Board M 4 POS 4.2mm Solder RA Thru-Hole (5 Items)zoom

Attributes

Key Value
Applications-
Base Product Number5794172
CategoryConnectors, Interconnec.
Connector TypeHeader
Contact Finish - MatingGold
Contact Finish - PostTin
Contact Finish Thicknes.30.0?in (0.76?m)
Contact Finish Thicknes.-
Contact Length - Mating0.205" (5.21mm)
Contact Length - Post0.138" (3.50mm)
Contact MaterialBrass
Contact ShapeSquare
Contact TypeMale Pin
Country of Origin (subj.Mexico
Current Rating (Amps)-
DescriptionCONN HEADER R/A 4POS 4..
Detailed DescriptionConnector Header Throug.
Digi-Key Part NumberA117710-ND
Fastening TypeLocking Ramp
FeaturesMounting Flange
Ingress Protection-
Insulation ColorNatural
Insulation Height0.461" (11.70mm)
Insulation MaterialPolybutylene Terephthal.
ManufacturerTE Connectivity AMP Con.
Manufacturer Product Nu.5794172-5
Mated Stacking Heights-
Material Flammability R.UL94 V-0
MfrTE Connectivity AMP Con.
Mounting TypeThrough Hole, Right Ang.
Number of Positions4
Number of Positions Loa.3
Number of Rows2
Operating Temperature-55?C ~ 105?C
Overall Contact Length-
PackageBulk
Pitch - Mating0.165" (4.20mm)
Product StatusObsolete
Row Spacing - Mating0.217" (5.51mm)
SeriesAMP-DUAC
ShroudingShrouded - 4 Wall
StyleBoard to Board or Cable
TerminationSolder
Voltage Rating600VAC

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
WaldomTE CONNECTIVITY AMP BRAND 5794172-53.1520997TE CONNECTIVITY/AMP BRAND3.15 @ 25
thumbzoomZoroG7009406104.27325Te Connectivity4.27 @ 25
thumbzoomDigi-Key47309504.5418997TE Connectivity AMP Connectors4.54 @ 25
Newark36AC62625.421997AMP - TE CONNECTIVITY5.42 @ 25
Onlinecomponents.com5794172-510.4211000TE Connectivity / AMP Brand10.42 @ 25
