Raychem (TE Connectivity) RTD-75-S-00

B00KSWOAH4

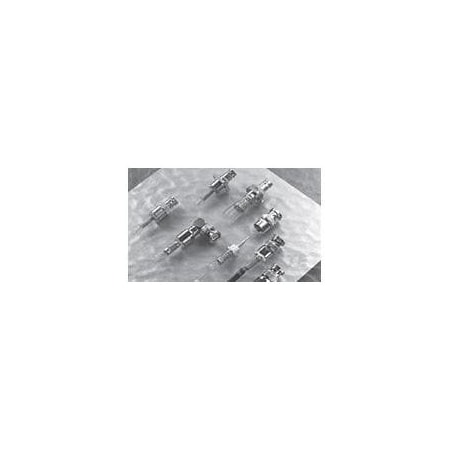

Raychem (TE Connectivity) Part Number RTD-75-S-00

Raychem (TE Connectivity) Part Number RTD-75-S-00zoom

Attributes

Key Value
Alternate Part No.650-RTD-75-S-00
Base Product NumberRTD-75
Body FinishNickel
Body MaterialBrass
BrandTE Connectivity / Raych.
Cable Clamping MethodSolder
Cable GroupRaychem 7530A1317
Cable TypeRG-179, RG-187
CategoryConnectors, Interconnec.
Center Contact MaterialBrass
Center Contact PlatingGold
Connector StyleTNC
Connector TypePlug, Male Pin
Contact MaterialBrass
Contact PlatingGold
Contact TerminationSolder
Dielectric MaterialPolytetrafluoroethylene.
Fastening TypeThreaded
Features-
Frequency - Max4 GHz
GenderPlug
Housing ColorSilver
Impedance75 Ohms, 75Ohm
Includes-
Ingress Protection-
Insertion Loss-
Insulation Resistance5000 MOhms
ManufacturerTE Connectivity
Manufacturer Part No.RTD-75-S-00
MaterialBrass
Mating Cycles-
Maximum Frequency2.8 GHz
MfrTE Connectivity Aerospa.
Mounting Feature-
Mounting TypeFree Hanging (In-Line)
Number of Ports1
Operating Temperature-55?C ~ 100?C
Operating Temperature R.- 55 C to + 150 C
OrientationStraight
PackageBulk
Part # Aliases196799-000
Part StatusActive
PolarityStandard
ProductConnectors
Product CategoryRF Connectors / Coaxial.
RF SeriesTNC
Series-
Shield TerminationSolder
Style - ConnectorStraight
Termination StyleSolder
TypePlug, TNC
Use With - Nonmetallic .RG 179,RG 187
Voltage Rating500 V

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
Allied ElectronicsE519426929.750In StockTE Connectivity29.7 @ 50
Onlinecomponents.comRTD-75-S-0030.36152TE Connectivity / Raychem Brand30.36 @ 1
Digi-Key540233839.32465In StockTE Connectivity Aerospace, Defense and Marine39.324 @ 65
Newark43M849547.2765In StockRAYCHEM - TE CONNECTIVITY47.27 @ 50
thumbzoomswatee.comRTD-75-S-0054.09126TE Connectivity54.09 @ 1
thumbzoomZoroG805932114103.981In StockRaychem103.98 @ 1
