TE Connectivity EDS02SGRNTU04Q

B0971RPR51

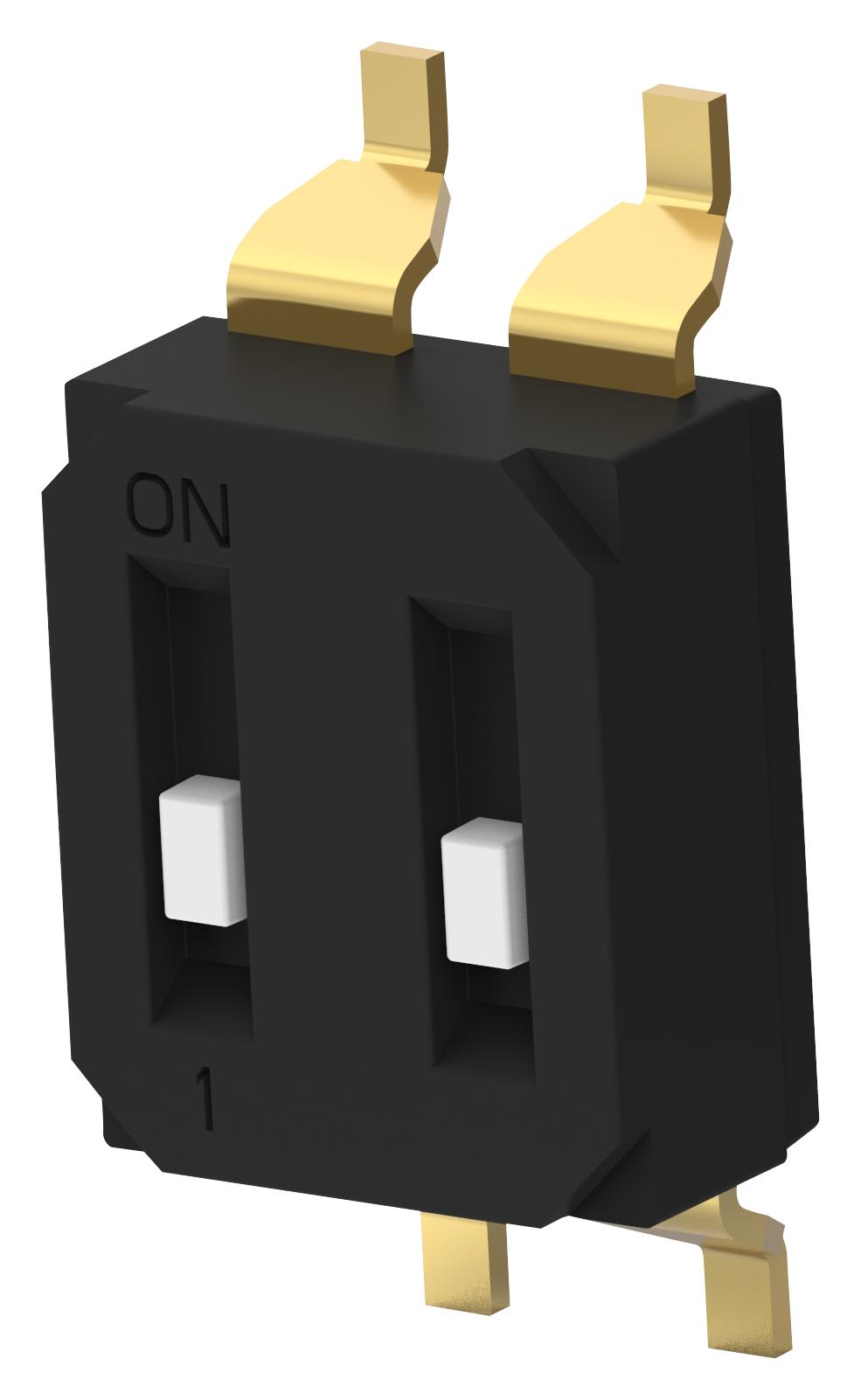

Switch DIP Off ON SPST 2 Recessed Slide 0.025A 24VDC Gull Wing 2000Cycles 2.54mm SMD Tube

Switch DIP Off ON SPST 2 Recessed Slide 0.025A 24VDC Gull Wing 2000Cycles 2.54mm SMD Tubezoom

Attributes

Key Value
Actuator ColorWhite
Actuator LevelFlush, Recessed
Actuator TypeSlide (Standard)
Alternate Mfr Part Numb.2319848-2
Base Product NumberEDS02
Body MaterialPolyamide (PA), Nylon
CategorySwitches
Centerline2.54?mm?[?.1?in?]
CircuitSPST
Configuration (Pole-Thr.Single Pole - Single Th.
Contact FinishGold
Contact MaterialCopper Alloy
Contact Mating Area Pla.Gold Flash
Country of Origin (subj.China
Current Rating (Amps)25mA
Electrical Life2,000 Cycles
Features-
Height3.4?mm?[?.134?in?]
Height Above Board0.134" (3.40mm)
Housing ColorBlack
Housing MaterialHigh Temperature Nylon
Length4.98?mm?[?.196?in?], 0..
Mechanical Life2,000 Cycles
MfrTE Connectivity ALCOSWI.
Mounting AngleVertical
Mounting TypeSurface Mount
Number of Positions2
Number of Switches2
Operating Temperature-20?C ~ 85?C
Operating Temperature R.-20 ? 85
PackageTube
Packaging MethodTube
Packaging Quantity95
Pitch0.100" (2.54mm), Full
Product StatusActive
Product TypeSwitch
SealedNo
SeriesEDS
Shunt TypeDIP
Solder Tail Contact Pla.Gold Flash over Nickel
Switch TypeDIP Switch
Termination StyleGull Wing
Voltage Rating24, 24VDC
WashableNo

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
WaldomTE CONNECTIVITY ALCOSWITCH EDS02SGRNTU04Q0.74751045TE CONNECTIVITY / ALCOSWITCH0.74 @ 100
us.rs-online.com720351300.971045100TE Connectivity0.97 @ 1045
Digi-Key79315921.310311052TE Connectivity ALCOSWITCH Switches1.3103 @ 100
RS Delivers223-39641.32121855TE Connectivity1.3212 @ 100
thumbzoomZoroG5058131401.37570100Te Connectivity1.37 @ 570
thumbzoomNewark38AC10111.661601ALCOSWITCH - TE CONNECTIVITY1.66 @ 100
