TE Connectivity 1658694-3

B00KSNHOB2

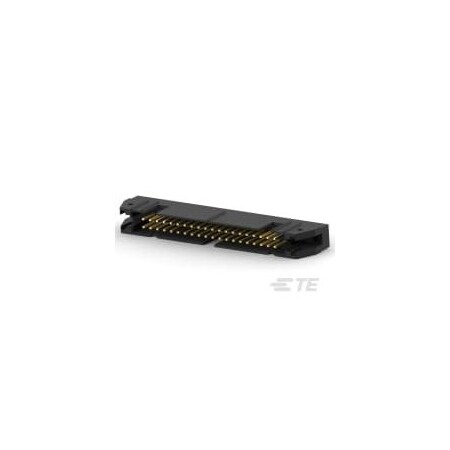

TE Connectivity Part Number 1658694-3

TE Connectivity Part Number 1658694-3zoom

Attributes

Key Value
Applications-
Base Product Number1658694
CategoryConnectors, Interconnec.
Connector TypeHeader
Contact Finish - MatingGold or Gold-Palladium
Contact Finish - PostTin
Contact Finish Thicknes.30.0?in (0.76?m)
Contact Finish Thicknes.100.0?in (2.54?m)
Contact Length - Mating0.240" (6.10mm)
Contact Length - Post0.174" (4.42mm)
Contact MaterialPhosphor Bronze
Contact ShapeSquare
Contact TypeMale Pin
Country of Origin (subj.China
Current Rating (Amps)1A per Contact
DescriptionCONN HEADER VERT 40POS .
Detailed DescriptionConnector Header Throug.
Digi-Key Part NumberAHA40B-ND
Fastening TypePush-Pull
FeaturesKeying Slot, Mounting F.
Ingress Protection-
Insulation ColorBlack
Insulation Height0.549" (13.94mm)
Insulation Material-
ManufacturerTE Connectivity AMP Con.
Manufacturer Product Nu.1658694-3
Manufacturer Standard L.12 Weeks
Mated Stacking Heights-
Material Flammability R.UL94 V-0
MfrTE Connectivity AMP Con.
Mounting TypeThrough Hole
Number of Positions40
Number of Positions Loa.All
Number of Rows2
Operating Temperature-65?C ~ 105?C
Overall Contact Length0.703" (17.86mm)
PackageBulk
Pitch - Mating0.100" (2.54mm)
Product StatusActive
Row Spacing - Mating0.100" (2.54mm)
SeriesAMP-Latch
ShroudingShrouded - 4 Wall
StyleBoard to Cable/Wire
TerminationPress-Fit, Solder
Voltage Rating-

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
Future Electronics81178134.4452027TE Connectivity4.44 @ 520
Onlinecomponents.com1658694-34.491336TE Connectivity / AMP Brand4.49 @ 1
thumbzoomNewark42K67137.53520In StockAMP - TE CONNECTIVITY7.53 @ 520
thumbzoomZoroG80093867810.18260In StockTe Connectivity10.18 @ 260
AmazonSCB00MEK359214.61In StockTE Connectivity %2F AMP0.00062514.6 @ 1
thumbzoomDigi-Key76567122.7281In StockTE Connectivity AMP Connectors22.728 @ 1
